100S-E16EJ14C, IEC 16 A Safety Contactor

MXN $7,722.00 - (IVA Incluido) + Envío

2 disponibles

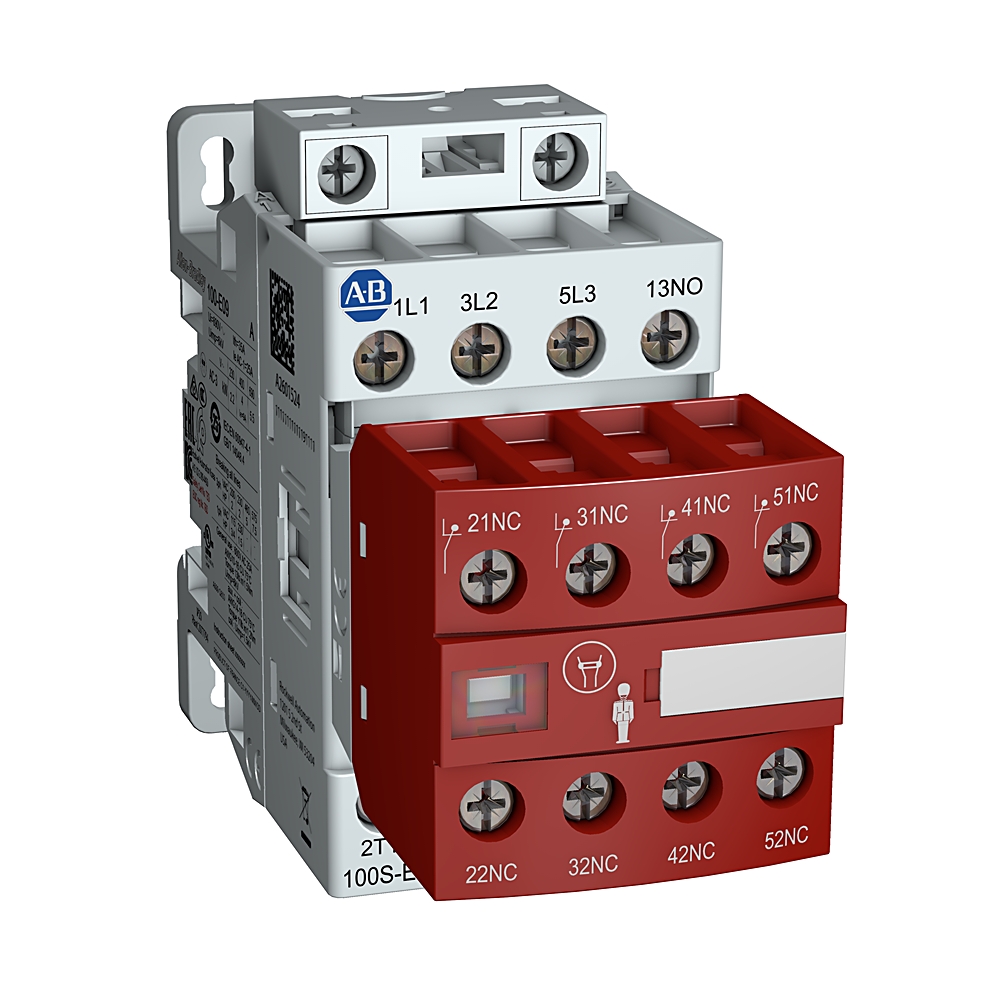

IEC 16 A Safety Contactor

Comprar Ahora
SKU: 100S-E16EJ14C
Number of auxiliary contacts as normally open contact 1
Number of auxiliary contacts as normally closed contact 4
Vibration resistance IEC 60068-2-6
Shock resistance IEC 60068-2-27
Altitude, max 3000 m of installation site
Switching frequency, max 600 ops/hr, AC-1
Weight AC/DC (electronic): 0.43 kg (0.95 lbs.)
Protection class Contactor main contact: IP2X
Voltage type for actuating AC/DC
Rated control supply voltage at AC 50 Hz 24 V
Rated control supply voltage at AC 60 Hz 24 V
Rated control supply voltage at DC 20 V
Type of electrical connection of main circuit Screw connection
Rated impulse voltage withstand (Uimp) 6 kV
Operating time, closing delay 40 ms
Operating time, opening delay 11 ms
Main current circuit resistance 0.36 mΩ
Rated isolation voltage (Ui) 690V per IEC
Function Non-reversing safety contactor
Energy-efficient coil, hold-in 1.7VA/1.7 W @ 24-60V AC, 20-60V DC
Energy-efficient coil, pick-up 16VA/12…16 W @ 24-60V AC, 20-60V DC
General purpose current (enclosed) 20A @ 600V per UL/CSA
Power dissipation 1.2 W per pole at Ie, AC-1, 400V
Short time withstand (Icw) 3-pole: 80A @ 30s (40 °C)
FLA 30A @ 600V, 3-phase per UL/CSA HVAC applications
Rated operational current and power (enclosed) 5 Hp @ 220-240V, 3-phase per UL/CSA
LRA 180 A @ 440-480V AC, 3-phase per UL/CSA HVAC applications
Electromagnetic compatibility IEC 60947-1 – Environment A and B (100-E09…E38 only.)
Total power dissipation 3.05 W at Ie, AC-3, 400V, AC/DC control (120-250V)
Operating limits, dropout (≤0.60) x Us @ DC control
Rating for switching AC motors 3-poles: 9 kW @ 690V, AC-2, AC-3 (50 Hz)
Operating limits, pick-up (0.85…1.1) x Us @ 50/60 Hz
MCCB current rating Type 2 (per IEC 60947-4-1): 28A @ 400V, 70 kA available fault current
DIN fuses (gG) current rating Type 2 (per IEC 60947-4-1): 35A @ 400V, 100 kA available fault current
Rated voltage (Ue) 24V @ 48V, 110V @ 220V, 440V DC
Switching of lighting loads Tungsten lA: 30A @ 600V, 3-phase (break all lines) per UL/CSA
UL class RK5 fuses rating Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 60A @ 600V, 5 kA available fault current
Rated operational current (Ie) 3-poles: 30A @ 40°C, AC-1 (690V)
UL class J and CSA HRCI-J fuses rating Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 60A @ 600V, 100 kA available fault current
UL inverse-time circuit breaker Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 60A @ 600V, 10 kA available fault current
Switching of power transformers Apparent power: 9 kVA @ 208V @ 60Hz (n = 20)
Rated operational power (Pe) 9 kW @ 690V, AC-2, AC-3 switching of 3-phase motors (50 Hz), ambient temperature 60 °C (140 °F)
Switching of DC loads 3-poles in series: 30A @ 220V (Shunt-wound motors starting, reverse current breaking, reversing, stepping DC-3 at 60 °C)
Optional accessories Side-mount auxiliary contacts, Mechanical interlocks
Features Mirror contact performance on auxiliary contacts, Red N.C. low-power auxiliary contacts used for ftdback circuit, SUVA third-party certification, AC/ DC operating coils, Mirror contact symbol on front
Climatic withstand Category B according to IEC 60947-1, annex Q
Ambient temperature Storage: -60…80 °C (-76…176 °F)
Coil insulation class Class F per IEC 60947-4-1
Sales Info

Repairable NOT_REPAIRABLE
Preferred Availability true
Quick Turnaround false
Dimension Height 4.826
Lead Time 5
Dimension Width 8.382
Dimension Length 11.43
Stock Status STOCKED
Weight 0.385
Weight Unit KG
Dimension Unit CM
Peso 0.385 kg
Dimensiones 11.43 × 8.38 × 4.82 cm
