100S-E26EJ22C, IEC 26 A Safety Contactor

MXN $9,425.00 - (IVA Incluido) + Envío

Sin existencias

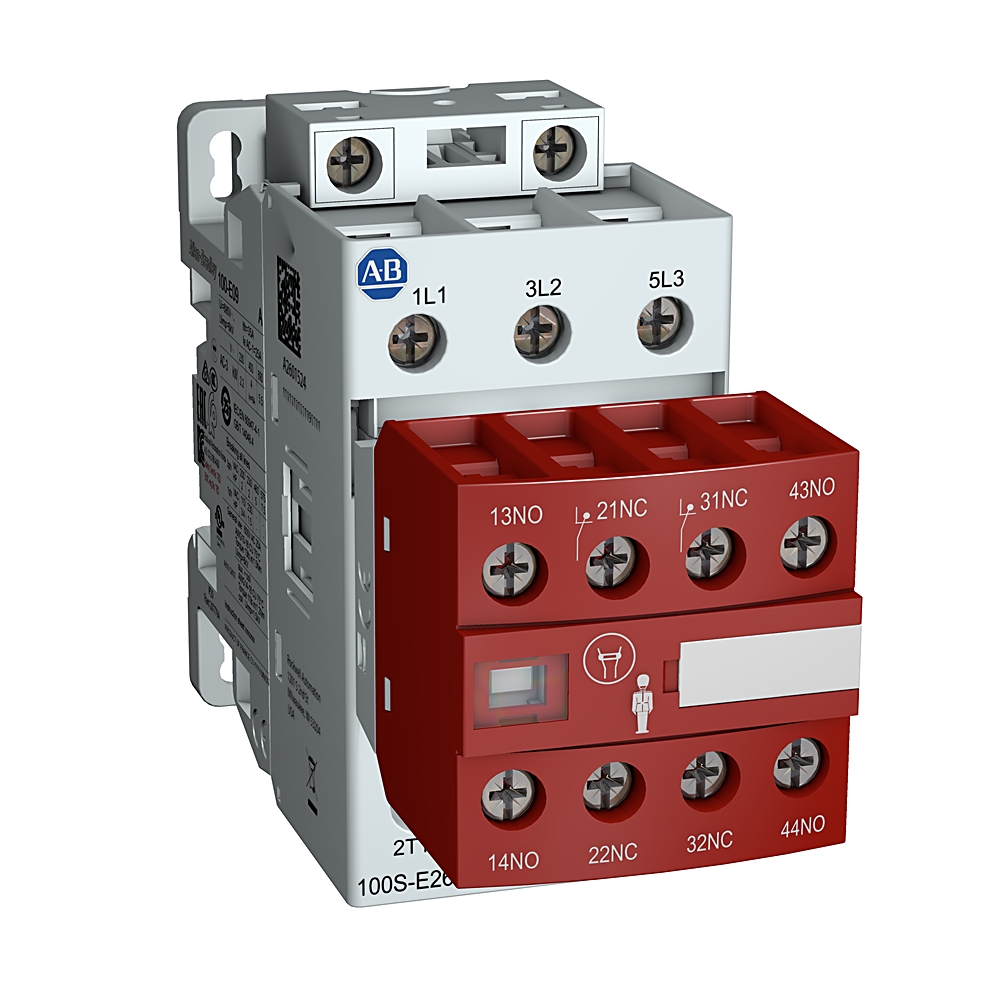

IEC 26 A Safety Contactor

SKU: 100S-E26EJ22C

Technical Specifications

Mechanical

Number of auxiliary contacts as normally open contact 2
Number of auxiliary contacts as normally closed contact 2
Length Approx 45 mm
Vibration resistance IEC 60068-2-6
Shock resistance IEC 60068-2-27
Height Approx 86 mm
Width Approx 86 mm
Altitude, max 3000 m of installation site
Switching frequency, max 600 ops/hr, AC-1
Weight AC/DC (electronic): 0.48 kg (1.06 lbs.)
Protection class Contactor main contact: IP2X

Electrical

Voltage type for actuating AC/DC
Rated control supply voltage at AC 50 Hz 24 V
Rated control supply voltage at AC 60 Hz 24 V
Rated control supply voltage at DC 20 V
Type of electrical connection of main circuit Screw connection
Rated impulse voltage withstand (Uimp) 6 kV
Operating time, closing delay 40 ms
Operating time, opening delay 11 ms
Main current circuit resistance 0.3 mΩ
Rated isolation voltage (Ui) 690V per IEC
Function Non-reversing safety contactor
Energy-efficient coil, hold-in 1.7VA/1.7 W @ 24-60V AC, 20-60V DC
Energy-efficient coil, pick-up 16VA/12…16 W @ 24-60V AC, 20-60V DC
General purpose current (enclosed) 24 A @ 600V per UL/CSA
Power dissipation 1.8 W per pole at Ie, AC-1, 400V
Short time withstand (Icw) 3-pole: 700 A for 1 s (40 °C)
FLA 45 A @ 600V, 3-phase per UL/CSA HVAC applications
Rated operational current and power (enclosed) 7.5 Hp @ 220-240V, 3-phase per UL/CSA
LRA 270 A @ 440-480V AC, 3-phase per UL/CSA HVAC applications
Electromagnetic compatibility IEC 60947-1 – Environment A and B (100-E09…E38 only.)
Total power dissipation 3.8 W at Ie, AC-3, 400V, AC/DC control (120-250V)
Operating limits, dropout (≤0.60) x Us @ DC control
Rating for switching AC motors 3-poles: 7.5 Hp @ 230V, AC-2, AC-3 (60 Hz)
Operating limits, pick-up (0.85…1.1) x Us @ 50/60 Hz
MCCB current rating Type 2 (per IEC 60947-4-1): 56 A @ 400V, 70 kA available fault current
DIN fuses (gG) current rating Type 2 (per IEC 60947-4-1): 62 A @ 400V, 100 kA available fault current
Rated voltage (Ue) 24V, 48V, 110V, 220V, 440V DC
Rated operational current and power 9.6 A @ 230V AC, 500000 electrical operations, 1-phase per UL/CSA elevator duty
Switching of lighting loads Tungsten lamps: 45 A @ 600V, 3-phase (break all lines) per UL/CSA
UL class RK5 fuses rating Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 60 A @ 600V, 5 kA available fault current
Rated operational current (Ie) 45 A @ 690V, AC-1 active power load (50/60 Hz), ambient temperature 40 °C (104 °F)
UL class J and CSA HRCI-J fuses rating Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 60 A @ 600V, 100 kA available fault current
UL inverse-time circuit breaker Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 100 A @ 600V, 25 kA available fault current
Switching of power transformers Apparent power: 9 kVA @ 200V, 60 Hz (n = 30)
Rated operational power (Pe) 6.5 kW @ 220-240V, AC-2, AC-3 switching of 3-phase motors (50 Hz), ambient temperature 60 °C (140 °F)
Switching of DC loads 3-poles in series: 45 A @ 220V (Shunt-wound motors starting, reverse current breaking, reversing, stepping DC-3 at 60 °C)
Optional accessories Side-mount auxiliary contacts, Mechanical interlocks
Features Mirror contact performance on auxiliary contacts, Red N.C. low-power auxiliary contacts used for feedback circuit, SUVA third-party certification, AC/ DC operating coils, Mirror contact symbol on front

Environmental

Climatic withstand Category B according to IEC 60947-1, annex Q
Ambient temperature Storage: -60…80 °C (-76…176 °F)

Certification

Coil insulation class Class F per IEC 60947-4-1
Peso 1.451 kg
Dimensiones 16.25 × 8.63 × 4.57 cm
Marcas

Allen-Bradley

Marca

Allen-Bradley

Documentation

RESOURCE PUBLICATION NUMBER
Technical Data 100-TD013
