| Snap mounting | True |
|---|---|
| Opening diameter | 2.5 in |
| Mounting included | None |
| Primary rated current | 50 A |
|---|---|
| Secondary rated apparent power | 1.5 VA |
| Current ratio | 50:5 |
| ANSI metering class | 2.4 @ 60 Hz, B0.1 |
| Continuous thermal rating factor | 1.33 @ 30 °C (86 °F) |
| Secondary winding resistance | 0.009 Ω @ 75 °C (167 °F) |
| Core type | Rectangular solid core with round window (single piece) |
| Number of primary inputs | 1 |
| Secondary rated current | 5 A |
| With copper rail | False |
| Accuracy class | Other |
| Secondary connection | Screw connection |

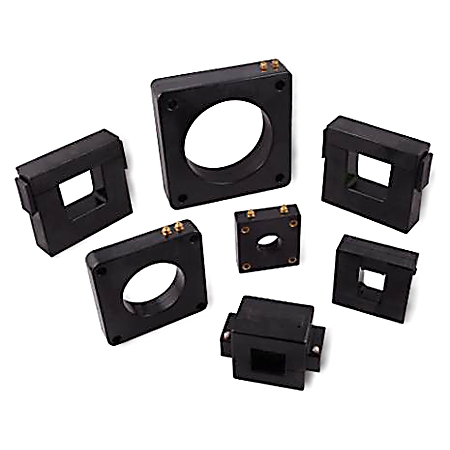

| Model | Single-phase current converter |
| OD shape | Square |
|---|
