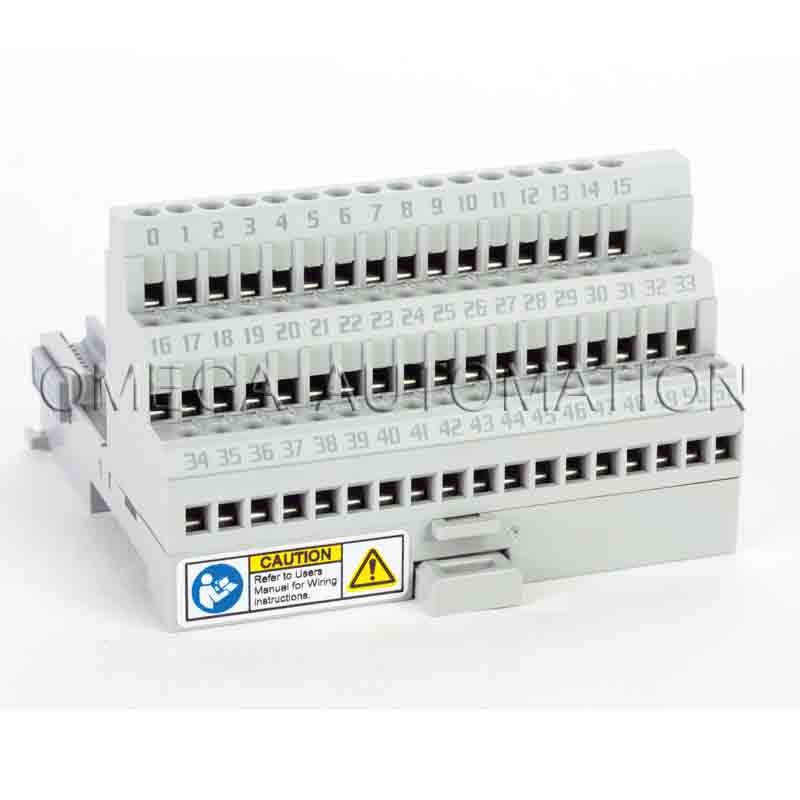

Name: 1440-TB-B, 1440 Series Terminal Base B, Screw clamp base for use with all 1440-xx- 01RB measurement modules, Size (WxDxH): 3 875 x 3.75 x 2.25 inches / 98.4 x 95.3 x 57.2 mm, Temperature Range: -20°C to +65°C, Requires Class 2 21.6 to 26.4Vdc Power Supply
SKU: 1440-TB-B
Availability: OutOfStock

1440-TB-B, 1440 Series Terminal Base B, Screw clamp base for use with all 1440-xx- 01RB measurement modules, Size (WxDxH): 3 875 x 3.75 x 2.25 inches / 98.4 x 95.3 x 57.2 mm, Temperature Range: -20°C to +65°C, Requires Class 2 21.6 to 26.4Vdc Power Supply

MXN $19,176.00 - (IVA Incluido) + Envío

Sin existencias

1440 Series Terminal Base B, Screw clamp base for use with all 1440-xx- 01RB measurement modules, Size (WxDxH): 3 875 x 3.75 x 2.25 inches / 98.4 x 95.3 x 57.2 mm, Temperature Range: -20°C to +65°C, Requires Class 2 21.6 to 26.4Vdc Power Supply

Categoría: Others

Etiqueta: Others

SKU: 1440-TB-B

Technical Specifications

Electrical

Number of slots	1
With integrated power supply	No
Front built-in possible	No
Input voltage at DC	24 V
Type of voltage (input voltage)	DC

Mechanical

Rail mounting possible	Yes
Rack-assembly possible	No
Wall mounting/direct mounting	No
Height	97 mm
Width	94 mm
Depth	94 mm
Terminal screw torque	0.8 Nm
Side connector	Interconnect to adjacent modules passes primary power (3 A max), DeviceNet protocol and power (300 mA max), and the circuits necessary to support expansion modules.

Environmental

Operating temperature	-20 °C
Relative humidity	95% noncondensing
Storage temperature	-40 °C

Construction

Supported XM Modules	XM-220, XM-320

Show More Show Less

Peso	0.338 kg
Dimensiones	13.46 × 13.33 × 9.14 cm
Marcas	Allen-Bradley

Marca

Allen-Bradley

Documentation

RESOURCE	PUBLICATION NUMBER
Technical Data	1440-TD001

Find all available product literature for this product in the Literature Library results.
