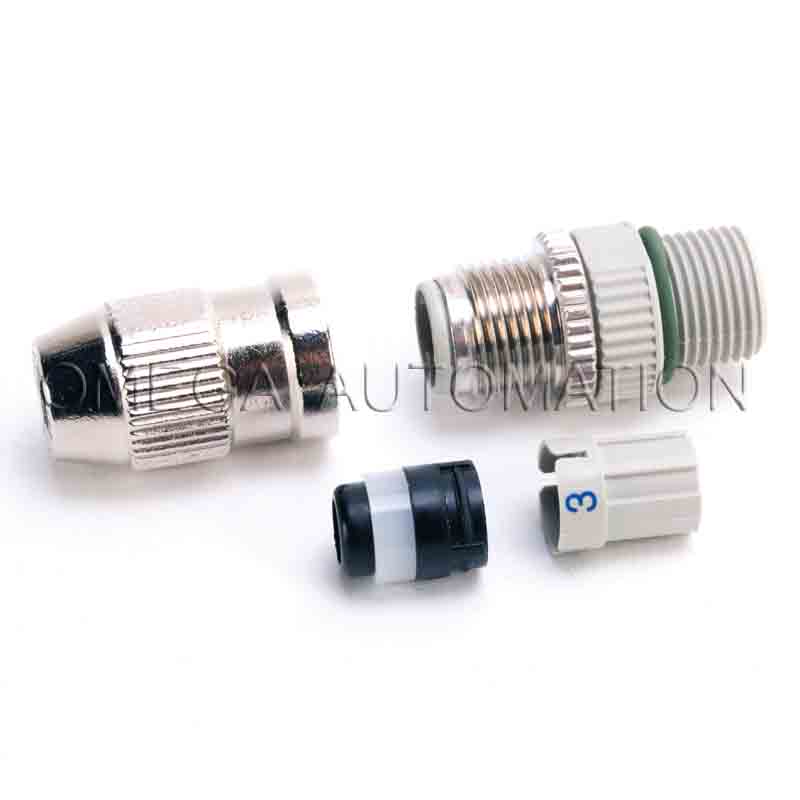

1585D-M4DC-H, Ethernet Media
MXN $1,508.10 - (IVA Incluido) + Envío
16 disponibles
Ethernet Media
Marca:Rockwell Automation
| Number of Pins | 4-pin |
|---|---|
| Product Type | Ethernet Media,Micro Style QD, (D-code QD) |
| Thread Size | — |
| Rated voltage | 32 V |
|---|---|
| Rated current In | 4 A |
| Number of poles | 4 |
|---|---|
| Degree of protection (IP), mounted | IP67 |
| IDC installations, max | 10 x |
| Special characteristic | IDC connector |
| Operating temperature | -25 °C |
|---|---|
| Installation temperature | -5 °C |
| Cable length | No length |
|---|---|
| Length | Male: 51.7 mm, female: 47.8 mm |
| Diameter | Male: 19.5 mm, female: 19.5 mm |
| First end connector style | Straight male |
| Cable type | 4…6 mm, 22 AWG |
| Product type | Micro style QD, (D-code QD) |
| Material | Coupling nut: zinc die-cast, connector shell: zinc die-cast or polyamide, contact: gold-plated brass |
| With thread | True |
| Material of contact surface | Gold |
| Number of pins | 4-pin |
| Second end description | No connector |
| Secondary end connector | No connector, flying leads |
| Conductor outer diameter | Unshielded: 26…22 AWG, 1.0…1.6 mm (0.04…0.063 in), shielded: 24…22 AWG, 1.2…1.6 mm (0.04…0.063 in) |
| Peso | 0.02268 kg |
|---|---|
| Dimensiones | 8.71 × 3.09 × 2.99 cm |
| Marcas | Allen-Bradley |
Marca
Rockwell Automation
| Type | Resource | Publication |
|---|---|---|
| General | Product Cutsheet | -- |
| Technical Data | 1585-td001_-en-p | 1585-TD001 |
|
Product Cutsheet
General
-- |
|
1585-td001_-en-p
Technical Data
1585-TD001 |
