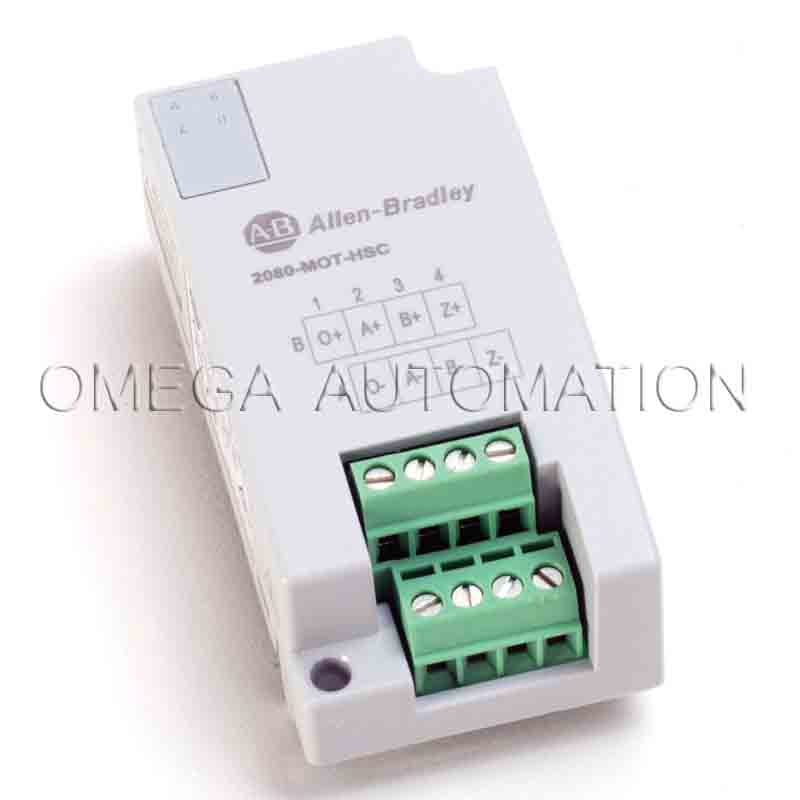

| I/O Isolation | None |
|---|---|
| I/O Status Indication | LED |
| Time delay at signal exchange | 2 ms |
|---|---|
| Suitable for safety functions | True |
| Digital inputs configurable | True |
| Digital outputs configurable | True |
| Type of voltage (input voltage) | DC |
| Type of output voltage | DC |
| Type of digital output | Other |
| Type of electric connection | Screw connection |
| Wiring category | 2 – on signal ports |
| Wire size | Solid: 0.14 mm2 AWG)…1.5 mm2 AWG) @ Rated @ 90 °C (194 °F) insulation maximum, Stranded: 0.14 mm2 AWG)…1.0 mm2 AWG) @ Rated @ 90 °C (194 °F) insulation maximum |
| Isolation voltage | Input module: 50V (continuous), Basic Insulation Type, Inputs/Outputs to Backplane. Type tested for 60s @ 720V DC, Inputs/Outputs to Backplane |
| Redundancy | False |
| Short-circuit protection, outputs available | False |
| Bus current draw | 60mA @ 3.3V DC |
| Width | 31.5 mm |
|---|---|
| Height | 62 mm |
| Depth | 20 mm |
| Shock | IEC 60068-2-27 (Test Ea, unpackaged shock): 25 g, nonoperating, 35 g (Panel Mount) nonoperating |
| Vibration | IEC 60068-2-6 (Test Fc, operating), 2 G @ 10…500 Hz |
| Terminal screw torque | 0.22…0.25 Nm (1.95…2.21 in-lb) (using a 2.5 mm (0.10 in.) flat-blade screwdriver) |
| Surrounding air temperature, max | 65 °C |
|---|---|
| North American temperature code | T4 |
| Emissions | CISPR 11 (IEC 61000-6-4): Class A |
| ESD immunity | IEC 61000-4-2: 6 kV contact discharges, 8 kV air discharges |
| Relative humidity | IEC 60068-2-30 (Test Db, unpackaged dA heat), 5…95% noncondensing |
| Conducted RF immunity | IEC 61000-4-6, 10V rms with 1 kHz sine-wave 80% AM from 150 kHz…80 MHz |
| EFT/B immunity | IEC 61000-4-4: ±2kV @ 5kHz on signal ports |
| Operating temperature | -20…65 °C (-4…149 °F): IEC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, operating dry heat), IEC 60068-2-14 (Test Nb, operating thermal shock) |
| Surge transient immunity | IEC 61000-4-5: ±2 kV line-earth(CM) on shielded ports |
| Nonoperating temperature | -40…85 °C (-40…185 °F), IEC 60068-2-1 (Test Ab, Unpackaged Nonoperating Cold), IEC 60068-2-2 (Test Bb, Unpackaged Nonoperating Dry Heat), IEC 60068-2-14 (Test Na, Unpackaged Nonoperating Thermal Shock) |
| Radiated RF immunity | IEC 61000-4-3: 10V/m with 1 kHz sine-wave 80% AM from 80…2000 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 900 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 1890 MHz, 10V/m with 1 kHz sine-wave 80% AM from 2000…2700 MHz, |
| On-state voltage drop, max | 0.5V DC |
|---|---|
| Reverse polarity protection | None |
| Output on-state current | 0.5 A |
| Number of outputs | 16 (1 physical output, 15 virtual) |
| Enclosure type rating | Meets IP20 |
|---|
| Off-state voltage, max | 1.0V DC |
|---|---|
| On-state current, min | 2 mA |
| Number of inputs | 1 Quadrature (ABZ) differential input |
| Pulse width, min | 2 µs |
| Input impedance, nom | 3580 Ω |
| Input frequency, max | 250 kHz (50% duty) |
| Maximum count | 48 bit |
| Phase separation, min | 500 ns |
| Input current range | 2 mA |
| Input voltage range | 0…30V DC |
| Off-state leakage current | 0.5 mA |
| ON-state voltage range | 2.6…30V DC |
