| Voltage type for actuating |
AC |
| Rated control supply voltage at AC 50 Hz |
110 V |
| Rated control supply voltage at AC 60 Hz |
120 V |
| Type of electrical connection of main circuit |
Screw connection |
| Rated impulse voltage withstand (Uimp) |
6 kV |

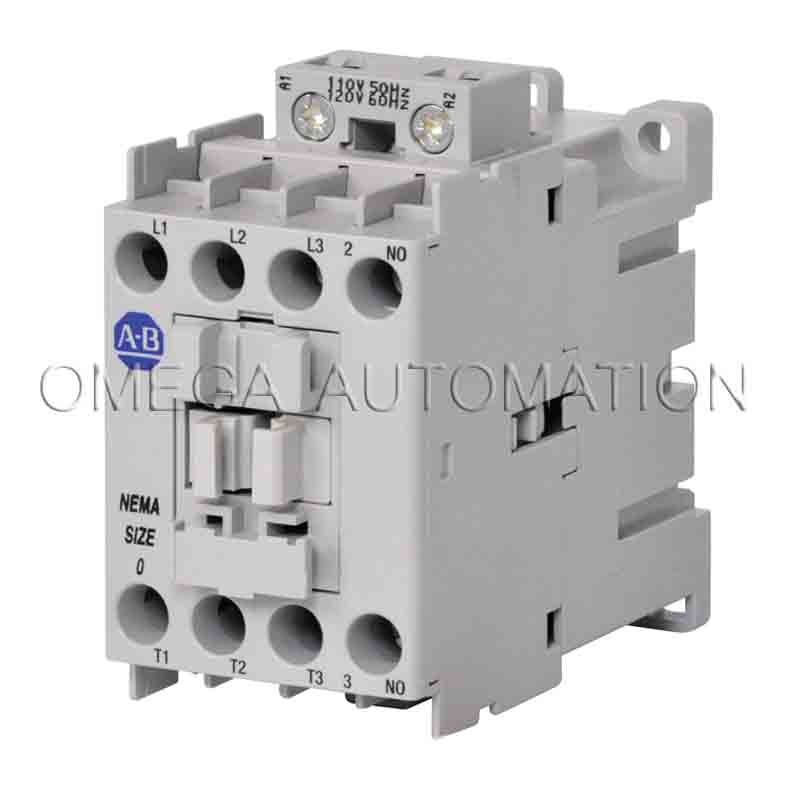

| NEMA size |
Size 0 |
| Conductor size |
6 mm^2 |
| High energy efficient coil, pick-up |
6 W @ 24V DC |
| High energy efficient coil, hold-in |
1.7 W @ 24V DC |
| Main current circuit resistance |
0.46 mΩ, 3/4-pole |
| Rated isolation voltage (Ui) |
690V per IEC |
| Standard coil, pick-up |
50VA/50 W @ 48…130V AC/DC |
| Standard coil, hold-in |
2.2VA/2 W @ 48…130V AC/DC |
| Energy-efficient coil, hold-in |
1.7VA/1.7 W @ 24-60V AC, 20-60V DC |
| Energy-efficient coil, pick-up |
16VA/12…16 W @ 24-60V AC, 20-60V DC |
| General purpose current (enclosed) |
16 A @ 600V per UL/CSA |
| Operating time, closing delay |
40…95 ms (Standard coil) |
| Power dissipation |
1 W per pole @ 400V, AC-1, Ie (3/4 pole) |
| Short time withstand (Icw) |
3-Poles: 80 A for 30 s, 40 °C |
| Operating time, opening delay |
17…29 ms (High energy-efficient coil) |
| Rated operational current (enclosed) |
9.6 A @ 220-240V, 3-phase per UL/CSA |
| Rated operational power (enclosed) |
7.5 Hp @ 440-480V, 3-phase per UL/CSA |
| Electromagnetic compatibility |
IEC 60947-1 – Environment A |
| Total power dissipation |
2.6 W @ 400V, AC-3, Ie, AC/DC control (120-250V), 3/4 pole |
| Definite purpose rating |
LRA: 150 A @ 440-480V AC (3-phase), UL/CSA HVAC applications |
| Operating limits, dropout |
≤0.60 x Us @ DC control |
| Insulation class of the coil |
Class F per IEC 60947-4-1 |
| Operating limits, pick-up |
(0.85…1.1) x Us @ 50/60 Hz |
| MCCB current rating |
Type 2 (IEC 60947-4-1): 28 A @ 400V, 70 kA available fault current |
| DIN fuses (gG) current rating |
Type 2 (IEC 60947-4-1): 32 A @ 400V, 100 kA available fault current |
| Rated voltage (Ue) |
24, 48, 110, 220, 440V DC |
| Hp rating, max |
5 Hp @ 575V (60 Hz), 3-phase (Full-load current must not exceed continuous ampere) |
| Coil voltage |
110V-50 Hz/120V-60 Hz |
| Switching of lighting loads |
Tungsten lamps, 3-phase (break all lines) (UL/CSA): 25 A @ 600V |
| UL class RK5 fuses rating |
Type 1 combination (UL60947 and CSA 22.2 No.14): 30 A @ 600V, 5 kA available fault current |
| Rated operational current (Ie) |
9 A @ 690V, Star-Delta starting (50 Hz) |
| UL class J and CSA HRCI-J fuses rating |
Type 1 combination (UL60947 and CSA 22.2 No.14): 30 A @ 600V, 100 kA available fault current |
| UL inverse-time circuit breaker |
Type 1 combination (UL60947 and CSA 22.2 No.14): 60 A @ 600V, 5 kA available fault current |
| Switching of power transformers |
Apparent power: 9 kVA @ 400V, AC-6a, 50 Hz (n = 30) |
| Rated operational power (Pe) |
7.5 kW @ 690V, AC-2, AC-3 (50 Hz), ambient temperature 60 °C |
| Switching of DC loads |
3-Poles in series: 27 A @ 220V (Shunt-wound Motors-Starting, reverse current breaking, reversing, stepping DC-3 at 60 °C) |
| Number of power poles |
Three pole + 1 NO auxiliary hold-in contact |
