| Number of Push-Buttons | 2 Push Buttons |
|---|---|

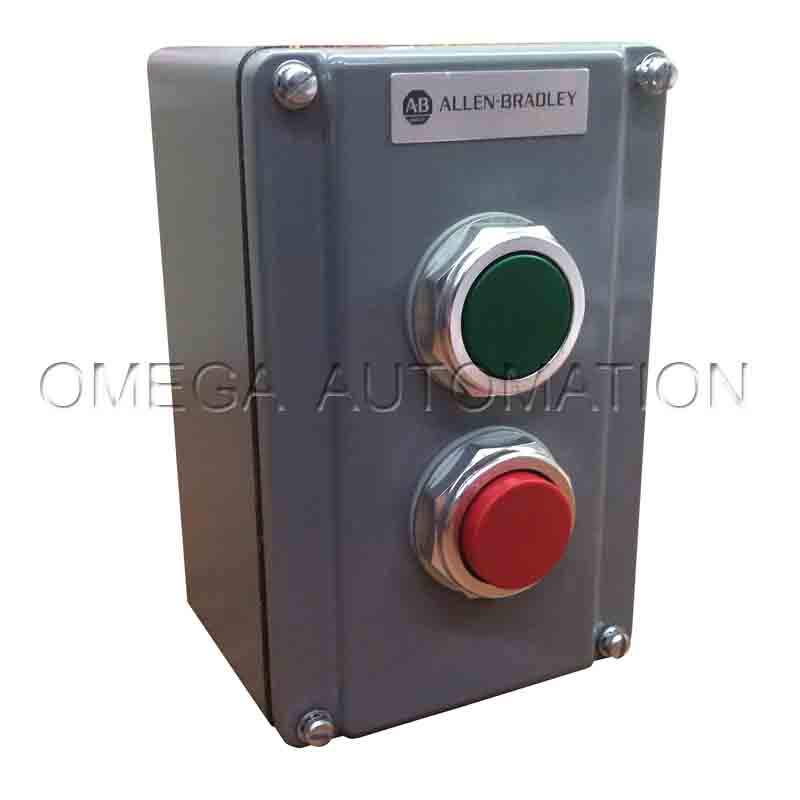

| Product Type | 30mm Push Button Station |
| Number of push buttons | 2 |
|---|---|
| Enclosure material | Die Cast Aluminum |
| Operator mounting hole dimension | 30.5 mm |
|---|---|
| Operator mechanical design life (cycles, min.) | 1.0E7 |
| Operator cap type | Flush head |
| Hazardous location rating | False |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Contact block termination tightening torque | 6 – 8 in-lb / 0.7 – 0.9 N-m |
| Conduit entry | 3/4 in, 14 NPT |
| Operator special function | None |
| Operator legend text | START – STOP |
| Station type | Push button |
| Enclosure mounting | Surface mount |
| Contact block termination wire range | 14 – 18 AWG (x2) |
| Termination style | Screw |
| Contact block electrical design life (cycles, at max. load) | 1000000 |
| Vibration | 10 G maximum |
| Contact block configuration | 1-NO 1-NC standard contacts |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Operating temperature | -25 °C |
|---|---|
| Storage temperature | -40 °C |
| Humidity | 50 % |
| Contact block operational voltage, max | 600V AC @ 600V DC |
|---|---|
| Indicating lights | None |
| Contact block utilization category (DC) | Q600, DC-13 |
| Contact block utilization category (AC) | A600, AC-15 |
| Contact block thermal current rating | 10 A |
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
