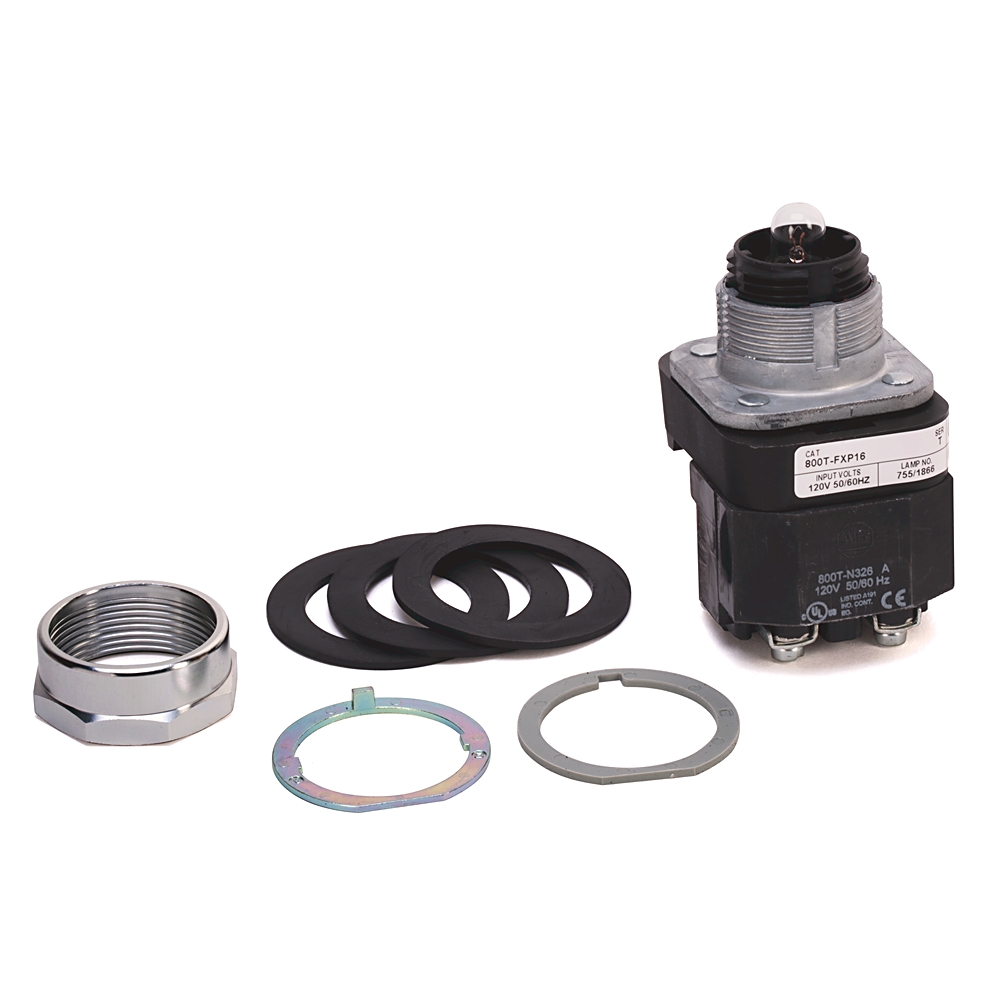

Name: 800T-FXP16XD4, 30mm Push-Pull Device 800T PB
SKU: 800T-FXP16XD4
Availability: OutOfStock

Technical Specifications

Suitable for illumination	Yes
Operator cap/button shape	Round
Illumination lamp type	Incandescent
Illumination module type	Transformer
Operator cap/button material	Plastic with Aluminum spinover
Contact block thermal current rating	10 A
Illumination module input voltage	120V AC, 50/60 Hz
Contact block utilization category (AC)	A600, AC-15
Contact block utilization category (DC)	Q600, DC-13
Contact block operational voltage, max	600V AC, 600V DC
Operator cap type	Mushroom Head

Hole diameter	30.5 mm
Type of electric connection	Screw connection
Terminations with finger safe covers	No
Operator mechanical design life (cycles, min.)	250000
Operator cap color	No cap
Operator cap/button size	40 mm
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Operator cap text/symbol	N/A
Illumination module termination wire range	14 – 18 AWG (x2)
Operator function	2-Position
Contact block termination tightening torque	6 – 8 lb – in / 0.7 – 0.9 N-m
Contact block electrical design life (cycles, at max. load)	1000000
Operator type	Push-Pull Unit
Operator special function	Maintained
Contact block configuration	1 NCLB, standard contact block (800T-XD4)
Shock	25 G (contact fragility)/100 G (no damage)
Vibration	10 G maximum
Contact block termination wire range	14 – 18 AWG (x2)
Illumination module termination tightening torque	6 – 8 lb – in / 0.7 – 0.9 N-m
