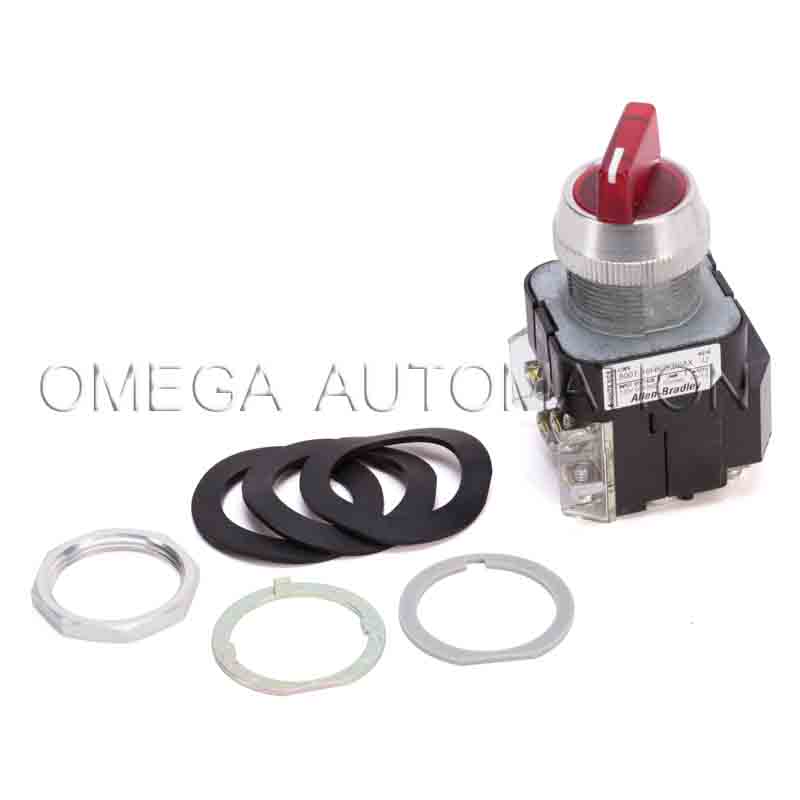

Technical Specifications
Mechanical
| Number of switch positions | 2 |
|---|---|
| Hole diameter | 30.5 mm |
| Type of electric connection | Screw connection |
| Operator mechanical design life (cycles, min.) | 200000 |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Illumination module termination tightening torque | 6 – 8 lb – in / 0.7 – 0.9 N-m |
| Illumination module termination wire range | 14 – 18 AWG (x2) |
| Operator type | Selector switch |
| Contact block termination tightening torque | Custom configuration – consult factory |
| Contact block electrical design life (cycles, at max. load) | Custom configuration – consult factory |
| Operator function | Maintained |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | Custom configuration – consult factory |
| Contact block termination wire range | Custom configuration – consult factory |
Electrical
| Suitable for illumination | Yes |
|---|---|
| Illumination lamp type | Incandescent |
| Illumination module type | Transformer |
| Illumination module input voltage | 120V AC, 50/60 Hz |
| Contact block thermal current rating | Custom configuration – consult factory |
| Contact block utilization category (AC) | Custom configuration – consult factory |
| Contact block utilization category (DC) | Custom configuration – consult factory |
| Contact block operational voltage, max | Custom configuration – consult factory |
| Position 2 contact block | No block this position |
| Position 1 contact block | 1-NO 1-NC standard contacts |
Construction
| Terminations with finger safe covers | No |
|---|---|
| Operator cap/button material | Plastic |
| Operator construction/material | Metal |
| Operator cap type | Standard knob |
| Operator cam code | KB6 |
| Operator cap color | Red |
Environmental
| Operating temperature | -25 °C |
|---|---|
| Hazardous location rating | Custom configuration – consult factory |
| Humidity | 50 % |
| Storage temperature | -40 °C |
Certification
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
