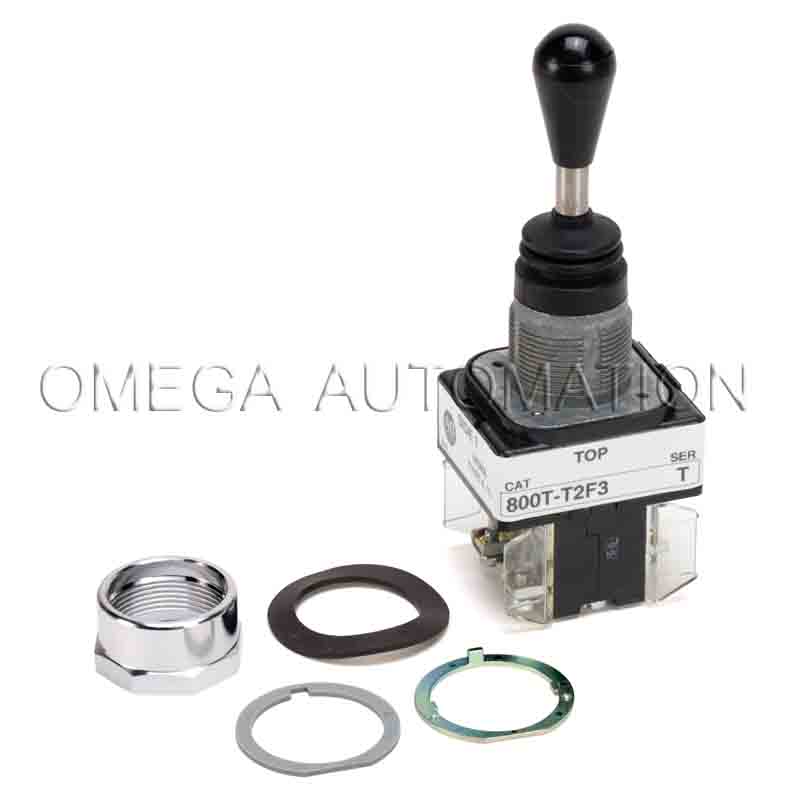

| Product Type | 30mm Toggle Switch |
|---|
| Number of switch positions | 2 |
|---|---|
| Terminations with finger safe covers | False |
| Centre mounting, hole diameter | 30.5 mm |
| Operator mechanical design life (cycles, min.) | 200000 |
| Vibration | Custom configuration – consult factory |
| Contact block termination tightening torque | Custom configuration – consult factory |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Position 2 contact block | 1 NO, standard contact block (800T-XD1) |
| Position 1 contact block | 1 NO, standard contact block (800T-XD1) |
| Position 3 contact block | No block this position |
| Position 4 contact block | No block this position |
| Operator function | Left-spring return, right-spring return |
| Contact block termination wire range | Custom configuration – consult factory |
| Suitable for illumination | False |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Operator type | Toggle switch |
| Contact block electrical design life (cycles, at max. load) | Custom configuration – consult factory |
| Operating temperature | -25 °C |
|---|---|
| Humidity | 50 to 95% |
| Storage temperature | -40 °C |
| Hazardous location rating | Custom configuration – consult factory |
| Operator cap/button material | Metal/plastic |
|---|---|
| Operator construction/material | Metal |
| Operator cap type | Lever arm with conical cap |
| Termination style | Screw |
| Operator cap color | Black |
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
| Contact block thermal current rating | Custom configuration – consult factory |
|---|---|
| Contact block utilization category (AC) | Custom configuration – consult factory |
| Contact block utilization category (DC) | Custom configuration – consult factory |
| Contact block operational voltage, max | Custom configuration – consult factory |
