| Type of accessory/spare part | Mechanical locking |
|---|---|
| Width | 48 mm |
| Height | 93 mm |
| Depth | 34 mm |

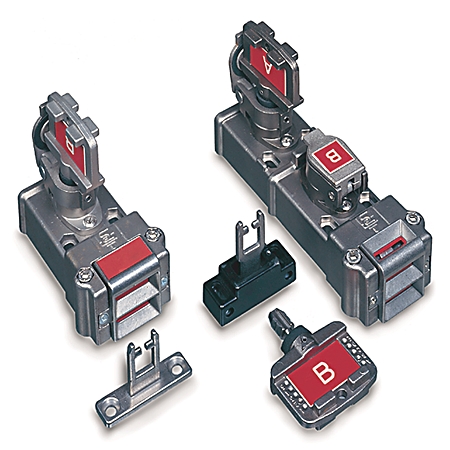

| Type of switch | Slamlock mechanical, single key, trapped to release actuator |
| Operating temperature | -40 °C |
|---|
| Torque settings, max | Terminal screws: 1.0 Nm |
|---|---|
| Key code 1 position 1 | Code 1 position 1 – code F |
| Key code 1 position 2 | Code 1 position 2 – code B |
| Weight | Single key: 0.76 kg (1.68 lb) |
| Mounting | SSL: 2 x M5 counterbored from top or 2 x M5 from underside with nuts |
| Key condition | Key trapped to release fully flexible actuator |
| Material | 316L Stainless Steel |
| Features | 316L stainless steel construction, selection of actuator types available, direct drive ops, replaceable code barrel assembly, fitted with tAer resistant screws, weatherproof stainless steel dust cap as standard, multiple key options |
| Torque to key | 14 |
| Relative humidity | 95 % |
| Shear force to key | 15.1 |
| Holding force, max | 2000 N |
| Mechanical life operations | 200000 |
| Peso | 0.85 kg |
|---|---|
| Dimensiones | 16.51 × 9.09 × 6.9 cm |
| Marcas | Allen-Bradley |
Marca
Rockwell Automation
| Type | Resource | Publication |
|---|---|---|
| General | Product Cutsheet | -- |
| General | Prosafe Trapped Key Overview | -- |
|
Product Cutsheet
General
-- |
|
Prosafe Trapped Key Overview
General
-- |
