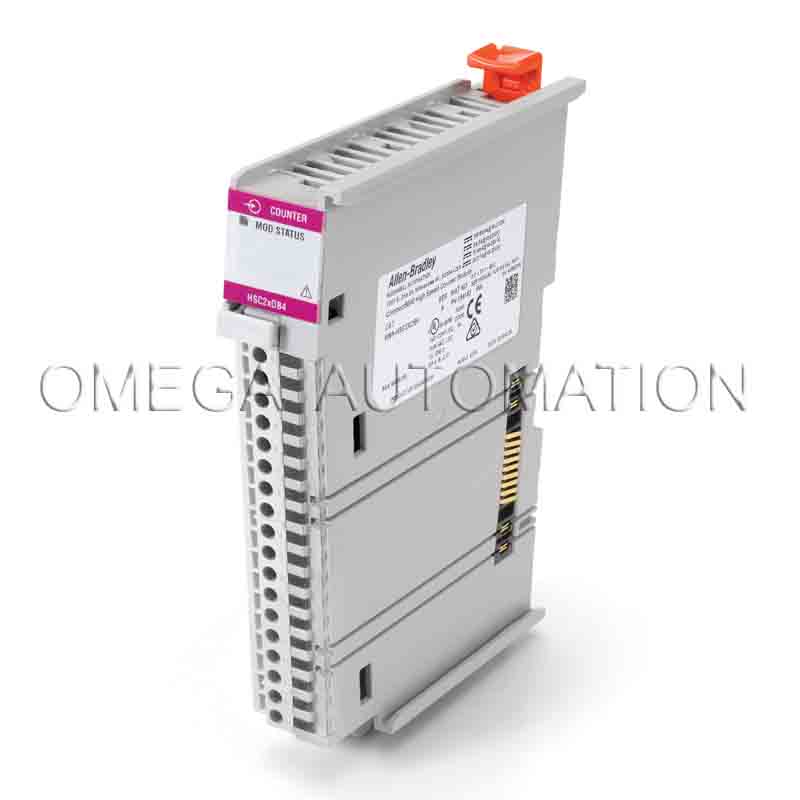

| Type of voltage (input voltage) |
DC |
| Type of output voltage |
DC |
| Analogue input, current |
No |
| Analogue input, voltage |
No |
| Analogue output, current |
No |
| Analogue output, voltage |
No |
| Short-circuit protection, digital outputs available |
Yes |
| Voltage type of supply voltage |
DC |
| Type of digital output |
Transistor |
| Insulation stripping length |
5069-RTB18-SPRING connections: 10 mm (0.39 in.) |
| Suitable for safety functions |
No |
| Time delay at signal exchange |
20 ms |
| Analogue input, resistor |
No |
| Analogue input, resistor temperature |
No |
| Analogue input, thermocouple |
No |
| Analogue input signal configurable |
No |
| Analogue output signal configurable |
No |
| Digital in-/outputs, configurable |
Yes |
| Type of electric connection |
Screw-/spring clamp connection |
| Input current, max |
8 mA |
| Power dissipation, max |
3 W |
| Off-state current, max |
1 mA |
| On-state current, min |
4 mA |
| Off-state voltage, max |
1.5 V |
| Pulse width, min |
125 ns |
| Pulse separation, min |
100 ns |
| Output short circuit/overload protection |
Yes |
| Thermal dissipation, max |
10.2 BTU/h |
| Reverse voltage protection |
32V DC |
| On-state voltage, nom |
24V DC |
| On-state voltage drop, max |
<0.3V DC |
| ON-state voltage |
3…32V DC |
| Output voltage range |
10…32V DC |
| Voltage category |
12/24V DC source |
| Overvoltage protection, max |
36V (fuse protected) |
| No load detection diagnostics |
Yes (per channel diagnostics) |
| Output short circuit/overload/overtemp detection |
Yes (per channel diagnostics) |
| On-state output current, min |
1 mA per channel 4 mA per module |
| Output control in fault state per point |
Hold last state, On, Off (default) |
| Output states in program mode per point |
Hold last state, On, Off (default) |
| Output states in fault mode per point |
Hold last state, On, Off (default) |
| Outputs |
4 Channels (1 group of 4), sourcing |
| Inputs |
2 quadrature (ABZ) differential inputs |
| Duration of fault mode per point |
1 s, 2 s, 5 s, 10 s, Forever (default) |
| Module keying |
Electronic keying via programming software |
| Pilot duty |
Yes (make current electronically limited/protected @ 3.6 A) |
| Indicators |
1 green/red module status indicator, 10 yellow/red I/O status indicator |
| Wiring category |
2 – on shielded output ports, 2 – on output power ports, 2 – on shielded counter ports |
| Isolation voltage |
250V (continuous), basic insulation type, No isolation between SA power and I/O ports, No isolation between individual I/O ports, Type tested at 1500V AC for 60 s |
| Wire size |
5069-RTB18-SPRING connections: 0.5…1.5 mm² (22…16 AWG) solid or stranded shielded copper wire rated at 105 °C (221 °F), or greater, 2.9 mm (0.11 in.), maximum diameter including insulation 5069-RTB18-SCREW connections: 0.5…1.5 mm² (22…16 AWG) solid or |
| Surrounding air temperature, max |
60 °C |
| Operating temperature |
0 °C |
| Nonoperating temperature |
-40 °C |
| Emissions |
IEC 61000-6-4 |
| Relative humidity |
5…95% noncondensing |
| Voltage variation |
10 ms interruption on MOD Power port |
| ESD immunity |
6 kV contact discharges, 8 kV air discharges |
| Conducted RF immunity |
10Vrms with 1 kHz sine-wave 80% AM from 150 kHz…80 MHz |
| EFT/B immunity |
±4 kV @ 5 kHz on power ports, ±2 kV @ 5 kHz on shielded output ports, ±2 kV @ 5 kHz on shielded counter ports |
| Surge transient immunity |
±1 kV line-line (DM) and ±2 kV line-earth (CM) on power ports, ±2 kV line-earth (CM) on shielded output ports, ±2 kV line-earth (CM) on shielded counter ports |
| Radiated RF immunity |
10 V/m with 1 kHz sine-wave 80% AM from 80…2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000…2700 MHz |
