700-HA33A2, GP Tube Base Relay

MXN $1,032.90 - (IVA Incluido) + Envío

Sin existencias

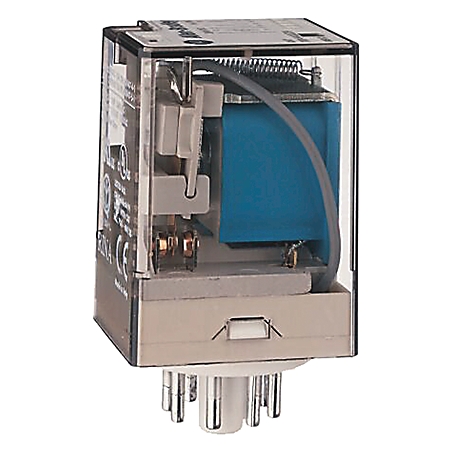

GP Tube Base Relay

SKU: 700-HA33A2
Number of contacts as change-over contact 3
Nominal current 10 A
Complete with socket False
With LED indication False
Voltage type for actuating AC
Rated control supply voltage at AC 50 Hz 240 V
Rated control supply voltage at AC 60 Hz 240 V
Rated control supply voltage at DC 0 V
Type of electric connection Plug-in connection
Rated thermal current (Ith) 10A @ 240V AC
Electrical life cycle 100000 minimum
With detachable clamps False
With forced-guided contacts False
Degree of protection (IP) IP40
Mechanical life operations DC: 50000000
Shock Opsal: 9 G
Vibration Opsal: 2.5 G
List of degrees of protection (IP) IP20 with guarded terminal socket
Width 32.8 mm
Height 54.1 mm
Depth 36.5 mm
Contact material AgNi
Material of contact surface Other
Operating temperature -40 °C
Storage temperature -40 °C
Peso 0.083915 kg
Dimensiones 7.19 × 3.99 × 3.4 cm
Marcas

Allen-Bradley

Marca

Rockwell Automation

Type Resource Publication
General Product Cutsheet --
General 3D STEP Model (PDF) --
General Short Circuit Ratings Data Sheet --
Technical Data 700-td552_-en-p 700-TD552
,
Product Cutsheet General
--
3D STEP Model (PDF) General
--
Short Circuit Ratings Data Sheet General
--
700-td552_-en-p Technical Data
700-TD552
,
