BDA160503, Circuit breaker, PowerPacT B, 50A, 1 pole, 600Y/347VAC, 14kA, I-Line, thermal magnetic, 80%, B
MXN $4,073.28MXN $4,073.28 (sin impuestos)× -
-
BGA36060, Circuit breaker, PowerPacT B, 60A, 3 pole, 600Y/347VAC, 18kA, I-Line, thermal magnetic, 80%, ABC
MXN $12,364.66MXN $12,364.66 (sin impuestos)× -
AL800M23K, Circuit breaker accessory, PowerPacT M/P, lug kit, mechanical, 800A, 3/0 AWG to 500kcmil, unit mount, Al
MXN $3,452.59MXN $3,452.59 (sin impuestos)× -
AL150HD, Circuit breaker accessory, PowerPacT H, lug kit, mechanical, 15A to 150A, 14 to 3/0 AWG, aluminum or copper, qty 3
MXN $858.62MXN $858.62 (sin impuestos)× -
BGA160301, Circuit breaker, PowerPacT B, 30A, 1 pole, 600Y/347VAC, 18kA, I-Line, thermal magnetic, 80%, A
MXN $5,093.10MXN $5,093.10 (sin impuestos)× -
BGA260204, Circuit breaker, PowerPacT B, 20A, 2 pole, 600Y/347VAC, 18kA, I-Line, thermal magnetic, 80%, BC
MXN $8,080.17MXN $8,080.17 (sin impuestos)×

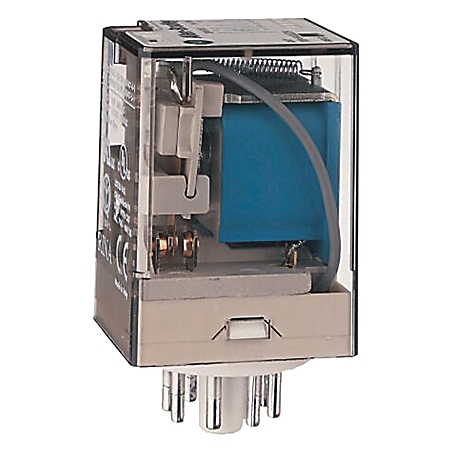

700-HA33Z2, GP Tube Base Relay
MXN $1,136.30 - (IVA Incluido) + Envío
1 disponibles
GP Tube Base Relay
Marca:Rockwell Automation
| Number of contacts as change-over contact | 3 |
|---|---|
| Nominal current | 10 A |
| Complete with socket | False |
| With LED indication | False |
| Voltage type for actuating | DC |
| Rated control supply voltage at AC 50 Hz | 0 V |
| Rated control supply voltage at AC 60 Hz | 0 V |
| Rated control supply voltage at DC | 220 V |
| Type of electric connection | Plug-in connection |
| Rated thermal current (Ith) | 10A @ 240V AC |
| Electrical life cycle | 100000 minimum |
| With detachable clamps | False |
|---|---|
| With forced-guided contacts | False |
| Degree of protection (IP) | IP40 |
| Mechanical life operations | DC: 50000000 |
| Shock | Opsal: 9 G |
| Vibration | Opsal: 2.5 G |
| List of degrees of protection (IP) | IP20 with guarded terminal socket |
| Width | 32.8 mm |
|---|---|
| Height | 54.1 mm |
| Depth | 36.5 mm |
| Contact material | AgNi |
| Material of contact surface | Other |
| Operating temperature | -40 °C |
|---|---|
| Storage temperature | -40 °C |
| Peso | 0.094 kg |
|---|---|
| Dimensiones | 3.7 × 3.5 × 7 cm |
| Marcas | Allen-Bradley |
Marca
Rockwell Automation
| Type | Resource | Publication |
|---|---|---|
| General | 3D STEP Model (PDF) | -- |
| General | Product Cutsheet | -- |
| General | Short Circuit Ratings Data Sheet | -- |
| Technical Data | 700-td552_-en-p | 700-TD552 |
|
3D STEP Model (PDF)
General
-- |
|
Product Cutsheet
General
-- |
|
Short Circuit Ratings Data Sheet
General
-- |
|
700-td552_-en-p
Technical Data
700-TD552 |
