1492-L3-BR, Terminal Block, Spring Clamp Connection, Feed Through, 5.1 x 59.5 x 31.3mm (0.20 x 2.34 x 1.23 in), 1 Pole, Brown, Pkg. Qty. of 100, VOLTAGE RATING UR - 600V AC/DC, CSA - 600V AC/DC, IEC - 800V AC/DC, ATEX - 550V AC/DC, MAXIMUM CURRENT RATING UR - 25A,
MXN $222.41MXN $222.41 (sin impuestos)×

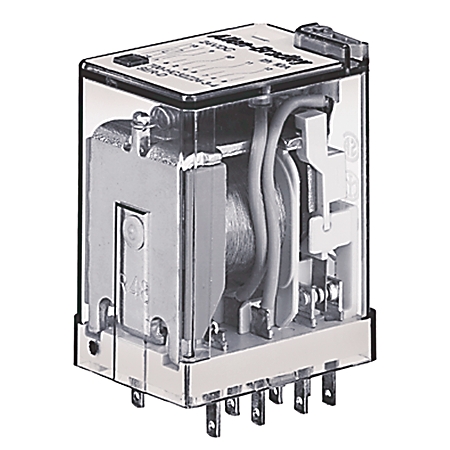

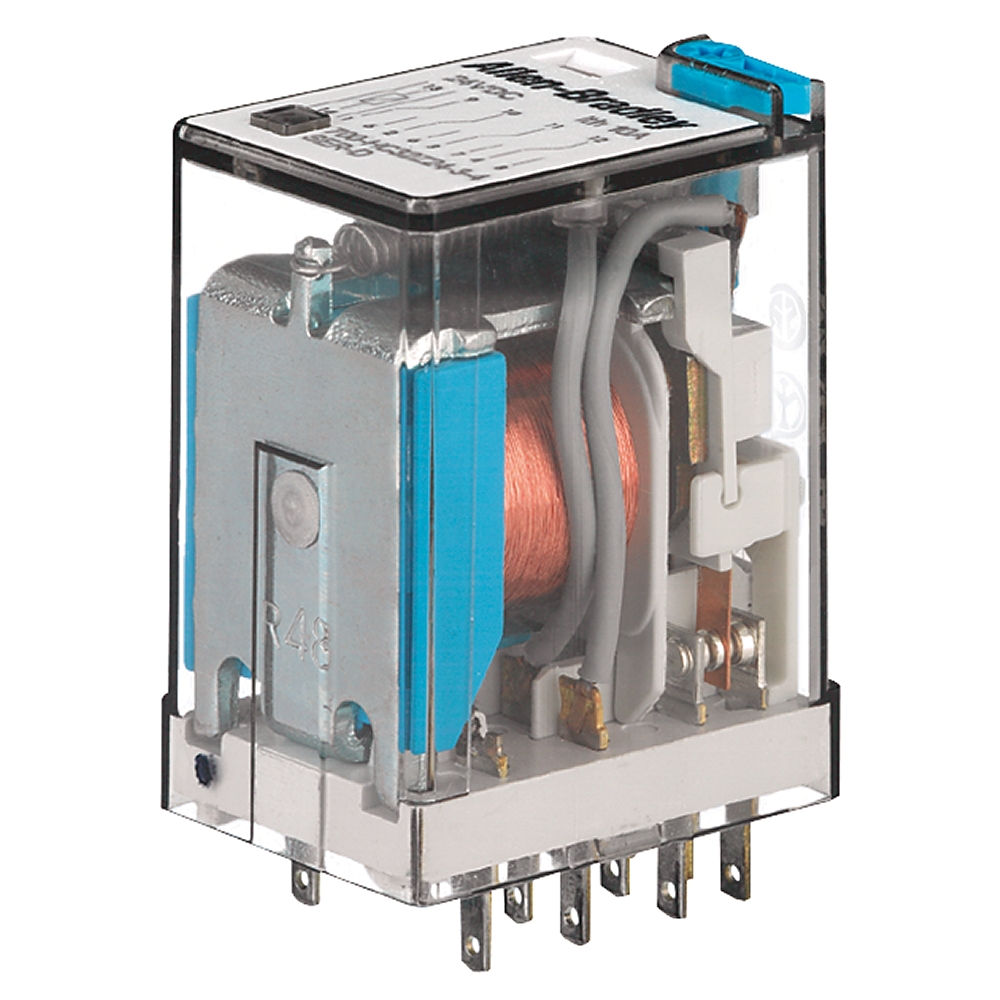

700-HC24A24, 24V 50/60Hz GP Ice Cube Relay
MXN $709.50 - (IVA Incluido) + Envío
4 disponibles
24V 50/60Hz GP Ice Cube Relay
Marca:Rockwell Automation
| Number of contacts as change-over contact | 4 |
|---|---|
| Nominal current | 7 A |
| Complete with socket | False |
| With LED indication | False |
| Voltage type for actuating | AC |
| Rated control supply voltage at AC 50 Hz | 24 V |
| Rated control supply voltage at AC 60 Hz | 24 V |
| Rated control supply voltage at DC | 0 V |
| Type of electric connection | Plug-in Connection |
| Rated thermal current (Ith) | 0.291666666666667 |
| Electrical life cycle | 100000 minimum |
| With detachable clamps | False |
|---|---|
| With forced-guided contacts | False |
| Degree of protection (IP) | IP20 |
| Mechanical life operations | DC: 50000000 |
| List of degrees of protection (IP) | IP20 with guarded terminal socket |
| Width | 27.7 mm |
|---|---|
| Height | 37.2 mm |
| Depth | 20.7 mm |
| Contact material | AgNi |
| Material of contact surface | Other |
| Operating temperature | -30 °C |
|---|---|
| Storage temperature | -55 °C |
| Peso | 0.038555 kg |
|---|---|
| Dimensiones | 4.8 × 2.99 × 2.21 cm |
| Marcas | Allen-Bradley |
Marca
Rockwell Automation
| Type | Resource | Publication |
|---|---|---|
| General | Short Circuit Ratings Data Sheet | -- |
| General | Product Cutsheet | -- |
| Technical Data | 700-td552_-en-p | 700-TD552 |
|
Short Circuit Ratings Data Sheet
General
-- |
|
Product Cutsheet
General
-- |
|
700-td552_-en-p
Technical Data
700-TD552 |
There are no reviews yet.
