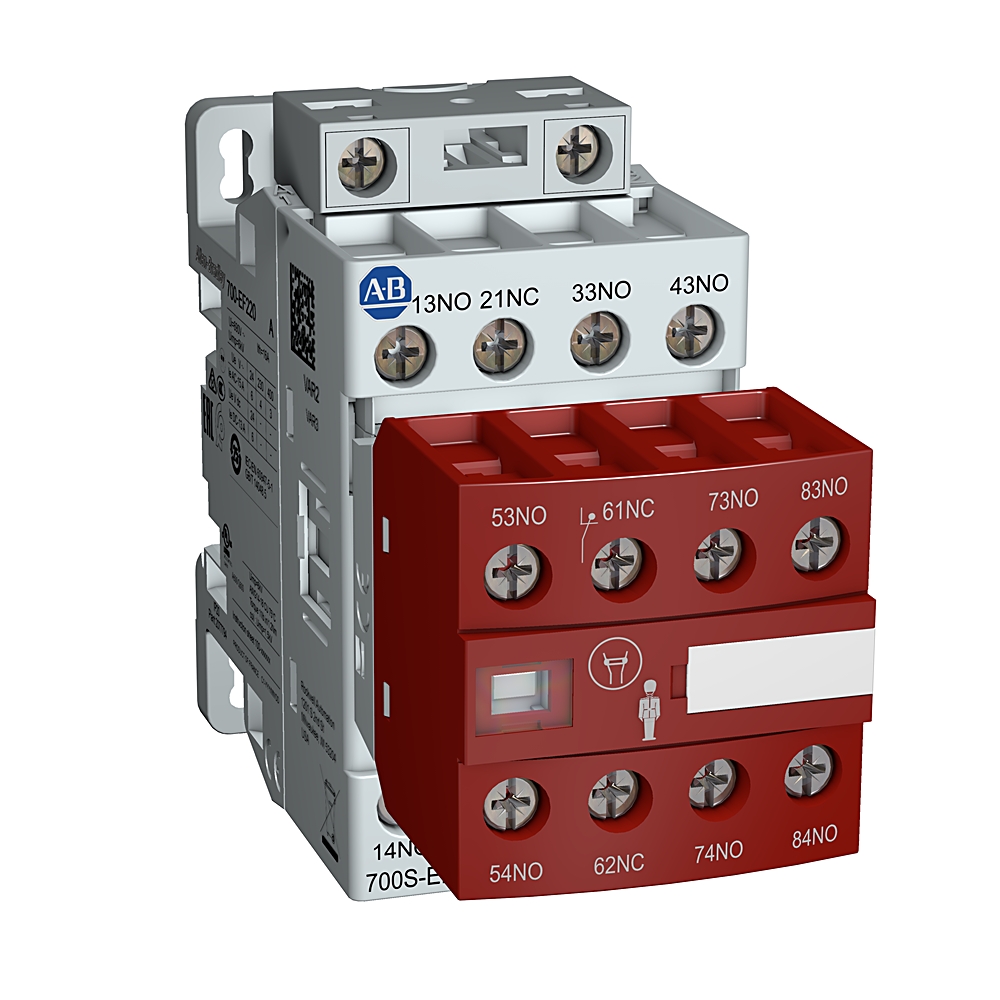

Technical Specifications
Electrical
| Voltage type for actuating | AC/DC |
|---|---|
| Rated control supply voltage at DC | 20 V |
| Rated control supply voltage at AC 50 Hz | 24 V |
| Rated control supply voltage at AC 60 Hz | 24 V |
| Mounting method | DIN-rail/screw |
| Number of contact as normally closed | 4 |
| Number of contact as normally open | 4 |
| Contact form | 8 poles |
| Rated frequency | 50/60 Hz |
| Rated insulation voltage (Ui) | 690V per IEC |
| Operating limits, dropout | (≤0.60) x Us @ DC control |
| AC coil voltage | 6 A @ 24-48V, AC-15 |
| Operating limits, pick-up | (0.85…1.1) x Us @ 50/60 Hz |
| Energy-efficient coil, hold-in | 1.7VA/1.7 W @ 24-60V AC, 20-60V DC |
| Rated voltage (Ue) | 24, 48, 120, 230, 400, 500, 690V AC |
| Energy-efficient coil, pick-up | 16VA/12…16 W @ 24-60V AC, 20-60V DC |
| Rated thermal current (Ith) | Main contacts: 16 A @ ≤40 °C, AC-12 |
| Rated impulse strength (Uimp) | 6 kV |
| Dielectric withstand | 2.5 kV |
| Load | 12V, 3 mA (Silver), minimum |
| Electric service life | 1.5 million (AC-15 240V, 3 A) |
| Coil voltage pickup | 85…110% AC coils, 80…110% DC coils |
| Type of protection | IP2X (IEC 60529 and DIN 40050), in connected state |
Mechanical
| Operating time, closing delay | 40 ms |
|---|---|
| Connection type | Screw connection |
| Operating time, opening delay | 11 to 95 ms |
| Contact material | Silver |
| Shock resistance | IEC 60068-2: half sinusoidal shock 11 ms, 25G (in 3 directions) |
| Suitable for manual operation | No |
| Mechanical life | 20 mil |
| Vibration resistance | IEC 60068-2: static >2 G, in normal position no malfunction <5 G |
| Features | Mechanically linked contacts, Timer and latch operations, Switch up to 690V AC and DC |
Construction
| Height | Approximate 86 mm |
|---|---|
| Length | Approximate 45 mm |
| Width | Approximate 110.5 mm |
Environmental
| Altitude | 3000 m |
|---|---|
| Ambient temperature | Storage: -60…80 °C Operation at nominal current: -40…70 °C |
Certification
| Standards compliance | UL 508, CSA C22.2 No. 14, EN/IEC 60947-1, -5-1, RoHS |
|---|
