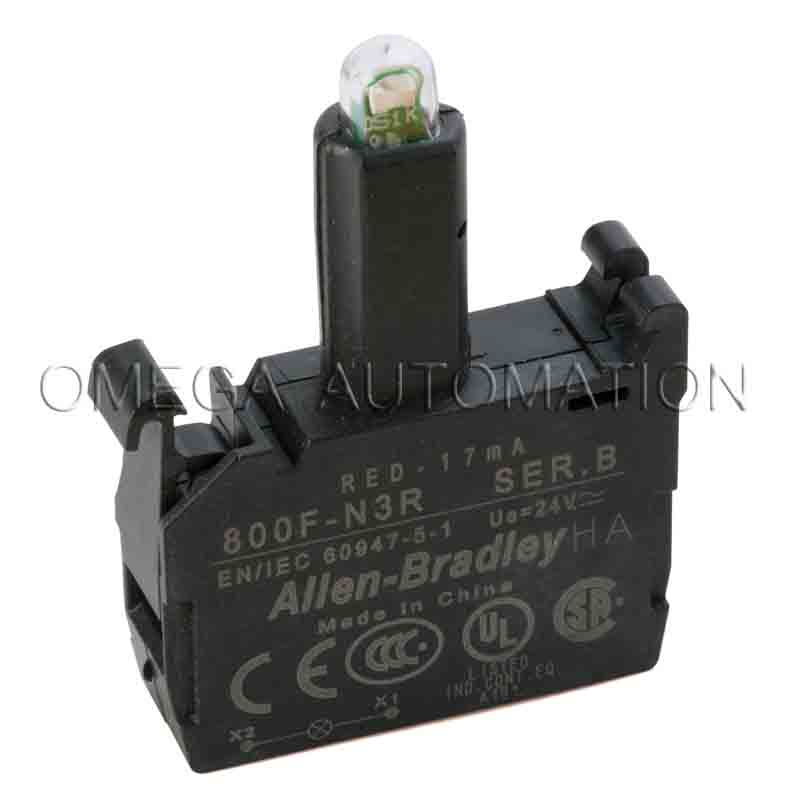

| Product Type | 22mm LED Module |
|---|
| Voltage type for actuating | AC/DC |
|---|---|
| Lamp type | LED |
| Illumination lamp type | Red LED |
| Illumination module type | LED |
| Illumination module input voltage | 24V AC/DC (incandescent or LED) |
| Contact block mounting style | Latch |
|---|
| Operator type | 22 mm LED module |
|---|---|
| Illumination module termination wire range | #18…12 AWG (0.75…2.5 mm²) |
| Vibration | 10 g |
| Shock | 100 g |
| Operator mounting hole dimension | 22.5 mm |
| Latch material | Plastic / metal |
| Illumination module termination tightening torque | 6 – 8 in-lb / 0.7 – 0.9 N-m |
| Operating temperature | -25 °C |
|---|---|
| Storage temperature | -40 °C |
| Humidity | ≤95% RH from 25…60 °C (77…140 °F) |
| Certifications | UL,UR, CSA, CCC, CE |
|---|
