Technical Specifications
Mechanical
| Number of switch positions | 2 |
|---|---|
| Spring-return | No |
| Switching function latching | Yes |
| Hole diameter | 22.5 mm |
| Operator mechanical design life (cycles, min.) | 1000000 |
| Latch material | Metal |
| Key removal position | Left |

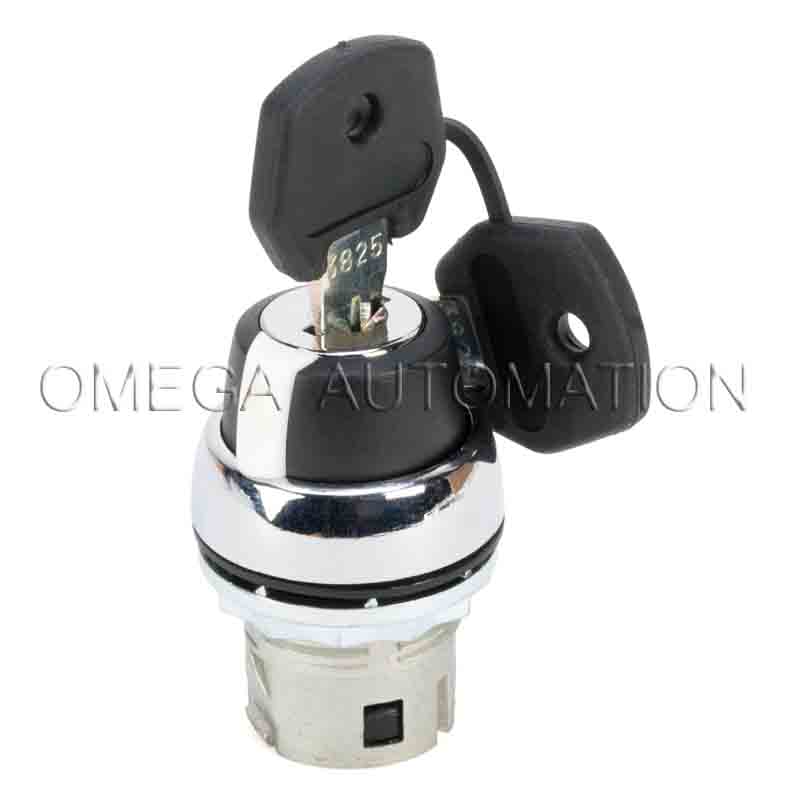

| Operator type | Keyed selector switch |
| Enclosure compatibility | IP66, Type 4/13 (round metal operator) |
| Operator function | Maintained, 2 position |
| Shock | 100 G |
| Vibration | 10 G |
| Key lock, standard | 3825 |
Electrical
| Suitable for illumination | No |
|---|---|
| Contact block thermal current rating | 10 A |
Construction
| Material front ring | Metal |
|---|---|
| Type of control element | Key |
| Operator cap/button material | Plastic |
| Operator construction/material | Metal |
| With front ring | Yes |
Environmental
| Operating temperature | -25 °C |
|---|---|
| Humidity | ≤95% RH from 25…60 °C (77…140 °F) |
| Storage temperature | -40 °C |
Certification
| Certifications | UL,UR, CSA, CCC, CE |
|---|
