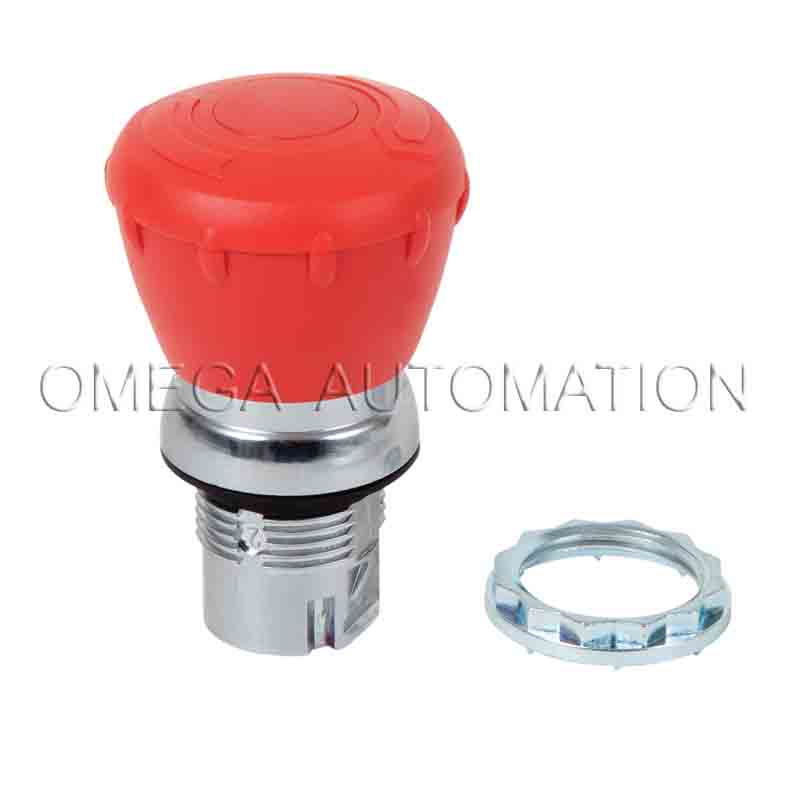

| Product Type | 22mm Twist To Release E-Stop |
|---|
| Diameter cap | 40 mm |
|---|---|
| Unlocking method | Turn-release |
| Operator type | 40 mm twist to release |
| Operator function | 22 mm twist to release E-stop |
| Enclosure compatibility | IP66, Type 4/13 (Round metal operator) |
| Spring-return | False |
| Switching function latching | True |
| Hole diameter | 22.5 mm |
| Vibration | 10 g |
| Shock | 100 g |
| Operator mechanical design life (cycles, min.) | 300000 |
| Operator cap type | Mushroom head |
| Contact block durability | 10000000 cycles |
| Colour button | Red |
|---|---|
| Operator construction/material | Metal |
| Operator cap color | Red |
| Operator cap/button size | 40 mm twist to release |
| With front ring | True |
| Type of button | High |
| Operator cap/button material | Plastic |
| Contact block thermal current rating | 10 A |
|---|
| Operating temperature | -25 °C |
|---|---|
| Storage temperature | -40 °C |
| Humidity | ≤95% RH from 25…60 °C (77…140 °F) |
| Certifications | UL,UR, CSA, CCC, CE |
|---|
| Peso | 0.090703 kg |
|---|---|
| Dimensiones | 6.98 × 6.98 × 3.81 cm |
| Marcas | Allen-Bradley |
Marca
Rockwell Automation
| Type | Resource | Publication |
|---|---|---|
| General | Product Cutsheet | -- |
| General | Push my Buttons Podcast | -- |
| User Manual | 800-um001_-en-p | 800-UM001 |
|
Product Cutsheet
General
-- |
|
Push my Buttons Podcast
General
-- |
|
800-um001_-en-p
User Manual
800-UM001 |
