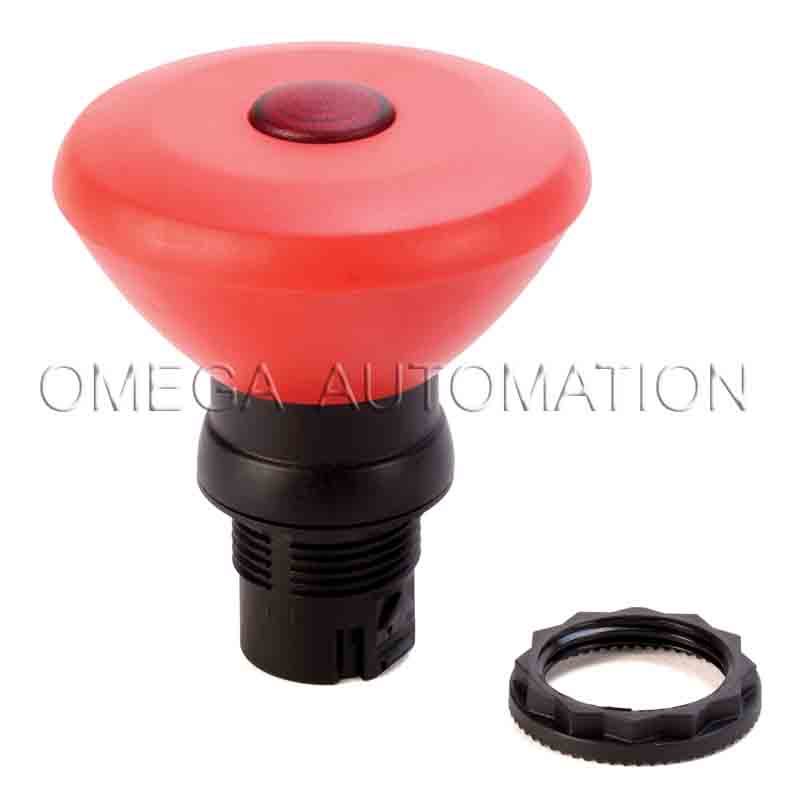

Technical Specifications
Mechanical
| Diameter cap | 60 mm |
|---|---|
| Unlocking method | Pull-release |
| Operator type | 60 mm illuminated push-pull |
| Operator function | 22 mm push pull operator |
| Enclosure compatibility | IP69K, IP66, Type 4/4X/13 (Round plastic operator) |
| Spring-return | No |
| Switching function latching | Yes |
| Hole diameter | 22.5 mm |
| Vibration | 10 G |
| Shock | 100 G |
| Operator mechanical design life (cycles, min.) | 300000 |
| Operator cap type | Mushroom head |
| Contact block durability | 10000000 cycles |
Construction
| Colour button | Red |
|---|---|
| Operator construction/material | Plastic |
| Operator cap color | Red |
| Operator cap/button size | 60 mm illuminated push-pull |
| With front ring | Yes |
| Type of button | High |
| Operator cap/button material | Plastic |
Electrical
| Suitable for illumination | Yes |
|---|---|
| Contact block thermal current rating | 10 A |
Environmental
| Operating temperature | -25 °C |
|---|---|
| Storage temperature | -40 °C |
| Humidity | ≤95% RH from 25…60 °C (77…140 °F) |
Certification
| Certifications | UL,UR, CSA, CCC, CE |
|---|
