Technical Specifications
Electrical
| Suitable for illumination | No |
|---|---|

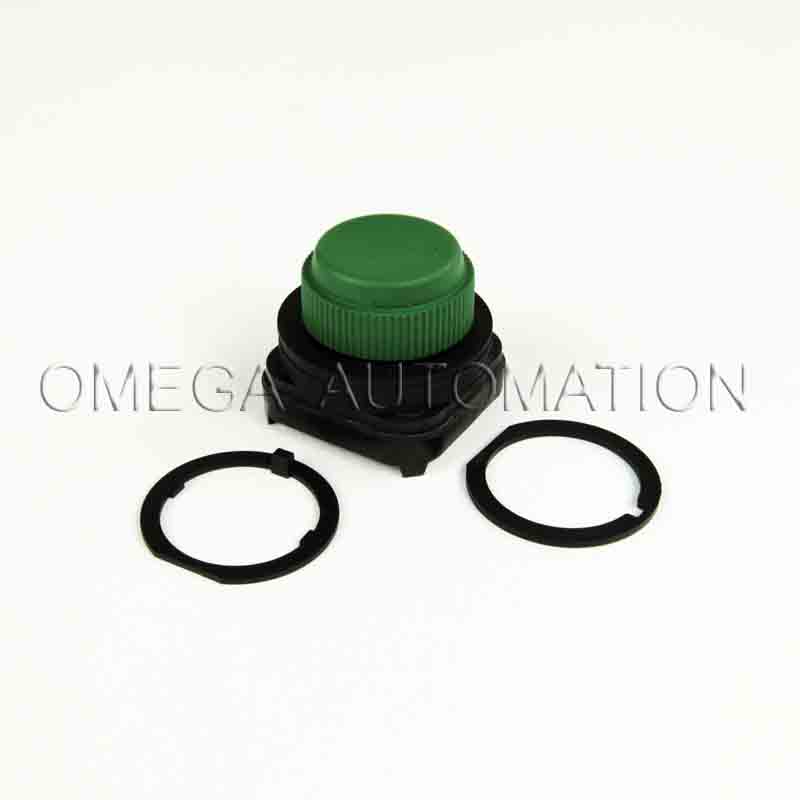

| Operator cap/button shape | Round |
| Operator cap/button material | Synthetic rubber |
| Operator cap type | Booted head |
Mechanical
| Hole diameter | 30.5 mm |
|---|---|
| Type of electric connection | Screw connection |
| Terminations with finger safe covers | No |
| Operator mechanical design life (cycles, min.) | 1.0E7 |
| Operator cap color | Green |
| Enclosure compatibility (NEMA type) | 1, 4, 4X, 12, 13 |
| Operator function | Momentary contact |
| Operator type | Push button |
| Contact block configuration | No Contacts |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | 10 G maximum |
Environmental
| Humidity | 50 % |
|---|---|
| Operating temperature | -25 °C |
| Hazardous location rating | No |
| Storage temperature | -40 °C |
Construction
| Operator construction/material | Plastic |
|---|
Certification
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
