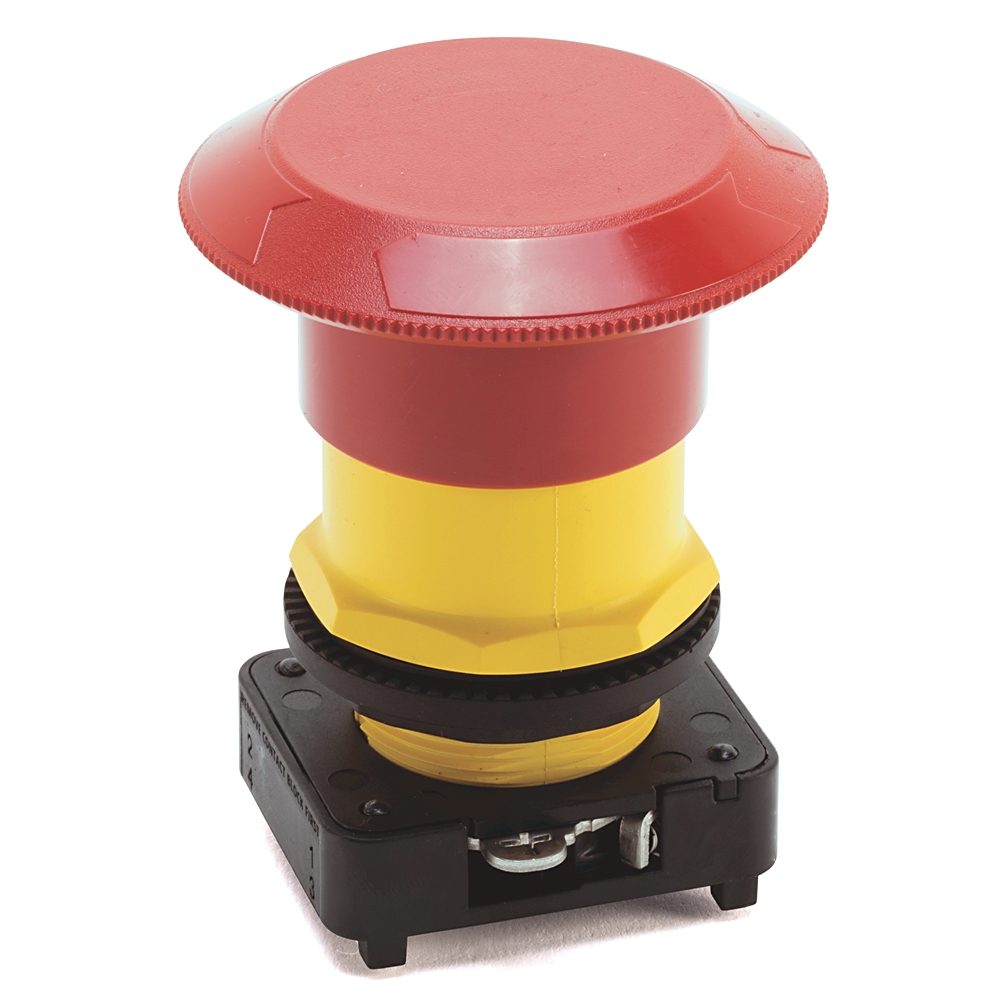

| Product Type | 30mm E-Stop |
|---|
| Hole diameter | 30.5 mm |
|---|---|
| Terminations with finger safe covers | False |
| Suitable for illumination | True |
| Operator mechanical design life (cycles, min.) | 250000 |
| Operator special function | Twist release |
| Enclosure compatibility (NEMA type) | 1, 4, 4X, 12, 13 |
| Operator cap text/symbol | No legend on cap |
| Operator cap type | Jumbo mushroom head |
| Operator construction/material | Plastic |
| Operator type | Emergency stop push button |
| Operator function | 2-position maintained |
| Illumination module termination wire range | 14 – 18 AWG (x2) |
| Vibration | 10 G maximum |
| Contact block configuration | 1-NO 1-NC standard contacts |
| Contact block termination wire range | 14 – 18 AWG (x2) |
| Contact block termination tightening torque | 6 – 8 in-lb / 0.7 – 0.9 N-m |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Contact block electrical design life (cycles, at max. load) | 1000000 |
| Operator mechanism | Trigger-action |
| Illumination module termination tightening torque | 6 – 8 in-lb / 0.7 – 0.9 N-m |
| Operator cap/button size | 60 |
|---|---|
| Operator cap/button material | Plastic |
| Latch material | Plastic / metal |
| Operator cap color | Red |
| Termination style | Screw |
| Operator cap/button shape | Round |
| Operating temperature | -25 °C |
|---|---|
| Hazardous location rating | False |
| Humidity | 50 % |
| Storage temperature | -40 °C |
| Illumination lamp type | LED |
|---|---|
| Illumination module type | Full voltage |
| Contact block thermal current rating | 10 A |
| Contact block utilization category (AC) | A600, AC-15 |
| Contact block utilization category (DC) | Q600, DC-13 |
| Illumination module input voltage | 12…130V AC/DC |
| Contact block operational voltage, max | 600V AC @ 600V DC |
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
