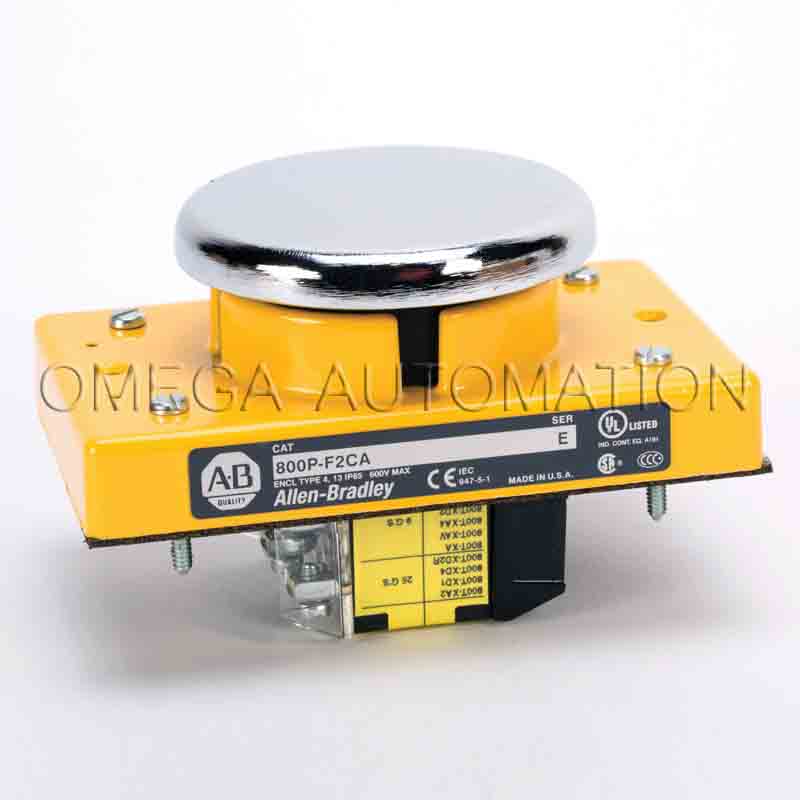

Name: 800P-F2CA, 800P Palm-Operated PB
SKU: 800P-F2CA
Availability: OutOfStock

Technical Specifications

Number of contacts as normally closed contact	1
Number of contacts as normally open contact	1
Operational voltage (Ue), max	DC 60
Thermal continuous current (Ith), max	10 A, AC
Operation	Articulated drive
Rated operational current	69VA @ 28…600V DC
Rated operational current, break	720VA @ 72…120V AC
Rated operational current, make	7200VA @ 120…600V AC
Utilization category	Standard contact blocks: IEC: AC-15,DC-13 NEMA: A600, Q600
Electrical life cycle	1000000 cycles at maximum rated load, 200000 cycles at maximum rated load (Logic Reed)
Dielectric strength	2200V for 1 minute

Spring-return	Yes
Mounting type	Flush mount
Shock	Mechanical shock at 1/2 cycle sine-wave for 11 ms
Contact fragility	800T-XA contact block with no damage at 100 G: 9 G
Vibration	10…2000 Hz, 1.52 mm displacement (peak-to-peak) 10 G maximum
Typical operating force	Articulated: 800T-XD1 and 800T-XD4 contact blocks, 3.7 lb, maximum at center of button
Unlocking method	Push button
Contact operation for shallow contact blocks	Snap action
Mechanical life operations	Push buttons: 1000000 minimum

Degree of protection (IP)	IP65
Colour cap	Other
Button color	Chrome
List of degrees of protection (NEMA)	1, 4, 12, 13
Guard option	No guard
Enclosure	No enclosure (flush style)
Degree of protection (NEMA)	4
