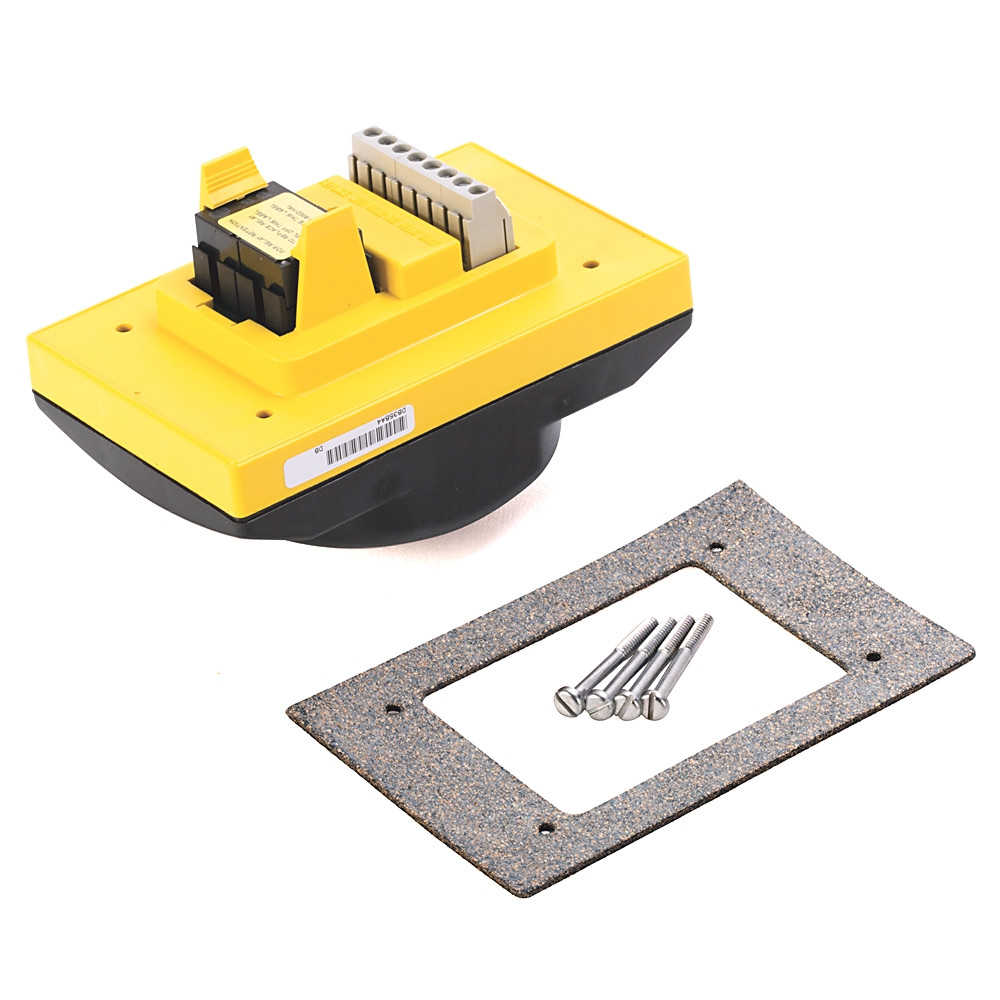

| Product Type | Electronic Palm Button |
|---|
| Spring-return | False |
|---|---|
| Mounting type | Flush mount |
| Shock | Tested @ 100 G (mechanical durability) |
| Vibration | Endurance: tested @ 10 G, 1.52 mm displacement |
| Tightening torque | 9 in-lb |
| Operating force | Zero |
| Degree of protection (IP) | IP66 |
|---|---|
| List of degrees of protection (NEMA) | 4, 13 |
| Connection type | Terminal wiring |
| Touch button type | Heavy industrial line |
| Degree of protection (NEMA) | 4 |
| Housing/guard | Valox 357 |
| List of degrees of protection (IP) | IP2X, IP66 |
| Operating temperature | -25 °F |
|---|---|
| Storage temperature | -40 °F |
| Humidity | 95% RH from 25…50 °C (77…122 °F) (full ops) |
| Gasket | 1/16 in cork-BUNA-N |
|---|
| Input voltage | Relay type: low voltage, 10…40V DC @ 20…30V AC |
|---|---|
| Electrical life cycle | Relay output 150000 ops @ 5 A inductive, 2.5 A resistive |
| Switching function latching | False |
| OFF-delay, max | 60 ms |
| ON-delay, max | 76 ms |
| Output type | Relay output |
| Wire size | #22…12 AWG (0.5…4 mm²) |
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 7.595 |
| Lead Time | 5 |
| Dimension Width | 8.788 |
| Dimension Length | 11.989 |
| Stock Status | NON_STOCKED |
| Weight | 0.408 |
| Weight Unit | KG |
| Dimension Unit | CM |
