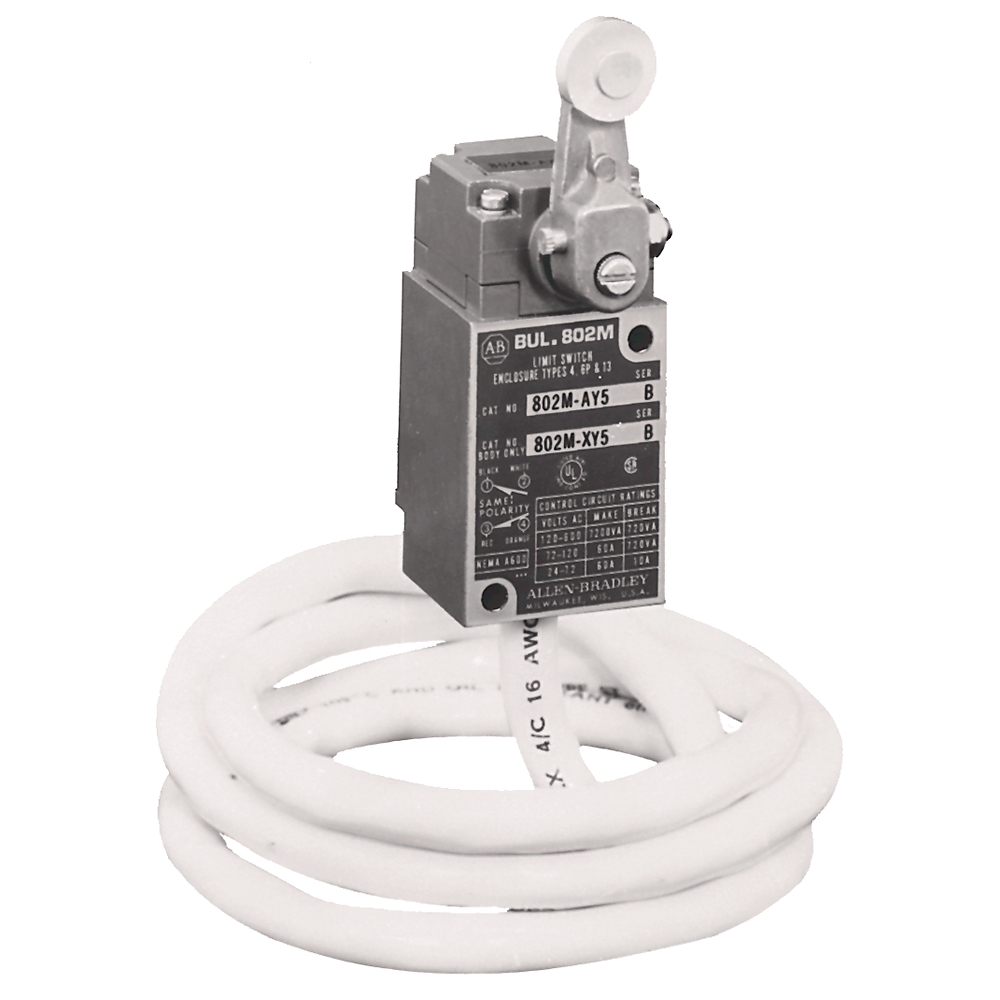

Technical Specifications
Mechanical
| Suitable for safety functions | No |
|---|---|
| Degree of protection (NEMA) | 13 |
| Degree of protection (IP) | IP67 |
| List of degrees of protection (NEMA) | 1, 4, 6P, 13 |
| Special feature | Complete switch |
| Torque to operate contacts, max | 0.56 Nm |
| Mode of operation | CW and CCW operation |
| Travel to operate contacts, max | 8° |
| Travel to reset contacts, max | 4° |
| Travel, max | 86° |
| Actuation type | Lever type, spring return, short trip |
| Connection type | 5 foot cable |
| Switching function latching | No |
| Construction type housing | Cuboid |
Electrical
| With status indication | No |
|---|---|
| Number of circuits | 2 circuit |
| Indicating lights | No indication light |
| Continuous carrying current | 2 circuits same polarity: maximum 5 A per pole @ 24V DC |
| Contact rating | 2 circuits same polarity: maximum 1.1 A per pole @ 24V DC |
| Contact rating, break | 2 circuits same polarity: maximum 720VA per pole @ 600V AC, 50/60 Hz, AC-15 (A600) |
| Contact rating, make | 2 circuits same polarity: maximum 7200VA per pole @ 600V AC, 50/60 Hz, AC-15 (A600) |
| Output electronic | No |
Environmental
| Ambient temperature during operating | 0 °C |
|---|---|
| NEMA rating designation | 2 circuits same polarity: A600/AC-15 |
| Ambient temperature | 0…80° (32…176°), minimum temperature based on the absence of freezing moisture or water |
Construction
| Width of sensor, approx | 2 Circuit: 41.3 mm |
|---|---|
| Height of sensor, approx | 2 Circuit: 57.9 mm |
| Length of sensor, approx | 2 Circuit: 119 mm |
