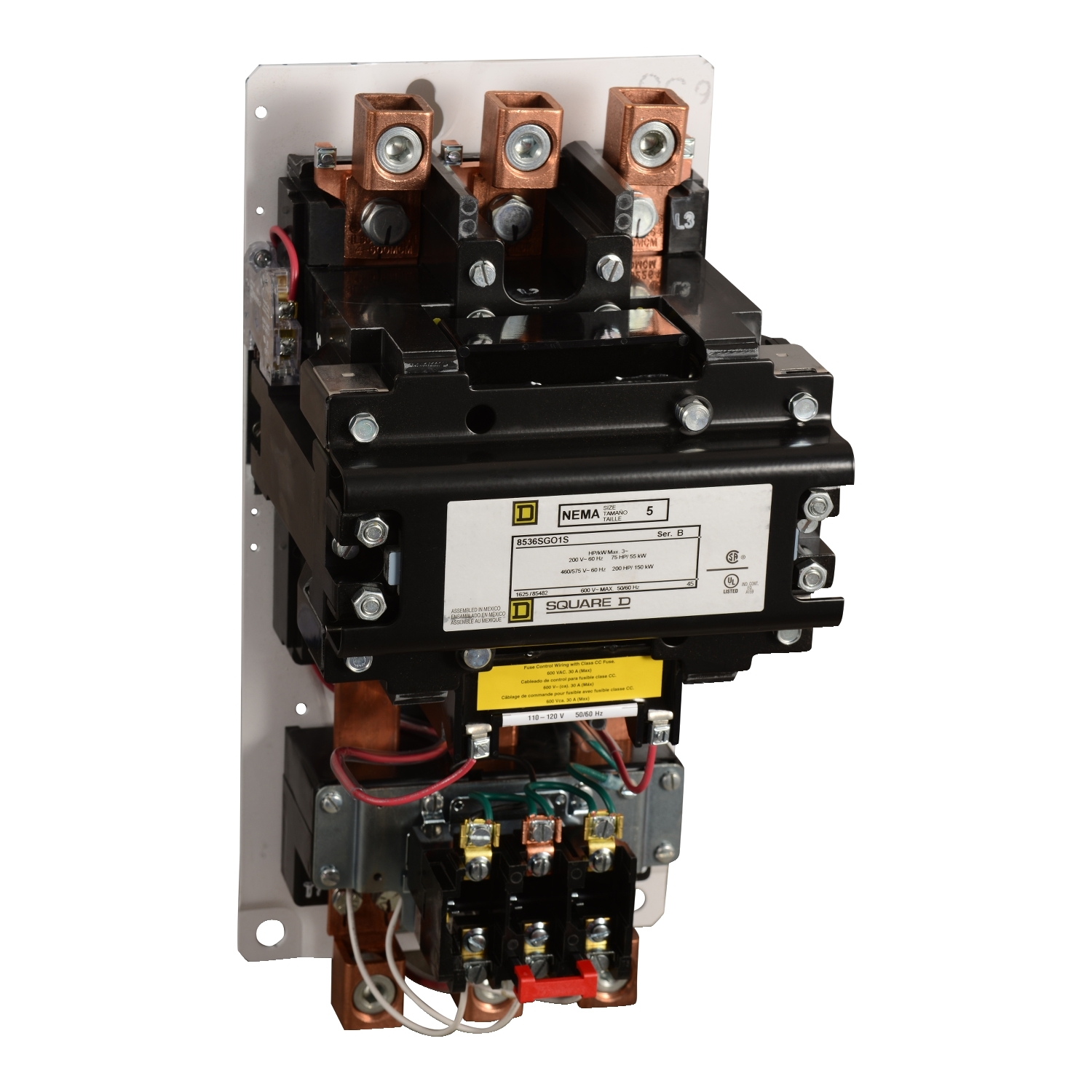

8536SGO1V02S, NEMA motor starter, Type S, nonreversing, Size 5, 270A, 200HP at 460VAC, 10kA SSCR, 3 phase, 3 pole, melting alloy, 120VAC coil, open [TAA]
MXN $174,849.00 - (IVA Incluido) + Envío
Sin existencias
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 5 non-reversing starter has a 270 ampere rating. This NEMA Size 5 motor starter has 3 phase ratings of 75 HP at 200 VAC, 100 HP at 230 VAC and 200 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 10 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 17.56 inches tall, 8.56 inches wide and 8.75 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
Marca:Schneider Electric
| Product Type | Motor starter |
|---|---|
| Product Range | S |
| Starter Type | Non reversing |
| NEMA Size | 5 |
|---|---|
| Rated Current | 270 A |
| Number of Poles | 3P |
| Maximum Voltage Rating | 600 V AC |
| Phase | 3 phase |
| Type of Overload | Melting alloy 3 |
| Horsepower Rating | 75 HP 200 V AC 100 HP 230 V AC 200 HP 460 V AC 200 HP 575 V AC |
| SCCR | Circuit-breaker: 10 kA at 600 V AC Fuse: 10 kA at 600 V AC |
| Coil Voltage | 110 V AC 50 Hz 120 V AC 60 Hz |
| Control Circuit Type | Separate control circuit |
| Control Units | No control units |
| Pilot Light | Without pilot light |
| Auxiliary Contacts | Uden |
| Terminal Type | Screw clamp terminals |
| Height | 17.56 in (446.02 mm) |
| Width | 8.56 in (217.42 mm) |
| Depth | 8.75 in (222.25 mm) |
| Enclosure Type | Not rated (open device) |
|---|---|
| Certifications | UL Listed CSA NEMA |
| Category | US10CP121194 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901854821 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.30 in (26.162 cm) |
| Package 1 Width | 11.00 in (27.940 cm) |
| Package 1 Length | 19.80 in (50.292 cm) |
| Package 1 Weight | 55.900 lb(US) (25.356 kg) |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 40.00 in (101.600 cm) |
| Package 2 Width | 40.00 in (101.600 cm) |
| Package 2 Length | 48.00 in (121.920 cm) |
| Package 2 Weight | 1341.999 lb(US) (608.720 kg) |
| Compliance | TAA |
|---|
| Warranty | 18 months |
|---|
| Peso | 0.025356 kg |
|---|---|
| Dimensiones | 51 × 28 × 26.162 cm |
