854J-10TL4, Light Module 40 mm Stack Light
MXN $5,179.00 - (IVA Incluido) + Envío
Sin existencias

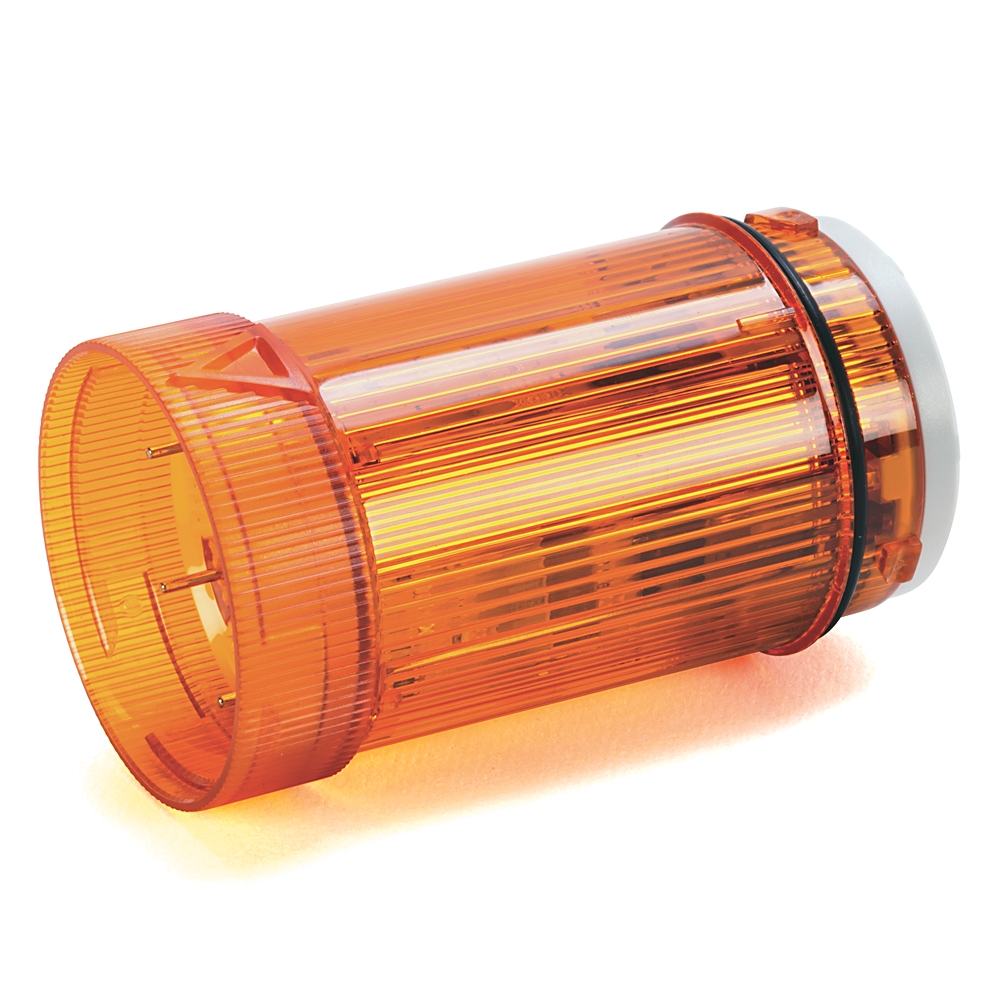

Light Module 40 mm Stack Light
Marca:Allen-Bradley
Technical Specifications
Mechanical
| Outer diameter | 43 mm |
|---|---|
| List of degrees of protection (NEMA) | 4, 4X, 13 |
Construction
| Degree of protection (NEMA) | 13 |
|---|---|
| Lens color | Red |
| Lamp life rating | Average life under static, no vibration, conditions: 50000 h @ 120V AC |
| Degree of protection (IP) | IP66 |
Electrical
| Voltage type | AC |
|---|---|
| Function | Continuous light |
| Current consumption | Red LED: 30 mA @ 120V AC |
| Estimated light output | Red LED: 2392 mcd @ 120V AC |
| Lamp type | LED |
| Operating voltage at AC 50 Hz | 110 V |
| Operating voltage at AC 60 Hz | 120 V |
| Leakage current impact | All light modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation |
Accessory
| Material | Polycarbonate |
|---|
Environmental
| Operating temperature | -30 °C |
|---|---|
| Storage temperature | -30 °C |
| Peso | 0.063503 kg |
|---|---|
| Dimensiones | 9.6 × 6.2 × 5.99 cm |
| Marcas | Allen-Bradley |
Marca
Allen-Bradley
Documentation
| RESOURCE | PUBLICATION NUMBER |
|---|---|
| Selection Guide | 854-SG001 |
| Technical Data | 855-TD001 |
Find all available product literature for this product in the
Literature Library results.
