Lens Color | Amber |
---|---|

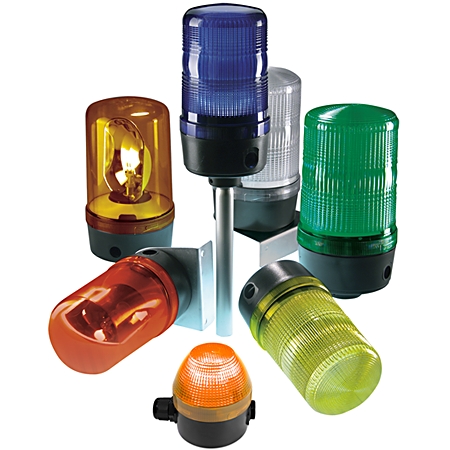

Product Family | 120mm Industrial Beacon |
Nominal voltage | 24 V |
---|---|
Type of current | AC/DC |
Strobe energy | 15 j |
Nominal current | 1.3A @ 24V AC/DC |
Function | Strobe beacon (not available in 12V AC/DC) |
Flashing/strobe frequency | 1 Hz |
Xenon strobe tube | Helical |
Strobe tube socket | Terminals |
Lens color | Amber |
---|---|
Replacement lenses | Fresnel |
Replacement lamps | Xenon Strobe tube |
Housing pole mount base | 120 mm: Aluminium die-cast, powder-coated |
Degree of protection (NEMA) | 13 |
Degree of protection (IP) | IP65 |
Housing base material | Polycarbonate |
Housing lenses | Polycarbonate |
Housing bracket | Powder-coated steel |
Mounting for NPT conduit | For indoor and outdoor |
Operating temperature | -25 °C |
---|---|
Storage temperature | -25 °C |
Base type | 1/2 in NPT conduit mount |
---|---|
List of degrees of protection (NEMA) | 4, 4X, 13 |
Terminals | Up to 2.5 mm2 AWG) |
Peso | 1.415 kg |
---|---|
Dimensiones | 20.9 × 20.8 × 33.6 cm |
Marcas | Allen-Bradley |
Marca
Rockwell Automation
Type | Resource | Publication |
---|---|---|
Technical Data | 855-td001_-en-p | 855-TD001 |
855-td001_-en-p
Technical Data
855-TD001 |
