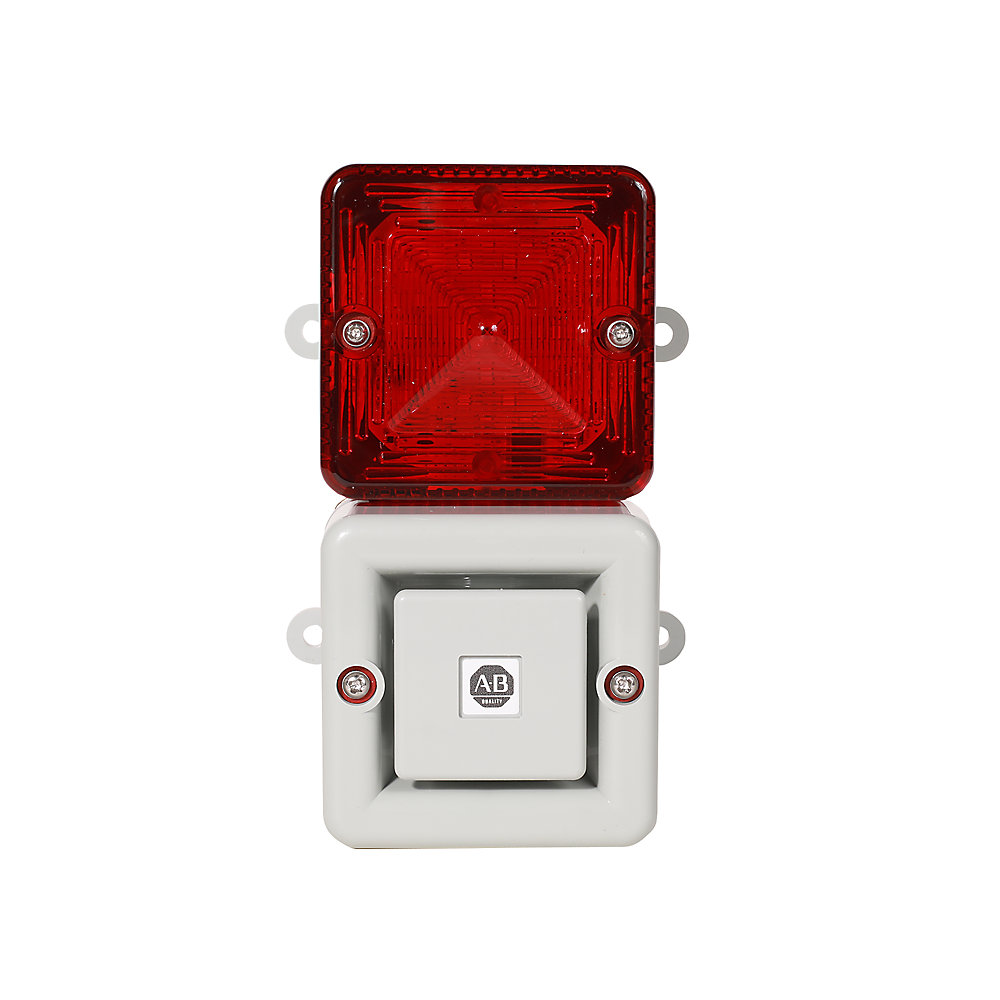

855H-BCA10BDR4, Industrial Horn 115V AC with beacon

MXN $20,807.00 - (IVA Incluido) + Envío

13 disponibles

Industrial Horn 115V AC with beacon

Comprar Ahora
SKU: 855H-BCA10BDR4

Technical Specifications

Environmental

Degree of protection (NEMA) 3R
Degree of protection (IP) IP66
Storage temperature -40 °C
Operating temperature -25 °C

Construction

Loudness 104 dB
Colour housing Grey
Lens color Red
Material Horn cover and base: ABS, Beacon housing: polycarbonate, Beacon lens: polycarbonate, Gasket (cover to base): Nitrile 70, Gasket (enclosure back to wall): Nitrile 70, Gasket (horn to beacon): Nitrile 70, Gasket (screw mounting hole): fiber
Material housing Plastic

Electrical

Type of current AC
Nominal voltage 115V
Operating voltage 115V AC @ 50/60 Hz (±10%)
Current consumption 120 mA @ 115V AC
With contact No
Flashing frequency 1 Hz
Xenon lamp rating 5 J output

Mechanical

Vibration 3 G peak
Shock 15 G peak
List of degrees of protection (NEMA) 13, 3R
Product type Industrial horn with beacon
Horn type 104 dB/32 selectable tones grey, 3 circuit AC or DC
Mounting option Standard base/thin-wall conduit feed
Pneumatically operated No
Peso 0.637 kg
Dimensiones 19.05 × 14.22 × 11.43 cm
Marcas

Allen-Bradley

Marca

Allen-Bradley

Documentation

RESOURCE PUBLICATION NUMBER
Technical Data 855-TD001
