| Nominal Sensing Distance | 8 mm Sensing Distance |
|---|---|
| Output | AC Normally Closed |
| Product Type | Inductive Sensor |
| Diameter sensor | 18 mm |
|---|---|
| Nominal sensing distance | 8 mm |
| Degree of protection (NEMA) | 13 |
| Shock | 30 G (1.06 oz), 11 ms |
| Vibration | 55 Hz, 1 mm Alitude, 3 planes |
| Enclosure type rating | NEMA 1, 2, 3, 3R, 4, 4X, 6, 6P, 12, IP67 (IEC529) all models, 1200 psi washdown, toughlink and micro connector versions are also rated IP69K (IEC 529) |
| Voltage type | AC/DC |
|---|---|
| Type of electric connection | Cable |
| Connection type | Toughlink #18 AWG 2 m |
| Connection style | Cable: 2 m length, A2 – 2-conductor #22 AWG PVC, C2 – 2-conductor #22 AWG toughlink, H2 – 2-conductor #18 AWG toughlink, Quick disconnect: 3 pin mini style, 3 pin micro style, 4 pin EAC micro style |
| Material housing | Metal |
| Type of actuation | Metallic Target |
| Housing material | Stainless steel face and barrel |
| Load current | 5 mA |
|---|---|
| Hysteresis | 7% typical |
| Inrush current | ≤4 A (one cycle) |
| Leakage current | ≤1.9mA @ 120V AC |
| Voltage drop | ≤10V @ 5…250mA |
| Special feature | Short barrel |
| Output configuration | Normally closed AC |
| Repeatability | ≤10% at constant temperature |
| Correction factor | Steel: 1 |
| Status indicator | Red: Output energized, Green: Power, Short circuit: Red and green flashing |
| Protection type | False pulse, transient noise, short circuit (trigger @ 8 A typical) and overload (trigger @ 320 mA typical) |
| Product type | Metal face |
| Operating voltage | 20…250V AC/DC |

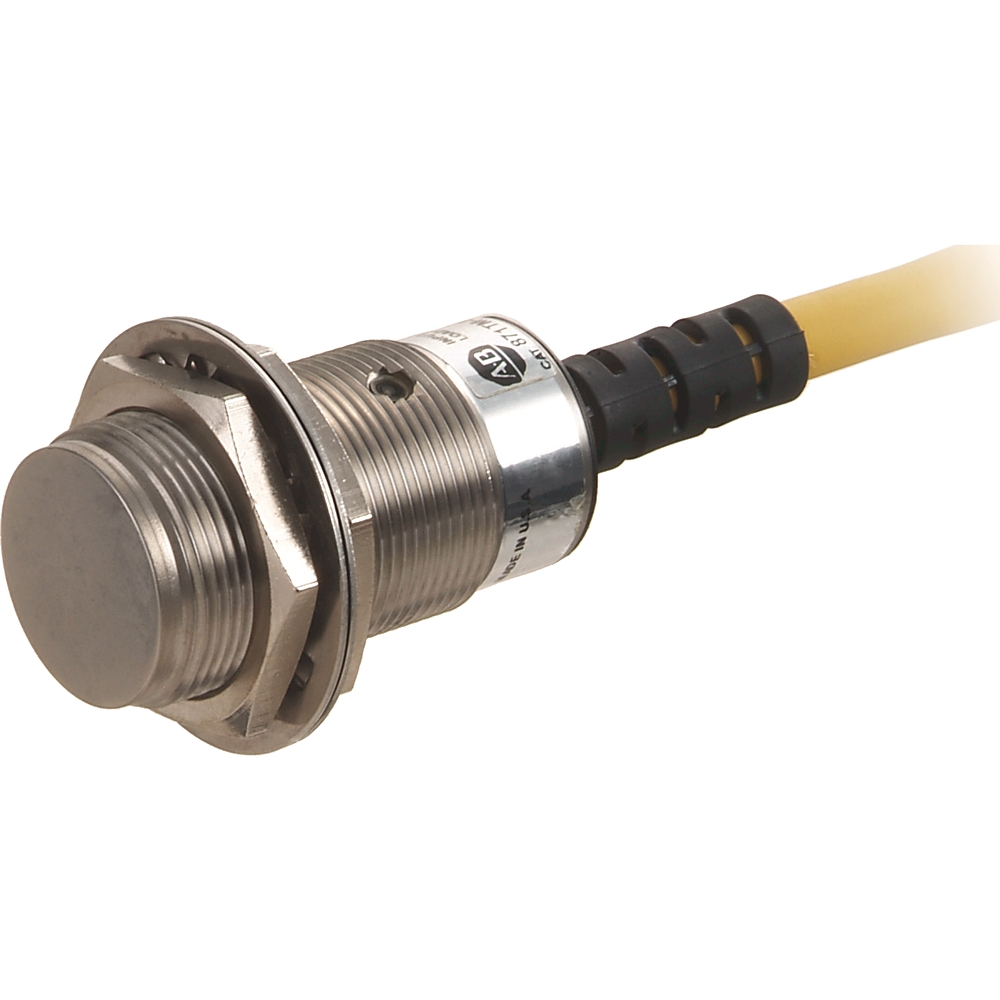

| Description | Metal face inductive sensor |
| Operating temperature | -25 °C |
|---|
