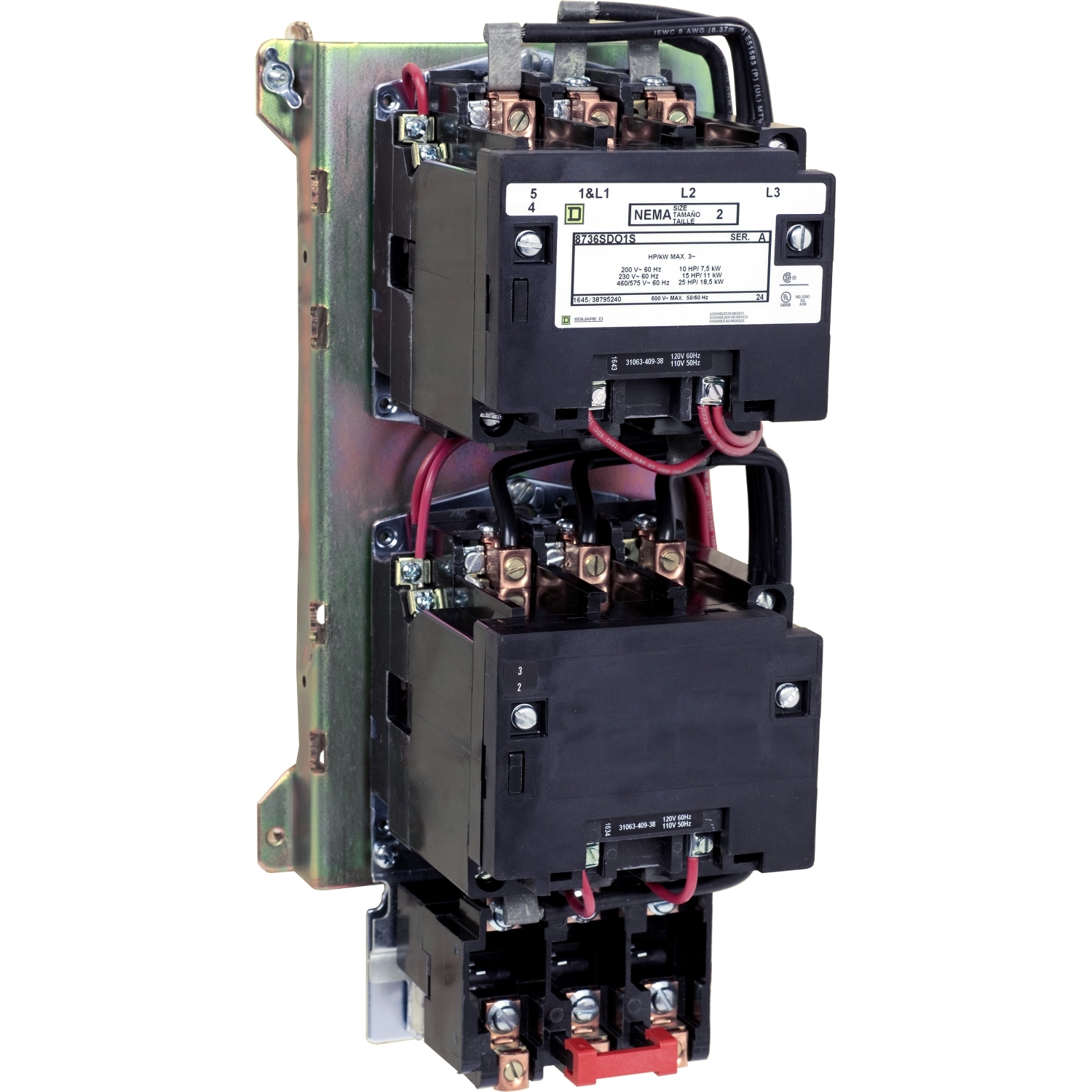

8736SDO1V02S, NEMA starter, Type S, reversing, vertical, Size 2, 45A, 25HP at 575VAC, 5kA SSCR, 3 phase, 3 pole, melting alloy overload, 120VAC coil, open

MXN $36,474.00 - (IVA Incluido) + Envío

1 disponibles

Type S NEMA reversing magnetic starters are used for full voltage starting, stopping, and reversing AC squirrel cage motors. NEMA 8736 reversing starters are available in NEMA Sizes 00 to 7 and have ratings up to 810 amperes. NEMA reversing starters consist of two 8502S NEMA contactors that are mechanically and electrically interlocked and an overload relay. Sizes 0-5 reversing starters are available in either horizontal or vertical arrangements. This reversing starter is arranged vertically. This 3 pole NEMA Size 2 reversing starter has an 45 ampere rating. This three phase NEMA Size 2 reversing starter has 10 HP at 200 VAC, 15 HP at 230 VAC and 25 HP at 460 and 575 VAC ratings. This reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This NEMA reversing starter is an open device without an enclosure. This starter is 13.48 inches tall, 6.75 inches wide and 6.03 inches deep. A wide variety of accessories are available for Type S starters. Type S reversing NEMA motor starters are UL listed and CSA certified.

Comprar Ahora

Categoría: Contactors

Etiqueta: Contactors

SKU: 8736SDO1V02S

NEMA starter, Type S, reversing, vertical, Size 2, 45A, 25HP at 575VAC, 5kA SSCR, 3 phase, 3 pole, melting alloy overload, 120VAC coil, open

8736SDO1V02S

Main
Product Type	Starter
Product Range	S
Starter Type	Reversing

Complementary
NEMA Size	2
Rated Current	45 A
Number of Poles	3P
Mounting Orientation	Vertical
Wiring Mode	3 wires
Maximum Voltage Rating	600 V AC
Phase	3 phase
Type of Overload	Melting alloy 3
Horsepower Rating	10 HP 200 V AC 15 HP 230 V AC 25 HP 460 V AC 25 HP 575 V AC
SCCR	Circuit-breaker: 5 kA at 600 V AC Fuse: 5 kA at 600 V AC
Coil Voltage	110 V AC 50 Hz 120 V AC 60 Hz
Control Circuit Type	Separate control circuit
Control Units	No control units
Pilot Light	Without pilot light
Auxiliary Contacts	Without
Terminal Type	Screw clamp terminals
Height	13.48 in (342.39 mm)
Width	6.75 in (171.45 mm)
Depth	6.03 in (153.16 mm)

Environment
Enclosure Type	Not rated (open device)
Certifications	UL Listed CSA

Ordering and shipping details
Category	US10CP121272
Discount Schedule	0CP1
GTIN	785901455639
Returnability	No
Country of origin	MX

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	10.0000000000 in (25.4 cm)
Package 1 Width	13.700 in (34.798 cm)
Package 1 Length	17.900 in (45.466 cm)
Package 1 Weight	18.66 lb(US) (8.464 kg)

Contractual warranty
Warranty	18 months

Show More Show Less

Peso	5 kg
Dimensiones	15 × 15 × 15 cm
Marcas	Schneider Electric
