| Housing Material | Standard Materials |
|---|---|
| Wire Size and Type | 22 AWG PVC |
| Type of mechanical accessory/spare part | Other |
|---|---|
| Panel mount thread size | 1/2 in 14NPT |

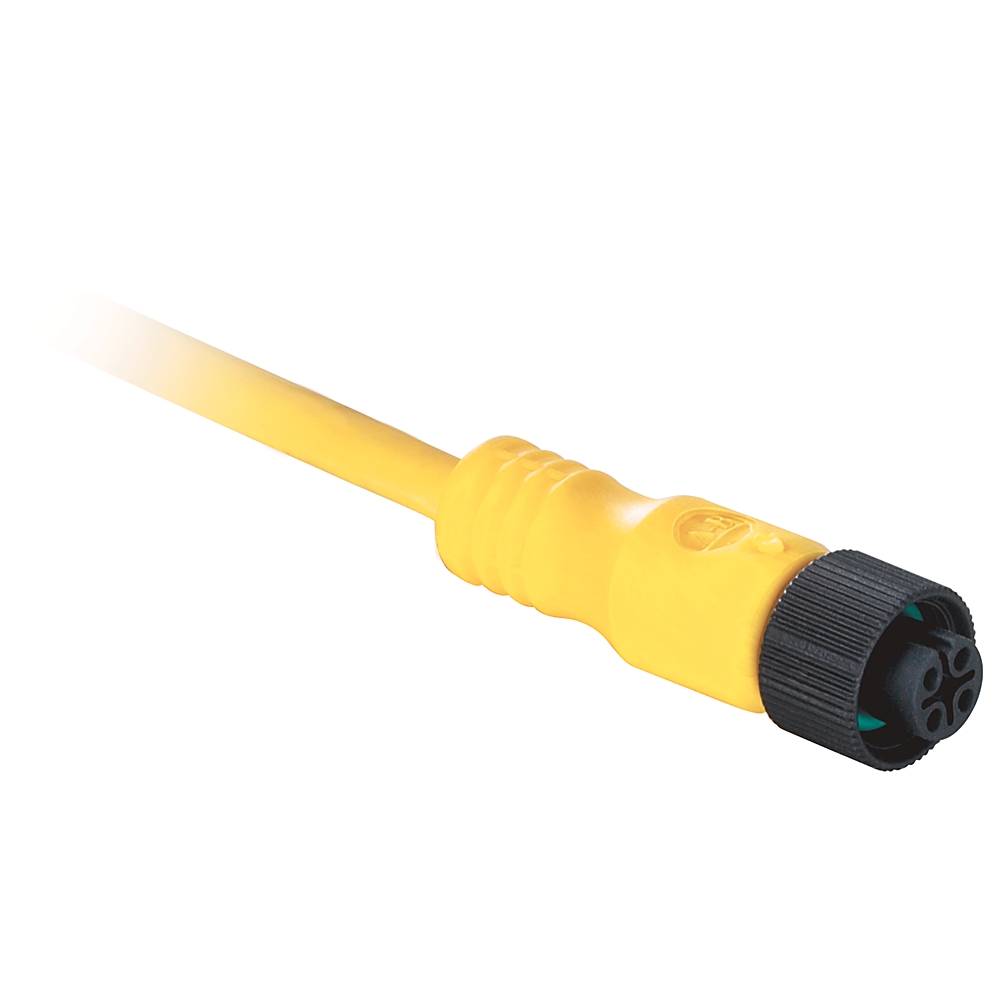

| Connector type | DC Micro (M12) |
| Connector insert material | Nylon or TPU |
| Number of pins | 5-pin |
| O-ring material | Buna-N |
| Receptacle shell material | Black anodized machined nickel |
| Enclosure type rating | NEMA 1, 3, 4, 6P and IEC IP68 |
| Contact material | Gold over nickel-plated brass |
| Assembly rating | 250V @ 4A |
| Cable type | Oil-resistant PVC, 18 or 22 AWG stranded copper, 300V, UL recognized and CSA certified |
| Connector style | Straight female (internal threads) for all parts except for Mini and M23 where it represents straight female (external threads) |
| Type of electrical accessory/spare part | Connecting cable |
|---|---|
| Wire size and type | 22 AWG, PVC |
| Color code | IEC or US or Auto |
| Conductor length | 0.3 m |
|---|
| Operating temperature | -40 °C |
|---|
