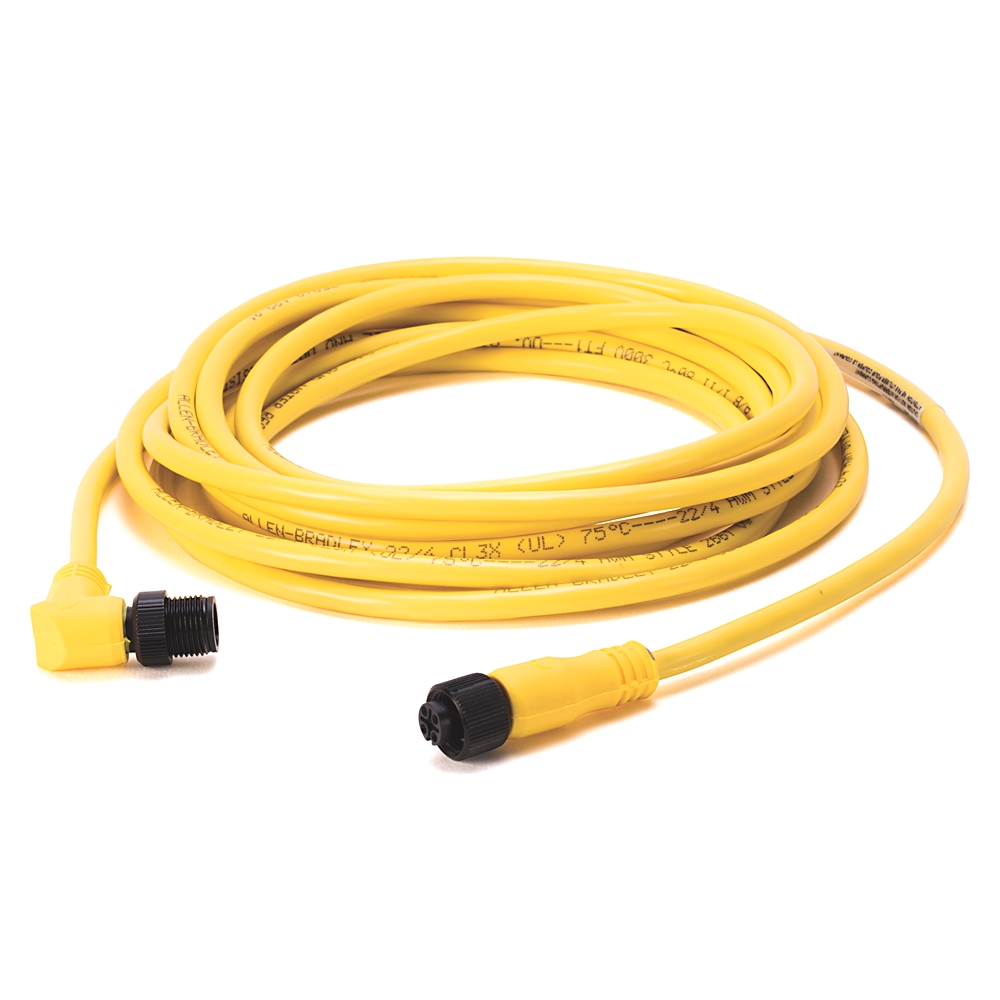

Name: 889D-F4ACDE-4, 889 DC Micro Cable
SKU: 889D-F4ACDE-4
Availability: OutOfStock

Cable Jacket	PVC Cbl, Yellow, UnShld,PVC Cable, Yellow, 22 AWG
Female End Connector Style	Female, Straight (int threads),Female, Straight (Int Threads)
Male End Connector Style	Male, Right Angle (ext. thre),DC Micro,Right Angle,Male(Ext. Threads),DC Micro (M12)
Male Pin Count	4-pin
Second End Conductors	Same as First End
Wire Size	22 AWG

Number of poles	4
Degree of protection (IP), mounted	IP69K
Operating temperature	-20 °C
Number of pins	4-pin
Second end conductors	Same as first end
Enclosure type rating	NEMA 6P, 1200 psi (8270 kPa) washdown, IP69K
First end connector style	Female, straight (internal threads, except mini receptacles)
Cable type	Oil-resistant PVC jacket, 18 or 22 AWG conductors, 300V
Material	Coupling nut: Epoxy-coated Zinc, Molded oil-resistant PUR, Contact: Gold over Nickel-plated Brass
Bend radius	10 x diam

Rated voltage	250 V
Rated current In	4 A
Assembly rating	4A @ 250V
Cable rating	UL AWM style 2661 VW-1 105°C @ 300V, CSA AWM A/B I/II 80°C @ 300V FT1, UV oil and water resistant

With shield connection	False
Cable length	4000 mm
Screw-in thread	M12
Second end termination style	Right angle, male (external threads)
Second end termination type	DC micro (M12)
Diameter, approx	Connector: 14 mm (0.56 in) @ straight male
Length, approx	Connector: 50.8 mm (2.0 in) @ straight male
Height, approx	Connector: 31.8 mm (1.25 in) @ right angle male
Product type feature	Standard- Epoxy coated Zinc for DC micro,AC micro, mini QD with 2-6 pin, Standard-Nickel plated Brass for pico, Standard-Aluminum with clear sealant for mini QD with 7-12 pin
Diameter	2 core cable: 5 mm (0.21 in), 3 core cable: 5 mm (0.21 in), 4 core cable: 5 mm (0.21 in), 5 core cable: 6.5 mm (0.25 in), 4 core cable (18 AWG): 6.5 mm (0.25 in)
Material of contact surface	Gold
Material housing	Plastic
Type of plug-in contact, inner side	Female (bus)
Mounting method	Freely positionable
