| Cable Jacket | PVC Cbl, Black, UnShld,PVC Cable, Yellow, 24 AWG |
|---|---|
| Second End Conductors | Same as First End |
| Number of poles | 8 |
|---|---|
| Degree of protection (IP), mounted | IP69K |
| Number of pins | 8-pin |
| Second end conductors | Same as first end |
| Enclosure type rating | IP67, NEMA 6P, 1200 psi (8270 kPa) washdown, IP69K |

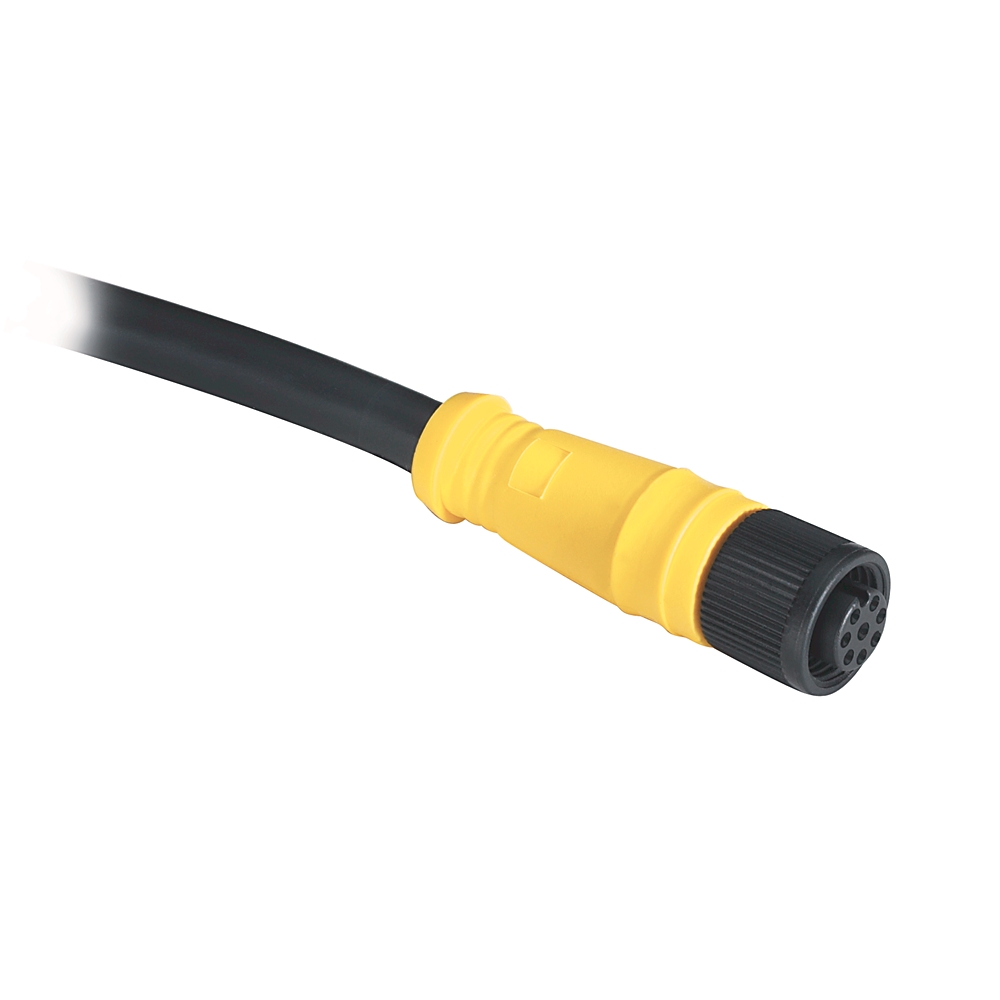

| First end connector style | Female, straight (internal threads, except mini receptacles) |
| Cable type | Oil-resistant PVC jacket, 18 and 22 AWG or 24 AWG conductors, 300V |
| Material | Coupling nut: Epoxy-coated Zinc, Molded oil-resistant PUR, Contact: Gold over Nickel-plated Brass |
| Bend radius | 10 x diam |
| Rated voltage | 36 V |
|---|---|
| Rated current In | 1.5 A |
| Assembly rating | 1.5A @ 30V AC/36V DC |
| Cable rating | 4 & 5 core (PUR): UL AWM style 20866 VW-1 80°C @ 300V, CSA AWM A/B I/II 80°C @ 300V FT1, UV oil and water resistant 300V, 8 core (PUR): UL AWM style 20866 90°C @ 300V, CSA II A 90°C @ 300V, TPE: UL AWM style 20327 VW-1 105°C @ 300V, CSA AWM A/B I/II 105 °C 300 |
| With shield connection | False |
|---|---|
| Cable length | 15000 mm |
| Second end termination style | No connector |
| Second end termination type | Cable – IEC standard color code |
| Diameter, approx | Connector: 14 mm (0.56 in) @ straight female |
| Length, approx | Connector: 47 mm (1.85 in) @ straight female |
| Product type feature | Standard- Epoxy coated Zinc for DC micro,AC micro, mini QD with 2-6 pin, Standard-Nickel plated Brass for pico, Standard-Aluminum with clear sealant for mini QD with 7-12 pin |
| Diameter | 4 core cable (PUR): 5 mm (0.21 in), 4 core cable (18 AWG TPE): 7 mm (0.28 in), 4 core cable (22 AWG TPE): 4.9 mm (0.19 in), 5 core cable: 6.5 mm (0.25 in), 7 core cable: 7.4 mm (0.29 in), 8 core cable: 7.4 mm (0.29 in) |
| Material of contact surface | Gold |
| Material housing | Plastic |
| Type of plug-in contact, inner side | Female (bus) |
| Mounting method | Freely positionable |
