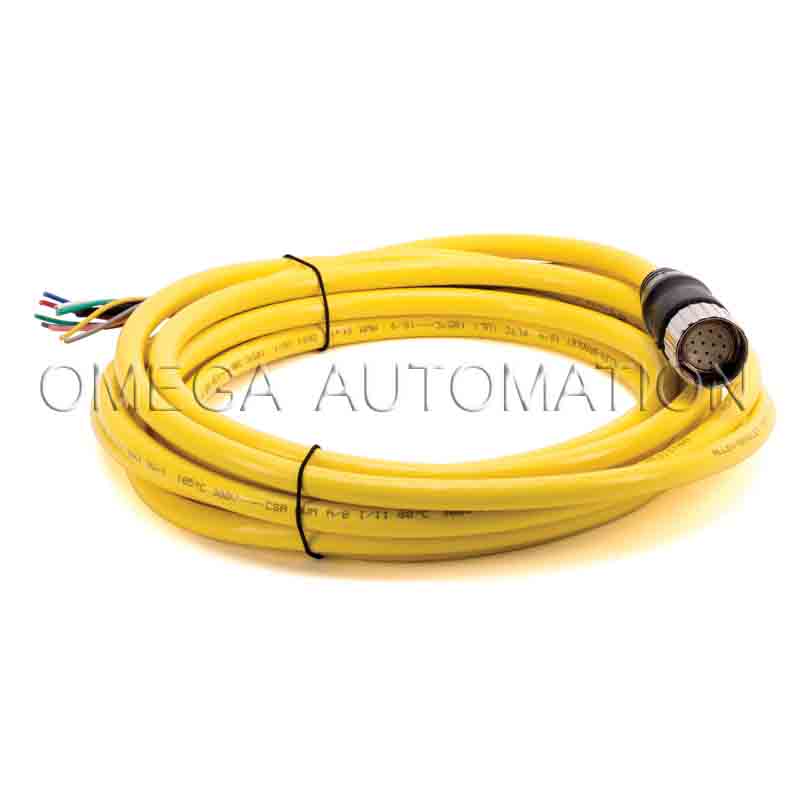

Name: 889M-FX9AE-5, M23 Cable, Female, Straight (Int Threads), Female, Straight (int threads), Standard Materials, 12-Pins / 9-Conductor, 12-Pins / 9-Conductor, Cable, No Connector, Cable - IEC Stndrd Color Code, No Connector, Same as First End, PVC Cbl, Yellow, UnShld, 18AWG, PVC Cable, Yellow, 18AWG, Cable - IEC Stndrd Color Code, Standard, 5 m
SKU: 889M-FX9AE-5
Availability: OutOfStock

889M-FX9AE-5, M23 Cable, Female, Straight (Int Threads), Female, Straight (int threads), Standard Materials, 12-Pins / 9-Conductor, 12-Pins / 9-Conductor, Cable, No Connector, Cable – IEC Stndrd Color Code, No Connector, Same as First End, PVC Cbl, Yellow, UnShld, 18AWG, PVC Cable, Yellow, 18AWG, Cable – IEC Stndrd Color Code, Standard, 5 m

MXN $3,174.00 - (IVA Incluido) + Envío

Sin existencias

M23 Cable, Female, Straight (Int Threads), Female, Straight (int threads), Standard Materials, 12-Pins / 9-Conductor, 12-Pins / 9-Conductor, Cable, No Connector, Cable – IEC Stndrd Color Code, No Connector, Same as First End, PVC Cbl, Yellow, UnShld, 18AWG, PVC Cable, Yellow, 18AWG, Cable – IEC Stndrd Color Code, Standard, 5 m

Categoría: Others

Etiqueta: Others

SKU: 889M-FX9AE-5

Technical Specifications

Construction

With shield connection	No
Cable length	5000 mm
Number of conductors	9
Connector type	12-pins
Second end termination style	No connector
Second end termination type	Cable – IEC standard color code
Diameter, approx	Connector: 26.2 mm
Length, approx	Connector: 85 mm
Product type feature	Standard- Epoxy coated Zinc for DC micro, AC micro, mini QD with 2-6 pins, Standard-Nickel plated Brass for pico, Standard-Aluminum with clear sealant for mini QD with 7-12 pins
Diameter	Cable: 10.1 mm
Material of contact surface	Gold
Material housing	Plastic
Type of plug-in contact, inner side	Female (bus)
Mounting method	Freely positionable

Mechanical

Degree of protection (IP), mounted	IP68
Operating temperature	-20 °C
Number of poles	12/9
Second end conductors	Same as first end
First end connector style	Female, straight (internal threads, except mini receptacles)
Cable type	PVC cable, yellow, unshielded, 18 AWG
Material	Coupling nut: Nickel-plated Brass, Connector: molded oil-resistant PUR, Contact: Gold over Nickel-plated Brass
Bend radius	10 x diameter

Electrical

List of degrees of protection (IP), mounted	IP68/IP67
Assembly rating	6 A
Cable rating	300V

Show More Show Less

Peso	0.86 kg
Dimensiones	22.6 × 22.3 × 4.8 cm
Marcas	Allen-Bradley

Marca

Allen-Bradley
