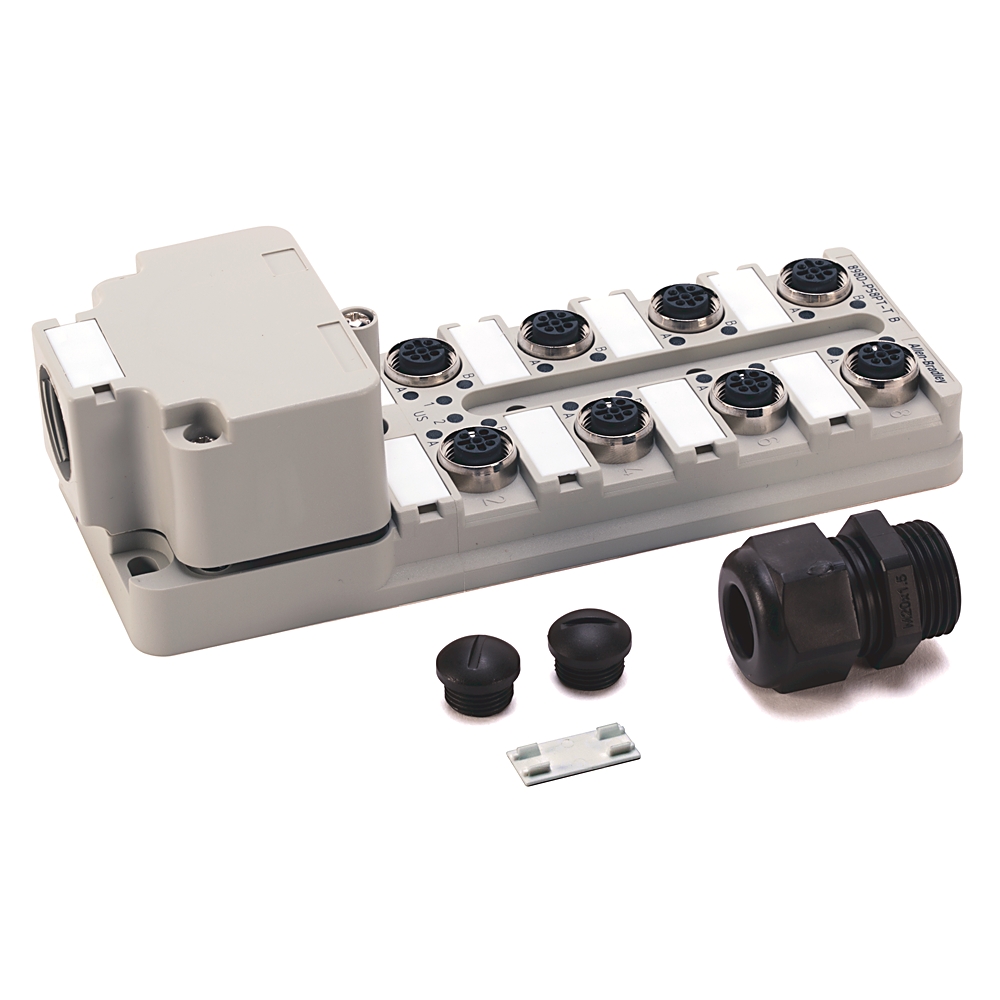

Name: 898D-P58PT-T, Connection System, DC Micro QD (M12), Standard Material, PNP LEDs, 5-pins, 8-port, Parallel - 1 input/port, Ports on Top of Box, Terminal Chamber, --, No cable, No Pins
SKU: 898D-P58PT-T
Availability: InStock

898D-P58PT-T, Connection System, DC Micro QD (M12), Standard Material, PNP LEDs, 5-pins, 8-port, Parallel – 1 input/port, Ports on Top of Box, Terminal Chamber, –, No cable, No Pins

USD $686.99 - (IVA Incluido) + Envío

2 disponibles

Connection System, DC Micro QD (M12), Standard Material, PNP LEDs, 5-pins, 8-port, Parallel – 1 input/port, Ports on Top of Box, Terminal Chamber, –, No cable, No Pins

Comprar Ahora

Categoría: Others

Etiqueta: Others

SKU: 898D-P58PT-T

Technical Specifications

Construction

Number of digital inputs	8
Connector insert material	PBT
Width, approx	60 mm
Depth, approx	41.5 mm
Input pins	5-pin
Cable output description	No cable
Material	Grey pocan
Input port type	DC micro quick disconnect M12
Receptacle shell material	Zinc diecast with Nickel plating
Height, approx	4-port: 102 mm, 6-port: 127 mm, 8-port: 152 mm
Wall mounting/direct mounting	Yes
Cable diameter	6 mm
Product feature type	Standard material
Contact material	Gold-Plated Palladium/Nickel

Electrical

Illumination	PNP LEDs
Degree of protection (IP)	IP67

Mechanical

QD output description	No pins
Output style	Terminal chamber
Wiring configuration	Parallel-1 input/port
Enclosure type rating	IP67, 1200 psi (8270 kPa) washdown
Type of electric connection	Plug-in connection
Cable gland	M20 mounting thread
Port orientation	Ports on top of box

Environmental

Suitable for safety functions	Yes

Show More Show Less

Peso	0.281 kg
Dimensiones	17.5 × 5.1 × 5.1 cm
Marcas	Allen-Bradley

Marca

Allen-Bradley
