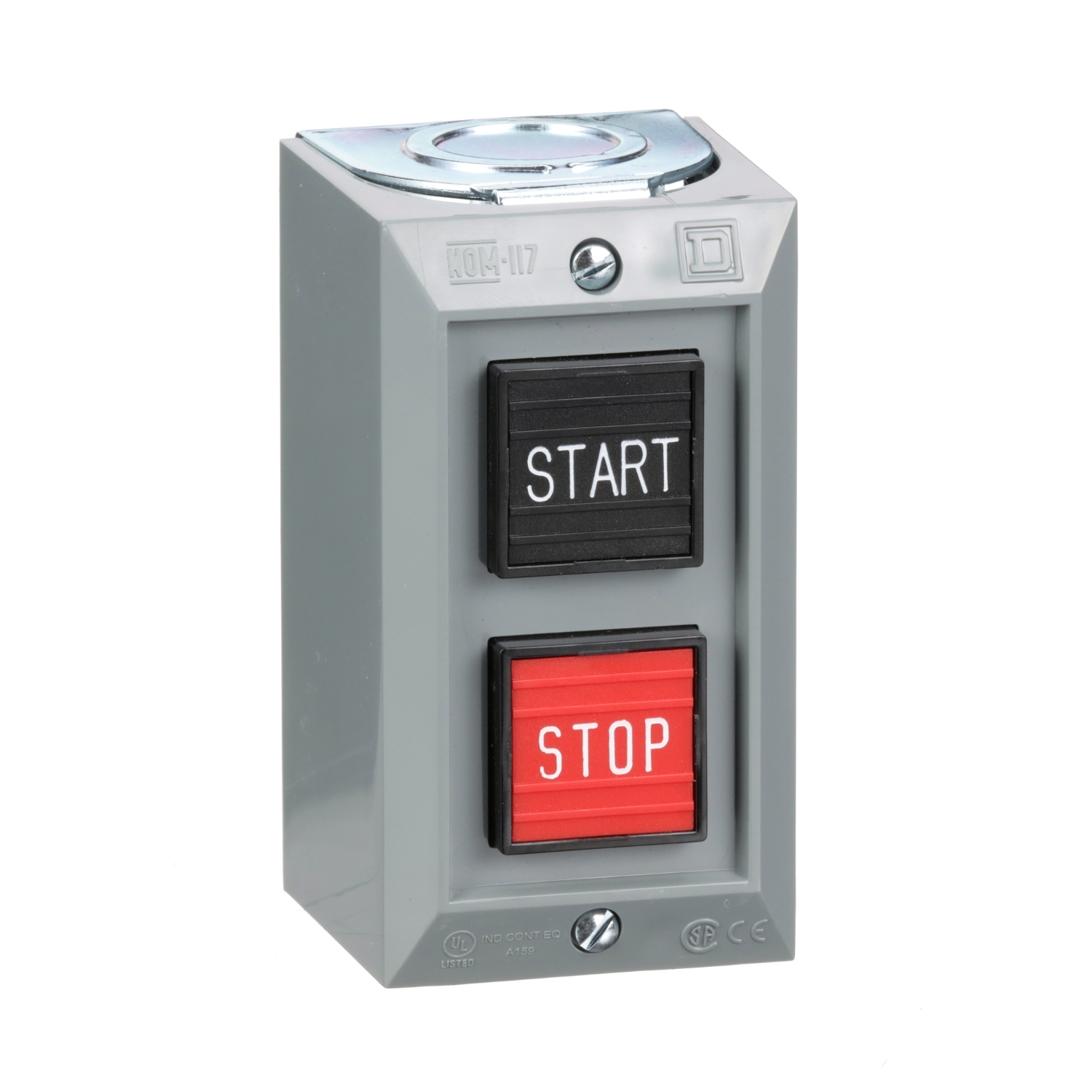

9001BG201, Complete control station, Harmony 9001B, 2 push buttons START/STOP, 5A, 600V AC, 1NO + 1NC, NEMA 1
MXN $1,914.00 - (IVA Incluido) + Envío
184 disponibles

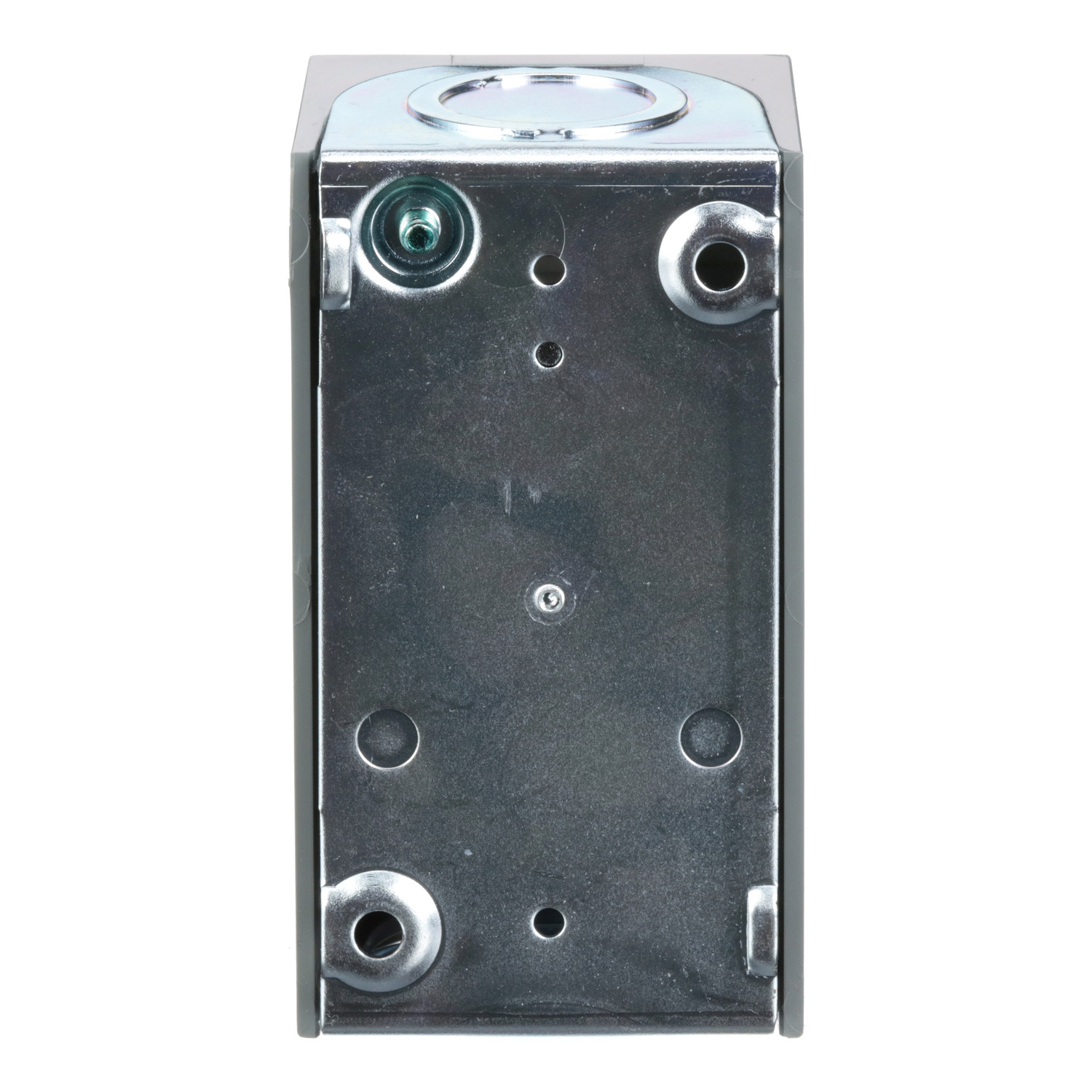

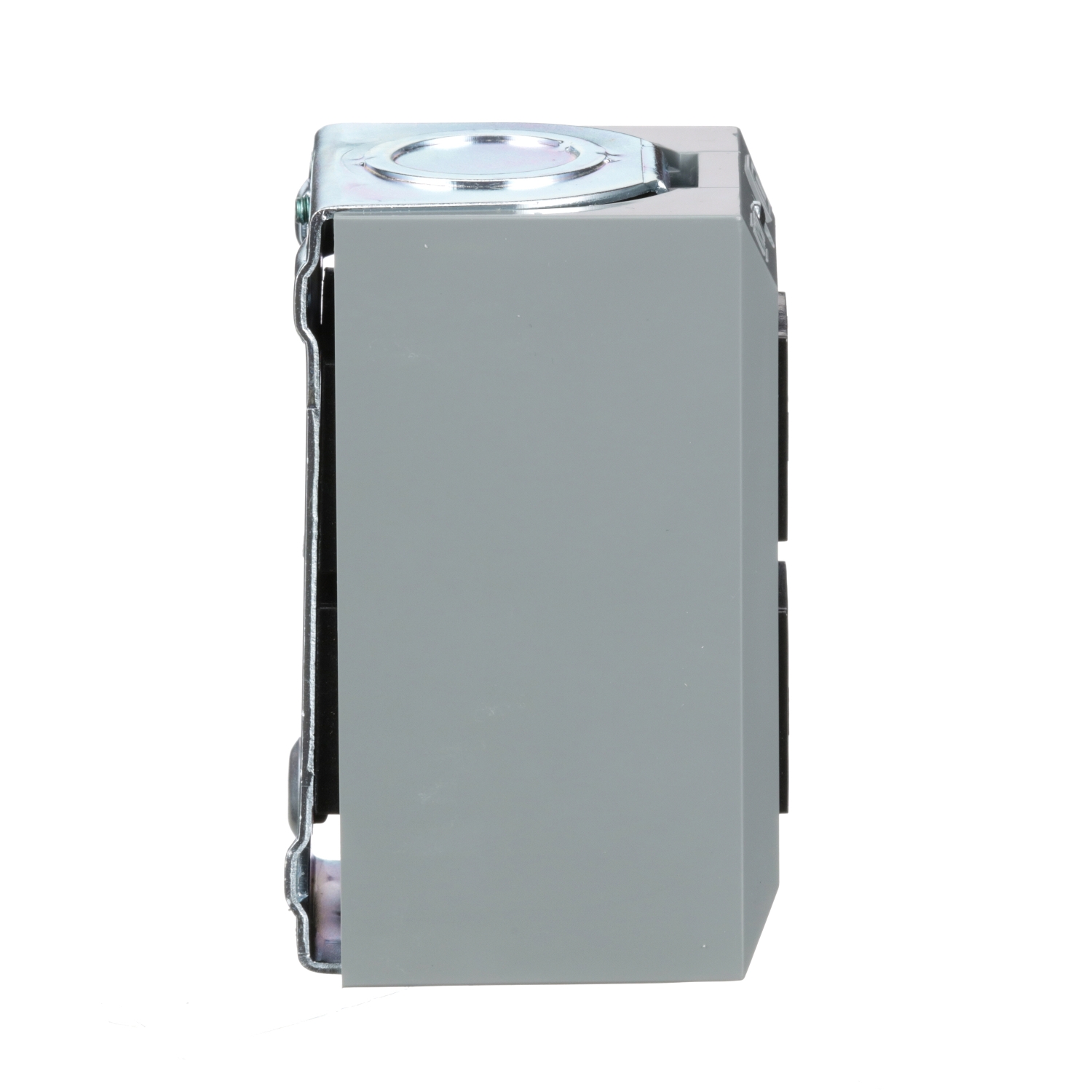

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has two square momentary push buttons. It has a START push button with a normally open contact and a STOP push button with a normally closed contact. This NEMA 1 general purpose control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.
