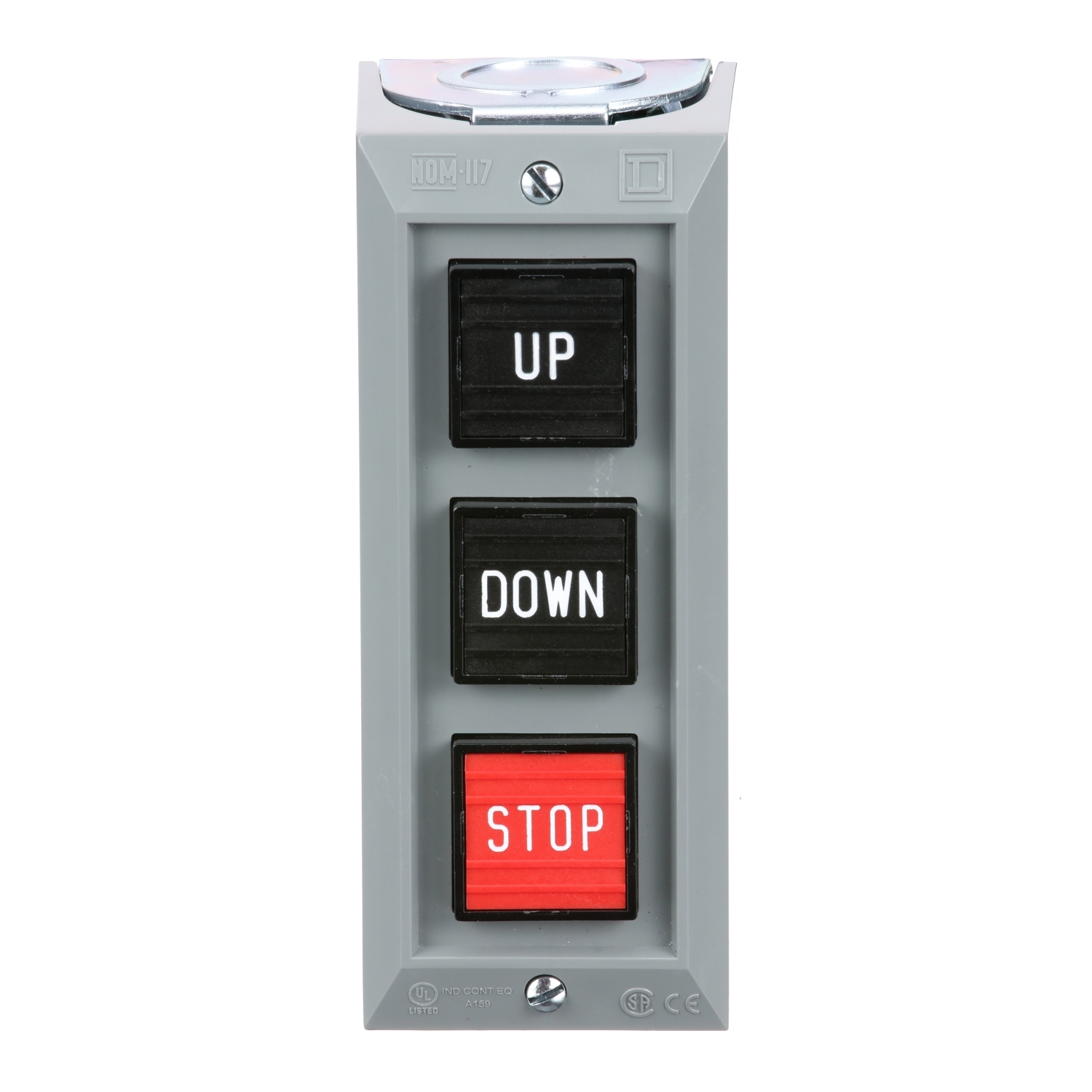

9001BG305, Complete control station, Harmony 9001B, 3 push buttons UP-DOWN-STOP, 5A, 600V AC, NEMA 1

MXN $3,350.00 - (IVA Incluido) + Envío

37 disponibles

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has three square momentary push buttons. It has a UP push button with a normally open and a normally closed contact. It has a DOWN push button with a normally open and a normally closed contact. It also has a STOP push button with a normally closed contact. This NEMA 1 general purpose control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.

Comprar Ahora
SKU: 9001BG305

Complete control station, Harmony 9001B, 3 push buttons UP-DOWN-STOP, 5A, 600V AC, NEMA 1

9001BG305

Main
Range of Product Harmony 9001B
Product or Component Type Complete control station
Device short name 9001BG
Complementary
Control station composition 3 push-buttons UP-DOWN-STOP
Contacts type and composition 2 NO + 3 NC
Connections – terminals Screw clamp terminal
[Ie] rated operational current 5 A 600 V
Device mounting Surface
Type of Installation Indoor
Environment
NEMA degree of protection NEMA 1
Product Certifications UL listed file E42259 CCN NKCR
CSA LR25490 class 3211 03
CE
Environmental characteristic Standard environment
Ordering and shipping details
Category US10CS121421
Discount Schedule 0CS1
GTIN 785901390329
Returnability Yes
Country of origin US
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 2.09 in (5.3 cm)
Package 1 Width 2.5 in (6.4 cm)
Package 1 Length 5.3 in (13.5 cm)
Package 1 Weight 13.4 oz (381.0 g)
Contractual warranty
Warranty 18 months
Peso 5 kg
Dimensiones 15 × 15 × 15 cm
Marcas

Schneider Electric

Marca

Schneider Electric

Product Datasheet
Instruction Sheet
