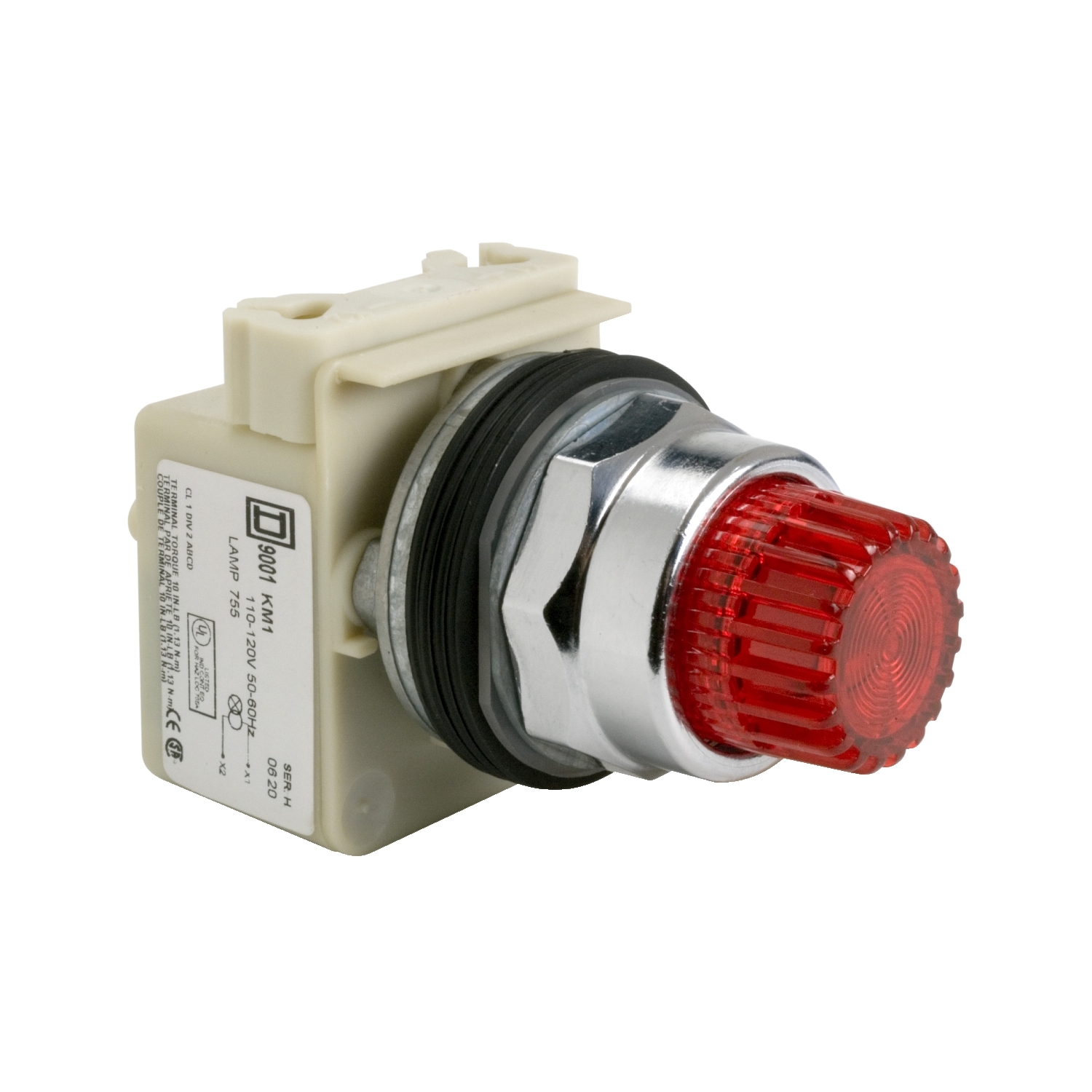

9001K2L1R, Illuminated push-button head, Harmony 9001K, metal, projecting, red, 30mm, spring return, 110-120V

MXN $3,449.00 - (IVA Incluido) + Envío

21 disponibles

This Harmony 9001K, modular consists of illuminated projecting red push button. It has a chromium-plated metal bezel and is supplied with a 110V AC transformer. This illuminated push button with transformer provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Comprar Ahora
SKU: 9001K2L1R

Illuminated push-button head, Harmony 9001K, metal, projecting, red, 30mm, spring return, 110-120V

9001K2L1R

Main
Range of Product Harmony 9001K
Product or Component Type Head for illuminated push-button
Device short name 9001K
Operator profile Red flush
Operator additional information Without guard
Complementary
Mounting diameter 1.2 in (30 mm)
Shape of signaling unit head Round
Type of operator spring return
Bezel material Metal
Cap/operator or lens colour Red
[Us] rated supply voltage 110…120 V
Light block supply Via integral transformer
Operator profile Projecting
Type of operator Spring return
Contacts type and composition Without contact block
Ordering and shipping details
Category US10CS121426
Discount Schedule 0CS1
GTIN 785901350507
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1.800 in (4.572 cm)
Package 1 Width 2.300 in (5.842 cm)
Package 1 Length 3.700 in (9.398 cm)
Package 1 Weight 8.320 oz (235.868 g)
Contractual warranty
Warranty 18 months
Peso 0.236 kg
Dimensiones 5.8 × 9.4 × 4.6 cm
Marcas

Schneider Electric

Marca

Schneider Electric

Product Datasheet
Instruction Sheet
Brochure
Technical Drawing
