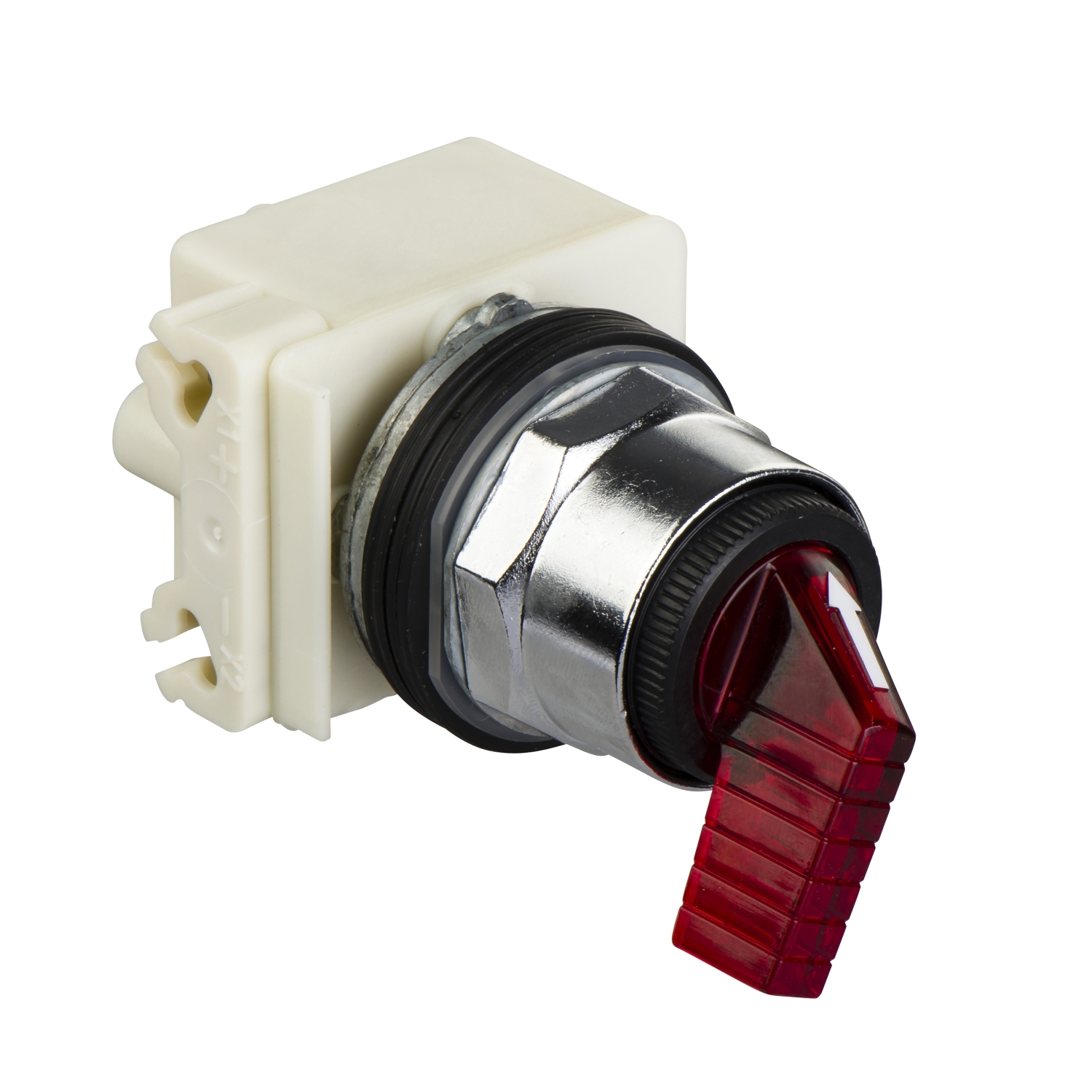

SELECTOR SWITCH OPERATOR 30MM T-K
9001K42J1R
| Device short name | K |
|---|---|
| Enclosure type | Dust and oil resistant weatherproof enclosure indoor/outdoor |
| Mounting diameter | 1.2 in (30 mm) |
| Bezel material | Chromium plated metal |
|---|---|
| Contacts type and composition | Without contact block |
| Light block supply | Via transformer 120 V AC 50/60 Hz Via transformer 110 V AC 50/60 Hz |
| Operator position information | 3 positions |
| Operator profile | Standard knob |
| Operator profile | 1 projecting push-button |
| Type of operator | Maintained |
| NEMA Degree of Protection | NEMA 1/2/3/3R/4/6/12/13 |
|---|---|
| Product Certifications | CE UL listed file E42259 CCN NKCR CSA LR24590 class 3211 03 |
| Category | US10CS121426 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 00785901856610 |
| Returnability | No |
| Country of origin | MX |
| Warranty | 18 months |
|---|
