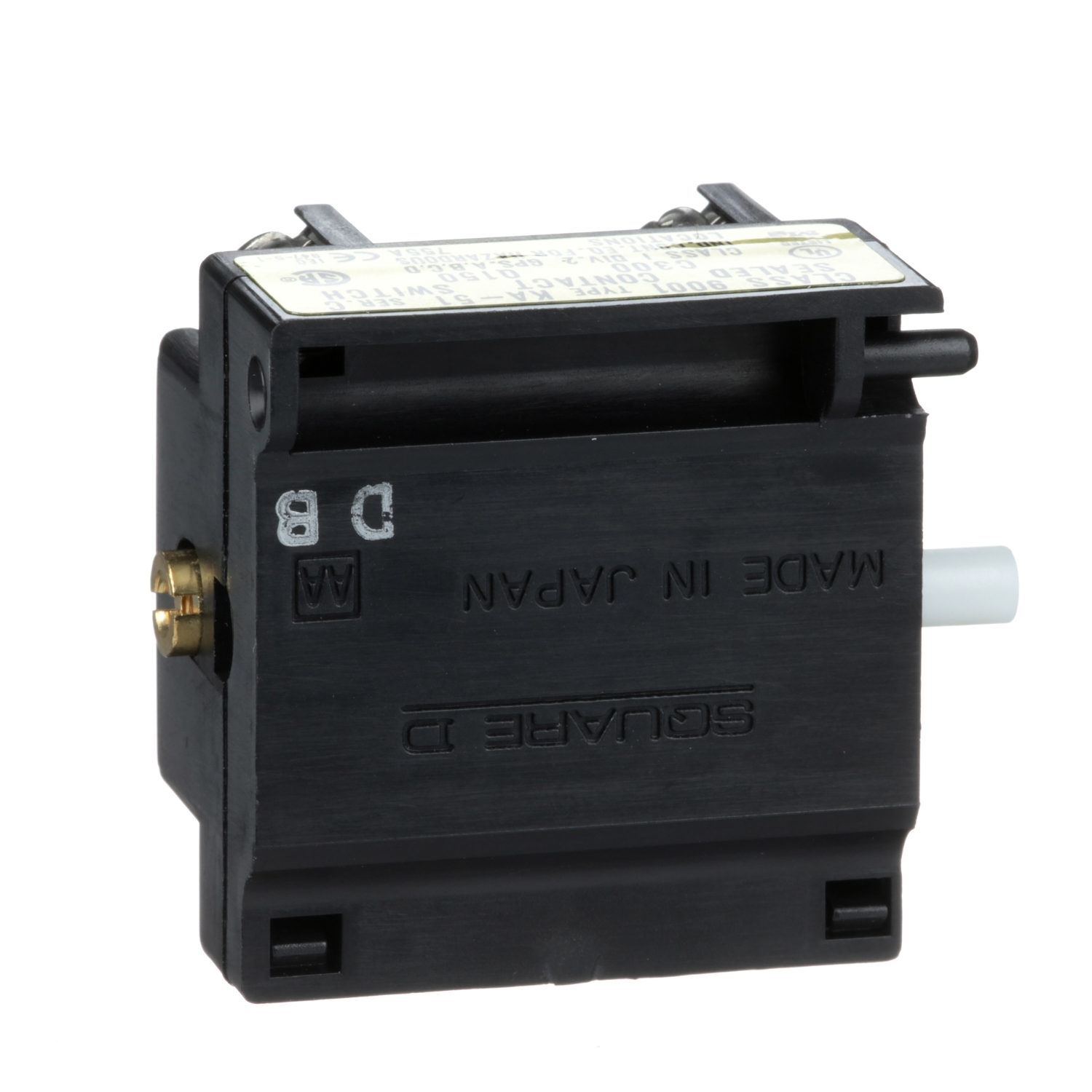

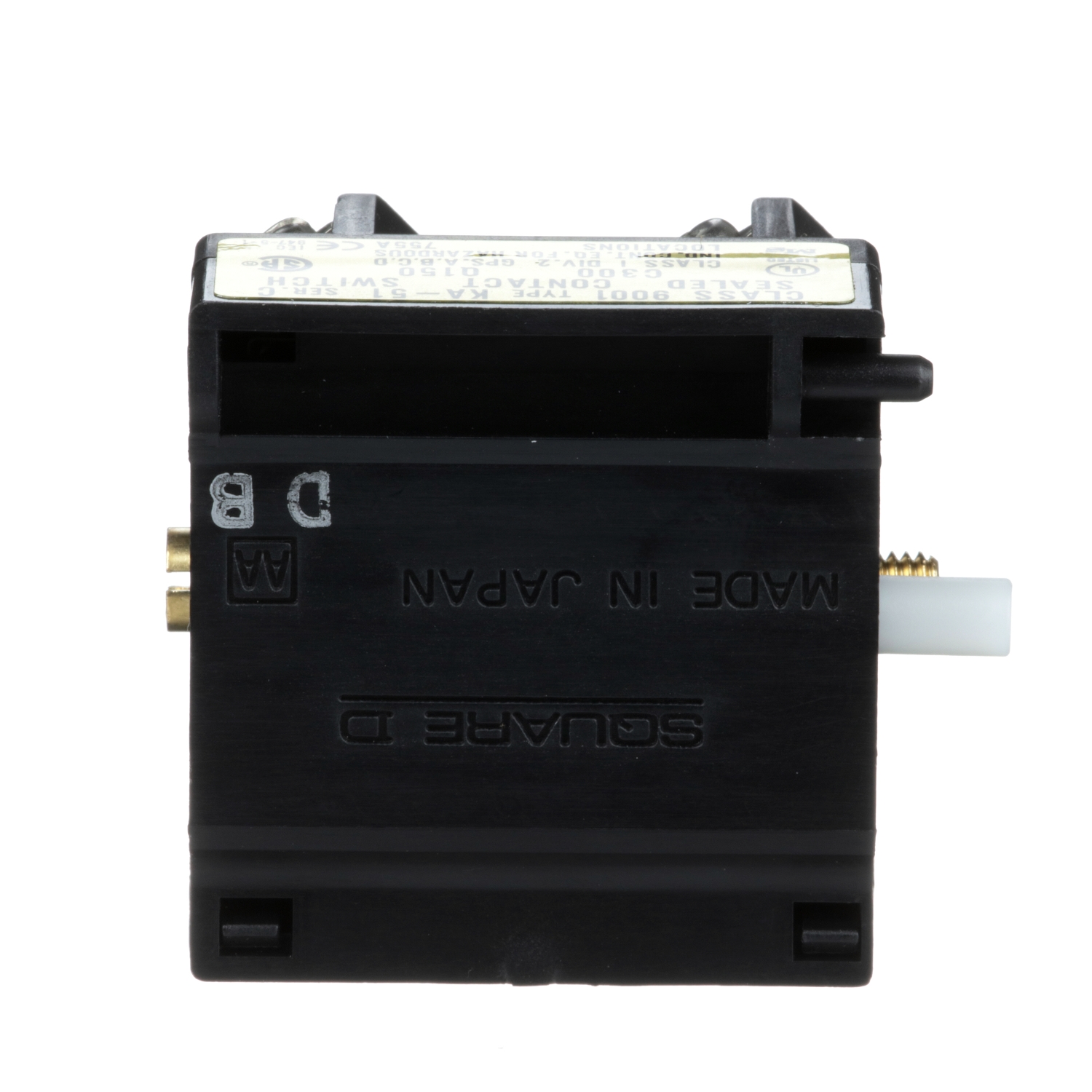

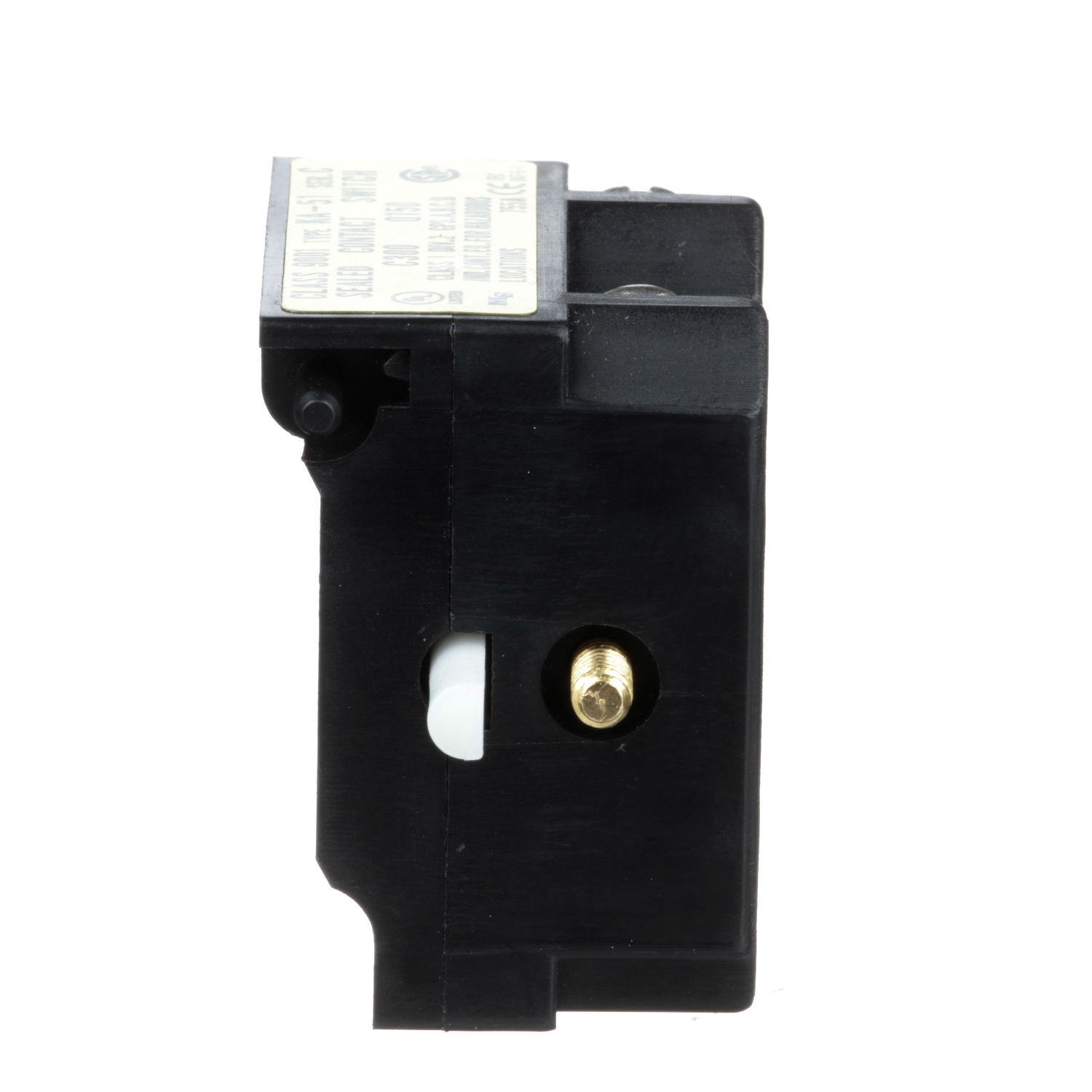

9001KA51, 30mm Push Button, Types K, SK or KX, power reed contact block, 1 NO and 1 NC

MXN $3,934.00 - (IVA Incluido) + Envío

180 disponibles

30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.

Comprar Ahora
SKU: 9001KA51

30mm Push Button, Types K, SK or KX, power reed contact block, 1 NO and 1 NC

9001KA51

Main
Range of Product Harmony 9001K
Harmony 9001SK
Product or Component Type Contact block
Device short name 9001K
Contacts type and composition 1 C/O
Complementary
Net Weight 0.099 lb(US) (0.045 kg)
Contact operation Power reed
Hermetically sealed
Contacts usage Hermetically sealed contacts
Positive opening Without
Connections – terminals Screw clamp terminals, 1 x 0.22…2 x 2.5 mm² IEC 60947-1
Tightening torque 7.08 lbf.in (0.8 N.m) IEC 60947-1
Shape of screw head Cross slotted
Short-circuit protection 10 A cartridge fuse IEC 60947-5-1
[Ith] conventional free air thermal current 10 A
[Ui] rated insulation voltage 250 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage 2.5 kV IEC 60947-1
[Ie] rated operational current 3 A 240 V, AC-15, A600-Q600 NEMA
0.55 A 125 V, DC-13, A600-Q600 NEMA
[Icm] rated short-circuit making capacity 12 kA 600 V AC-15, 7200 VA
15 kA 480 V AC-15, 7200 VA
30 kA 240 V AC-15, 7200 VA
60 kA 120 V AC-15, 7200 VA
0.55 kA 125 V DC-13
0.1 kA 600 V DC-13
0.27 kA 250 V DC-13
Rated breaking capacity 3 kA 240 V AC-15, 720 VA
6 kA 120 V AC-15, 720 VA
1.2 kA 600 V AC-15, 720 VA
1.5 kA 480 V AC-15, 720 VA
0.1 kA 600 V DC-13
0.27 kA 250 V DC-13
0.55 kA 125 V DC-13
[Us] rated supply voltage 240 V
Connections – Terminals Screw-clamp terminals
Environment
protective treatment TC
Ambient Air Temperature for Storage -40.0000000000…158.0000000000 °F (-40…70 °C)
Ambient Air Temperature for Operation -13.0000000000…158.0000000000 °F (-25…70 °C)
Electrical shock protection class Class II IEC 61140
Standards UL 508
IEC 60947-5-1
IEC 60947-5-4
JIS C 852
JIS C 4520
CSA C22.2 No 14
IEC 60947-1
UL 60947-5-1
Product Certifications NEMA
UL 508
Vibration resistance 7 gn 2…500 Hz)IEC 60068-2-6
Shock resistance 50 gn IEC 60068-2-27
Ordering and shipping details
Category US10CS121434
Discount Schedule 0CS1
GTIN 785901827498
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1.1 in (2.8 cm)
Package 1 Width 1.7 in (4.3 cm)
Package 1 Length 1.8 in (4.6 cm)
Package 1 Weight 1.6 oz (45.4 g)
Unit Type of Package 2 S01
Number of Units in Package 2 29
Package 2 Height 5.9 in (15.0 cm)
Package 2 Width 5.9 in (15.0 cm)
Package 2 Length 15.7 in (40.0 cm)
Package 2 Weight 3.565 lb(US) (1.617 kg)
Contractual warranty
Warranty 18 months
Peso 0.045 kg
Dimensiones 4.3 × 4.6 × 2.8 cm
Marcas

Schneider Electric

Marca

Schneider Electric

Product Datasheet
Instruction Sheet
Catalog
Technical Drawing
