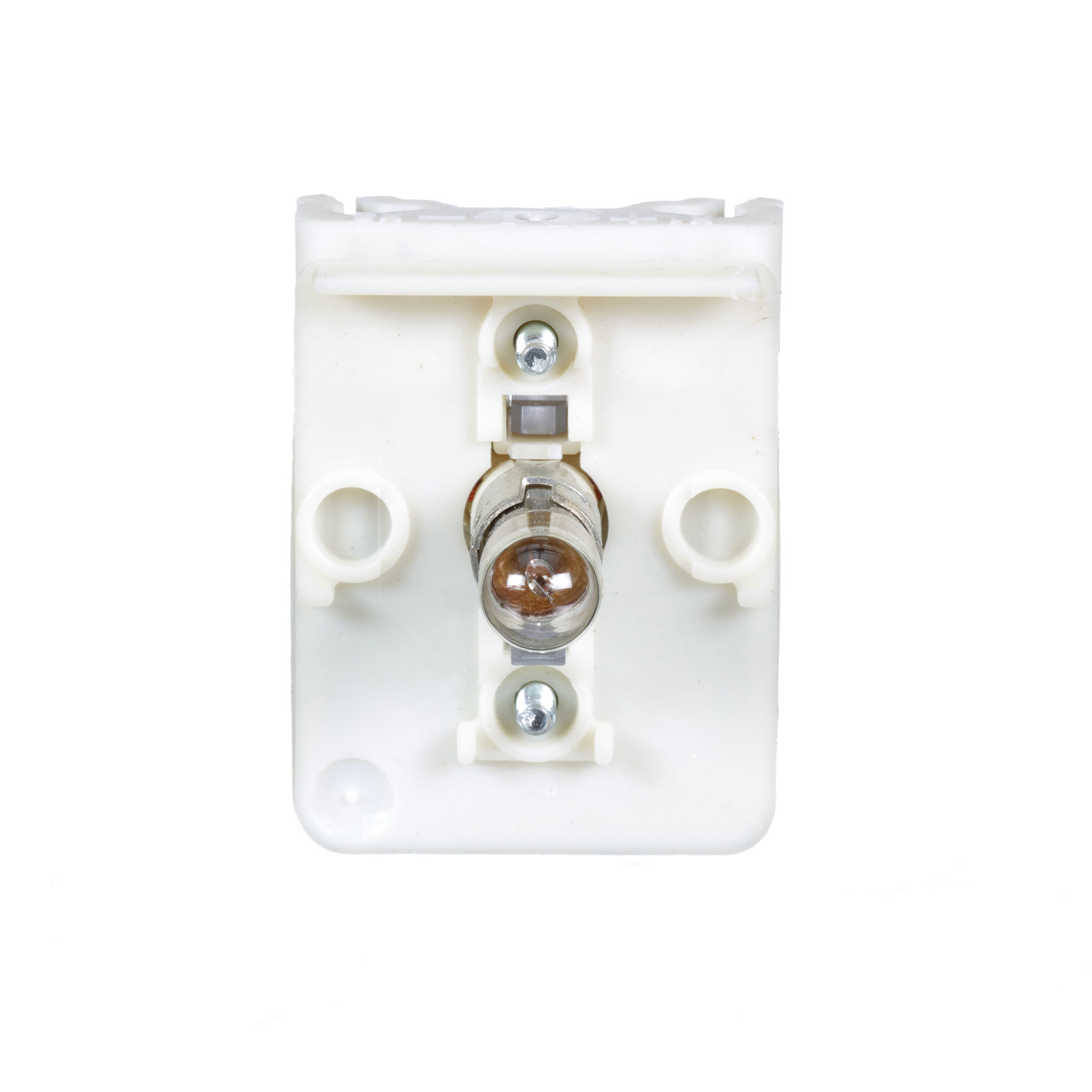

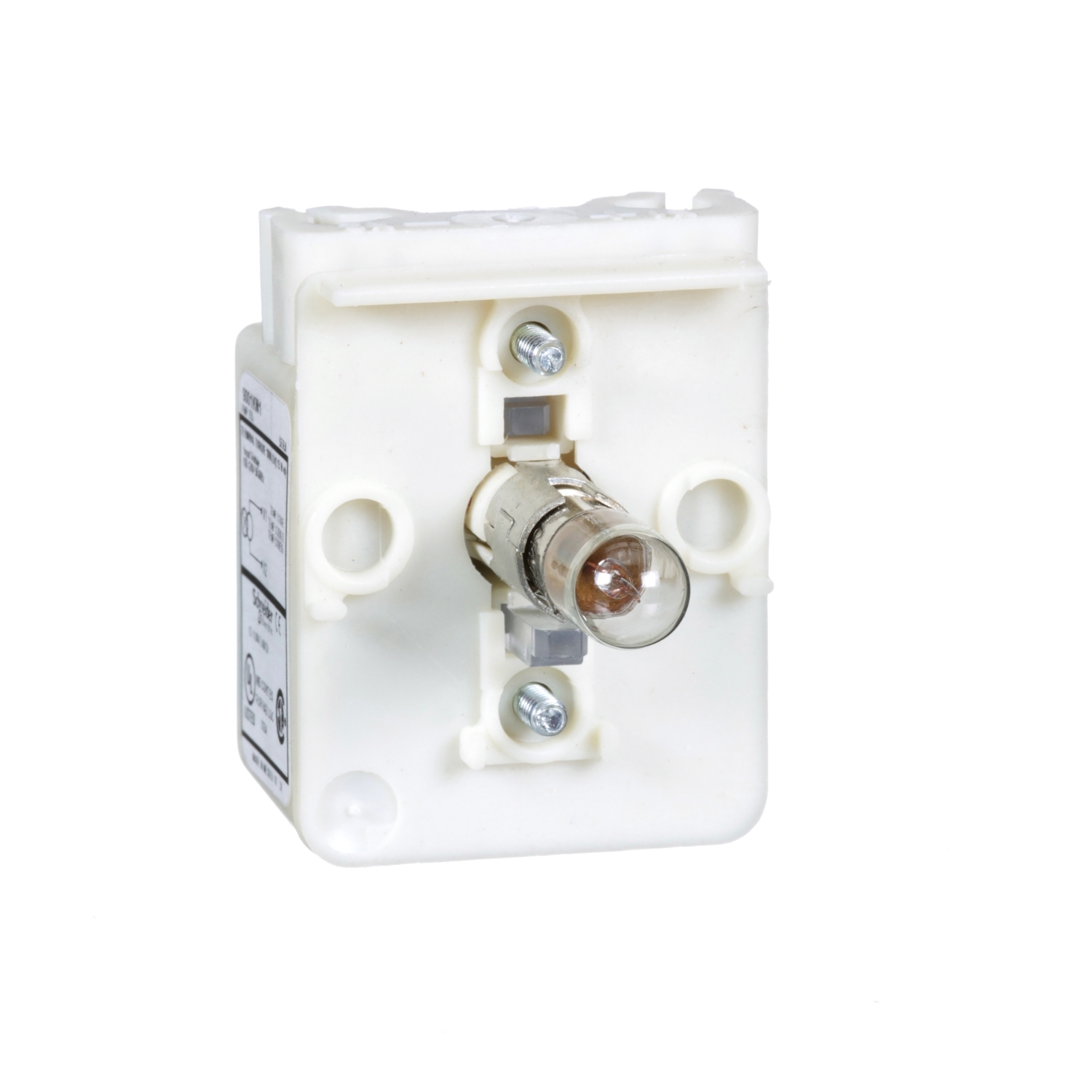

30mm Push Button, Types K, SK or KX, light module, transformer, 110/120 VAC
9001KM1
Range of Product | Harmony 9001K Harmony 9001SK |
---|---|
Product or Component Type | Light block |
Device short name | 9001K |
Bulb base | BA 9s |
Light block supply | Direct via integral transformer 6 V |
Net Weight | 0.317 lb(US) (0.144 kg) |
---|---|
Light source | Incandescent bulb |
[Us] rated supply voltage | 120 V AC |
[Us] rated supply voltage | 110…120 V |
Light block supply | Via integral transformer |
Supply frequency | 50…60 Hz |
Size | 30 mm |
protective treatment | TC |
---|---|
Ambient Air Temperature for Storage | -40.0000000000…158.0000000000 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -13.0000000000…158.0000000000 °F (-25…70 °C) |
IP degree of protection | IP20 IEC 60529 |
Standards | IEC 60947-5-4 IEC 60947-5-1 JIS C 4520 CSA C22.2 No 14 IEC 60947-1 UL 508 JIS C 852 |
Product Certifications | UL 508 NEMA |
Electrical shock protection class | Class II IEC 61140 |
Vibration resistance | 7 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 50 gn IEC 60068-2-27 |
Category | US10CS121435 |
---|---|
Discount Schedule | 0CS1 |
GTIN | 785901725237 |
Returnability | Yes |
Country of origin | MX |
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 1.800 in (4.572 cm) |
Package 1 Width | 2.200 in (5.588 cm) |
Package 1 Length | 3.700 in (9.398 cm) |
Package 1 Weight | 5.280 oz (149.686 g) |
Unit Type of Package 2 | CAR |
Number of Units in Package 2 | 24 |
Package 2 Height | 5.9 in (15.0 cm) |
Package 2 Width | 15.7 in (40.0 cm) |
Package 2 Length | 9.4 in (24.0 cm) |
Package 2 Weight | 8.433 lb(US) (3.825 kg) |
Warranty | 18 months |
---|
