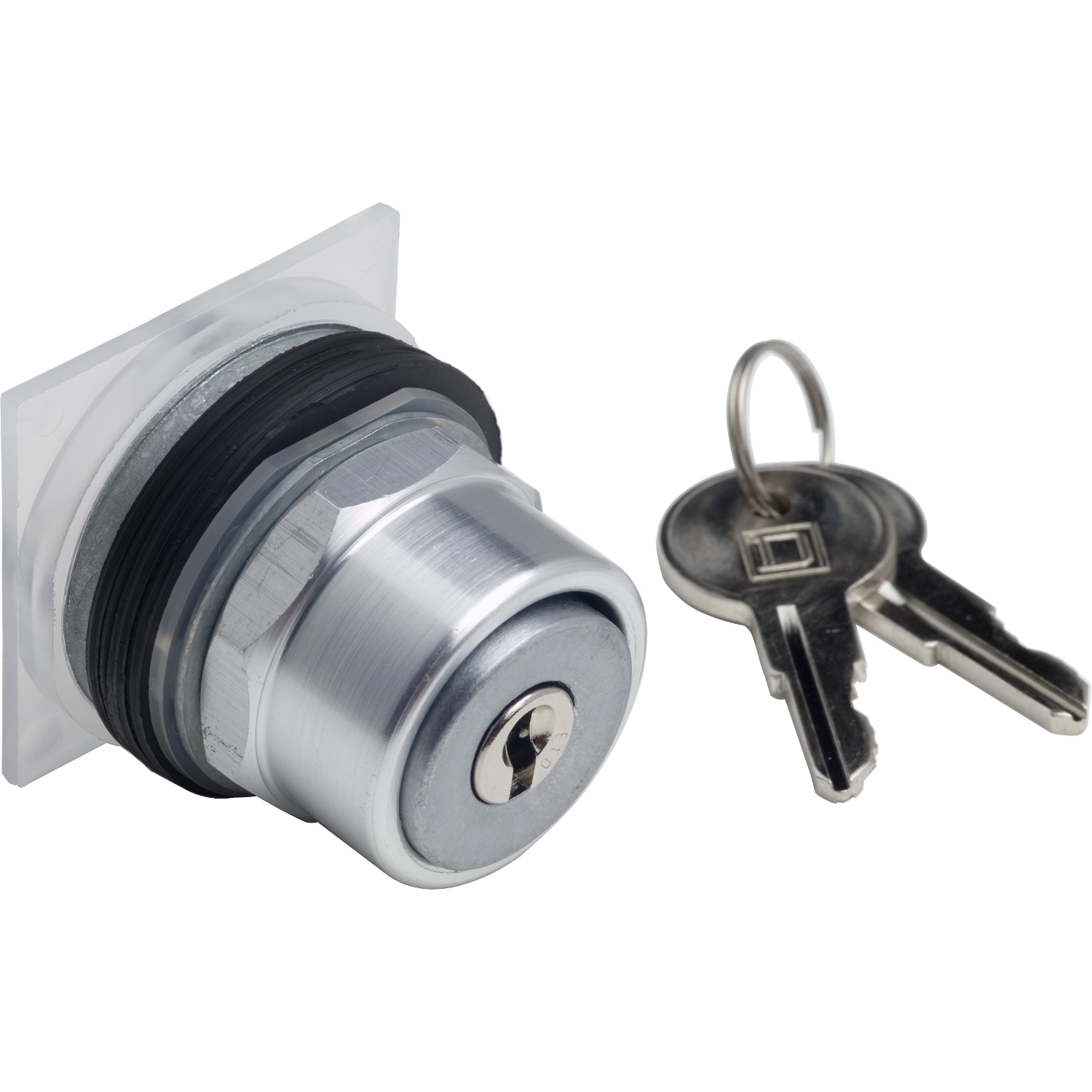

9001KR131, Head for key operated pushbutton, Harmony 9001K, metal, key switch, 30mm, key E10, extended position, stay put

MXN $2,829.00 - (IVA Incluido) + Envío

30 disponibles

This flush push-button with full guard provides an ergonomic interface for controlling your machines Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13)

Comprar Ahora
SKU: 9001KR131

Head for key operated pushbutton, Harmony 9001K, metal, key switch, 30mm, key E10, extended position, stay put

9001KR131

Main
Range of Product Harmony 9001K
Product or Component Type Head for key-operated pushbutton
Device short name 9001K
Operator profile flush
Complementary
Mounting diameter 1.2 in (30 mm)
Shape of signaling unit head Round
Type of operator spring return
Key number E10
Bezel material Metal
Operator profile Key switch
Type of operator Stay put
Operator position information Extended position
Contacts type and composition Without contact block
Ordering and shipping details
Category US10CS121426
Discount Schedule 0CS1
GTIN 785901260493
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 2.0000000000 in (5.08 cm)
Package 1 Width 2.300 in (5.842 cm)
Package 1 Length 2.800 in (7.112 cm)
Package 1 Weight 6.240 oz (176.901 g)
Contractual warranty
Warranty 18 months
Peso 0.177 kg
Dimensiones 5.8 × 7.1 × 5.1 cm
Marcas

Schneider Electric

Marca

Schneider Electric

Product Datasheet
Instruction Sheet
Technical Drawing
