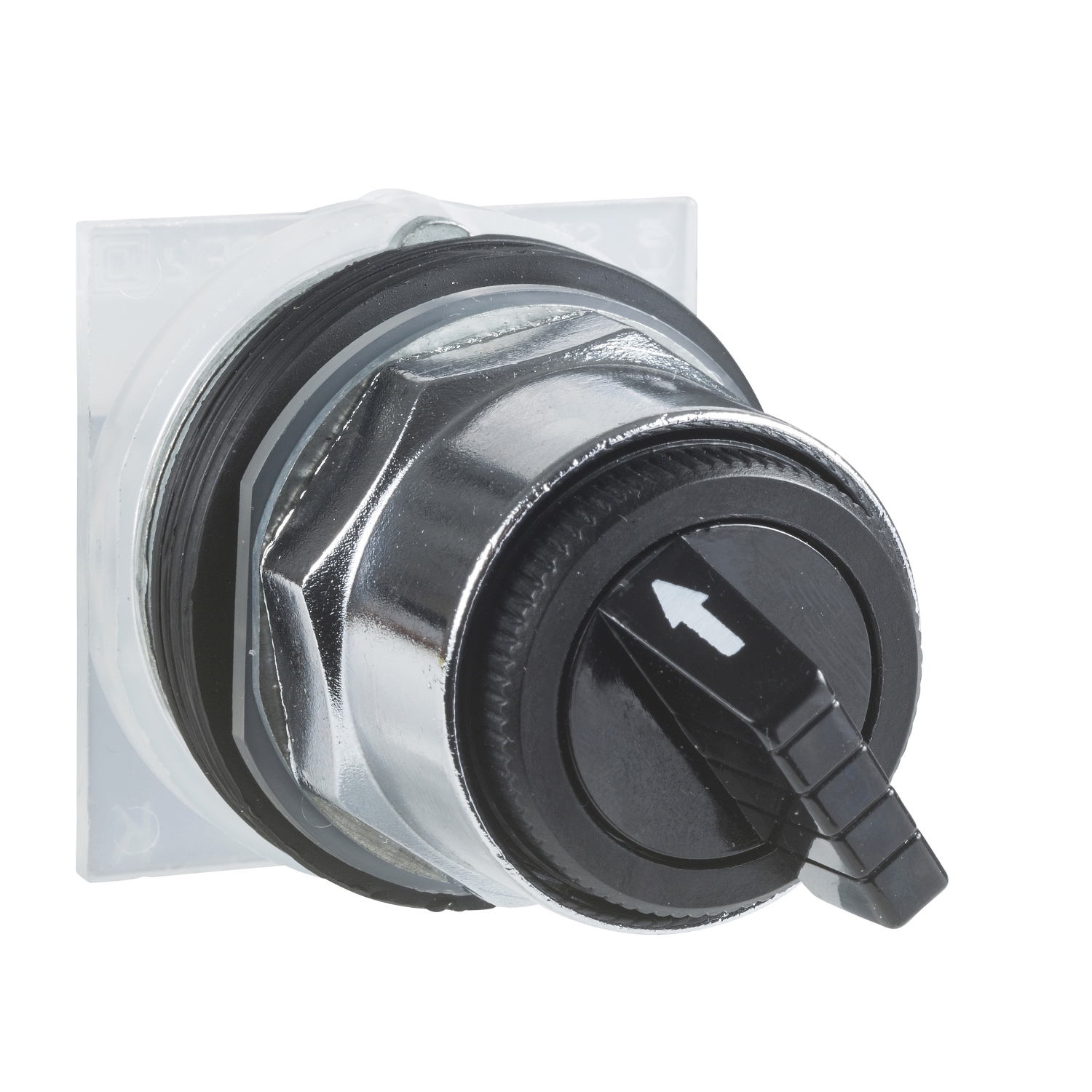

Selector switch head, Harmony 9001K, metal, standard handle, black, 30mm, 3 positions, spring return left to center
9001KS62B
Range of Product | Harmony 9001K |
---|---|
Product or Component Type | Head for selector switch |
Device short name | K |
Type of operator | spring return |
Operator profile | Black standard knob |
Bezel material | Metal |
---|---|
Mounting diameter | 1.2 in (30 mm) |
Operator position information | 3 positions |
Contacts type and composition | Without contact block |
device presentation | Basic element |
Cap/operator or lens colour | Black |
Operator profile | Standard handle |
Type of operator | Spring return |
Size | 30 mm |
Return | Left to centre |
Cam profile | 2 |
NEMA degree of protection | NEMA 1/2/3/3R/4/6/12/13 |
---|---|
Product Certifications | CSA LR24590 class 3211 03 CE UL listed file E42259 CCN NKCR |
Category | US10CS121426 |
---|---|
Discount Schedule | 0CS1 |
GTIN | 785901820741 |
Returnability | Yes |
Country of origin | MX |
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 7.620 in (19.355 cm) |
Package 1 Width | 3.0000000000 in (7.62 cm) |
Package 1 Length | 19.355 in (49.161 cm) |
Package 1 Weight | 4.32 oz (122.47 g) |
Warranty | 18 months |
---|
