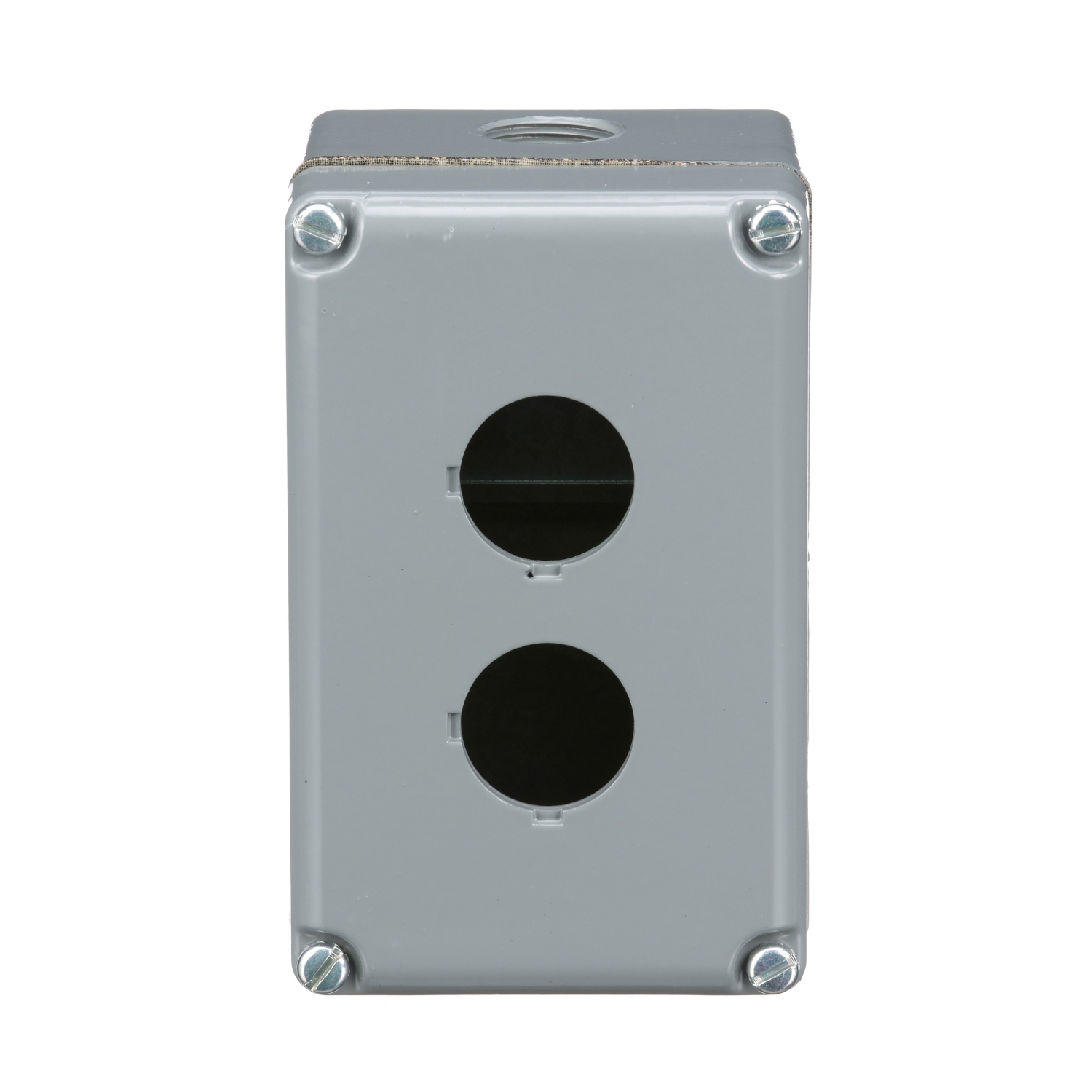

30mm Push Button, Types K or SK, empty push button enclosure, cast aluminium, two 30 mm holes, NEMA 4 and 13
9001KY2
Range of Product | Harmony 9001SK Harmony 9001K |
---|---|
Product or Component Type | Empty enclosure |
Device short name | 9001K |
Number of cut-out | 2 cut-outs |
Cable entry | 1 entry tapped for 3/4” cable gland |
product destination | For Ø 30 mm control and signalling units |
---|---|
Material | Aluminium |
Net Weight | 2.82 lb(US) (1.28 kg) |
protective treatment | TH |
---|---|
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Overvoltage category | II IEC 61140 |
NEMA degree of protection | NEMA 1 NEMA 12 NEMA 13 NEMA 3 NEMA 4 NEMA 6 |
Category | US10CS121426 |
---|---|
Discount Schedule | 0CS1 |
GTIN | 785901874430 |
Returnability | Yes |
Country of origin | MX |
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 3.800 in (9.652 cm) |
Package 1 Width | 4.0000000000 in (10.16 cm) |
Package 1 Length | 6.100 in (15.494 cm) |
Package 1 Weight | 3.170 lb(US) (1.438 kg) |
Unit Type of Package 2 | S03 |
Number of Units in Package 2 | 10 |
Package 2 Height | 11.8 in (30.0 cm) |
Package 2 Width | 11.8 in (30.0 cm) |
Package 2 Length | 15.7 in (40.0 cm) |
Package 2 Weight | 33.363 lb(US) (15.133 kg) |
Unit Type of Package 3 | P06 |
Number of Units in Package 3 | 80 |
Package 3 Height | 30.3 in (77.0 cm) |
Package 3 Width | 31.5 in (80.0 cm) |
Package 3 Length | 23.6 in (60.0 cm) |
Package 3 Weight | 273.06 lb(US) (123.86 kg) |
Warranty | 18 months |
---|
