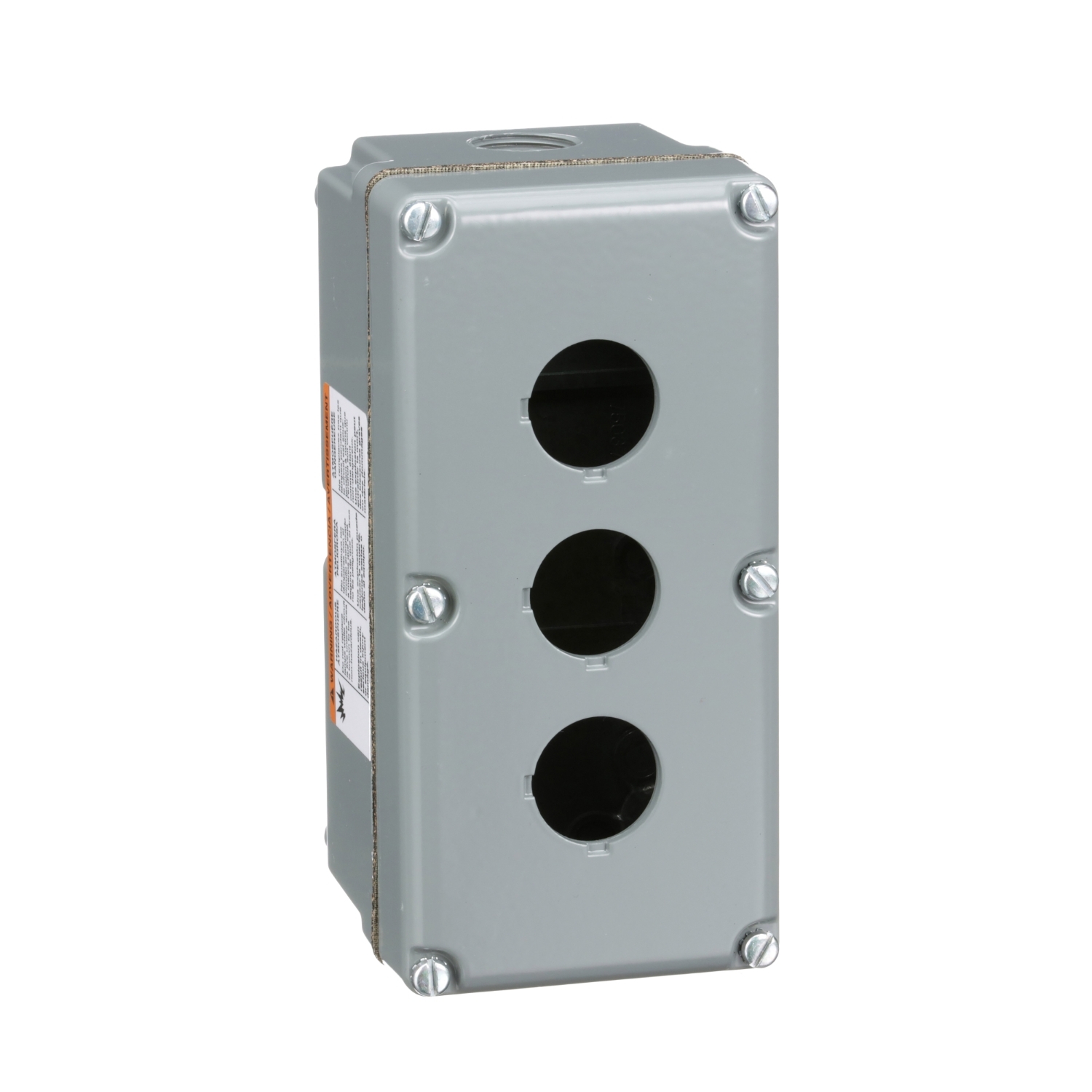

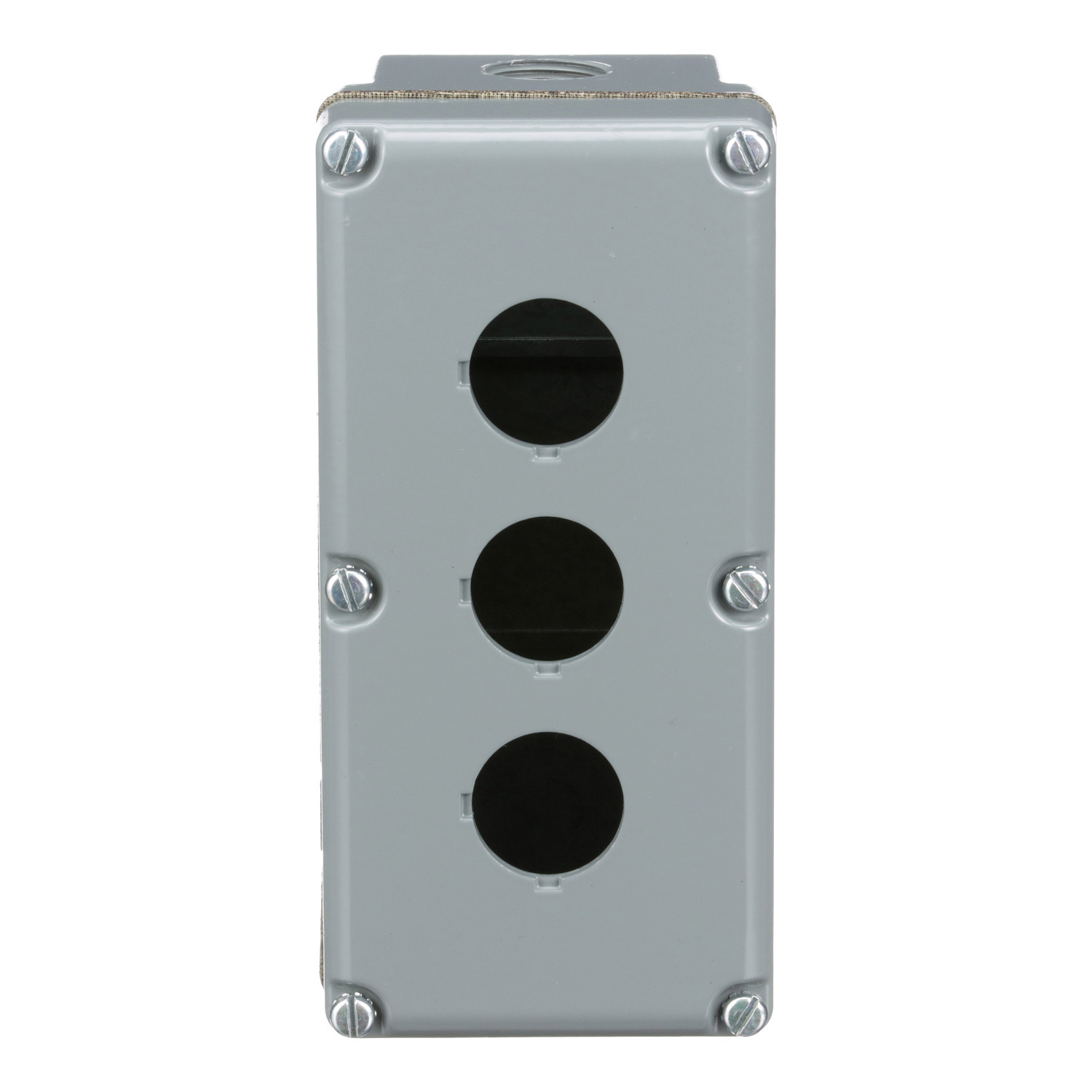

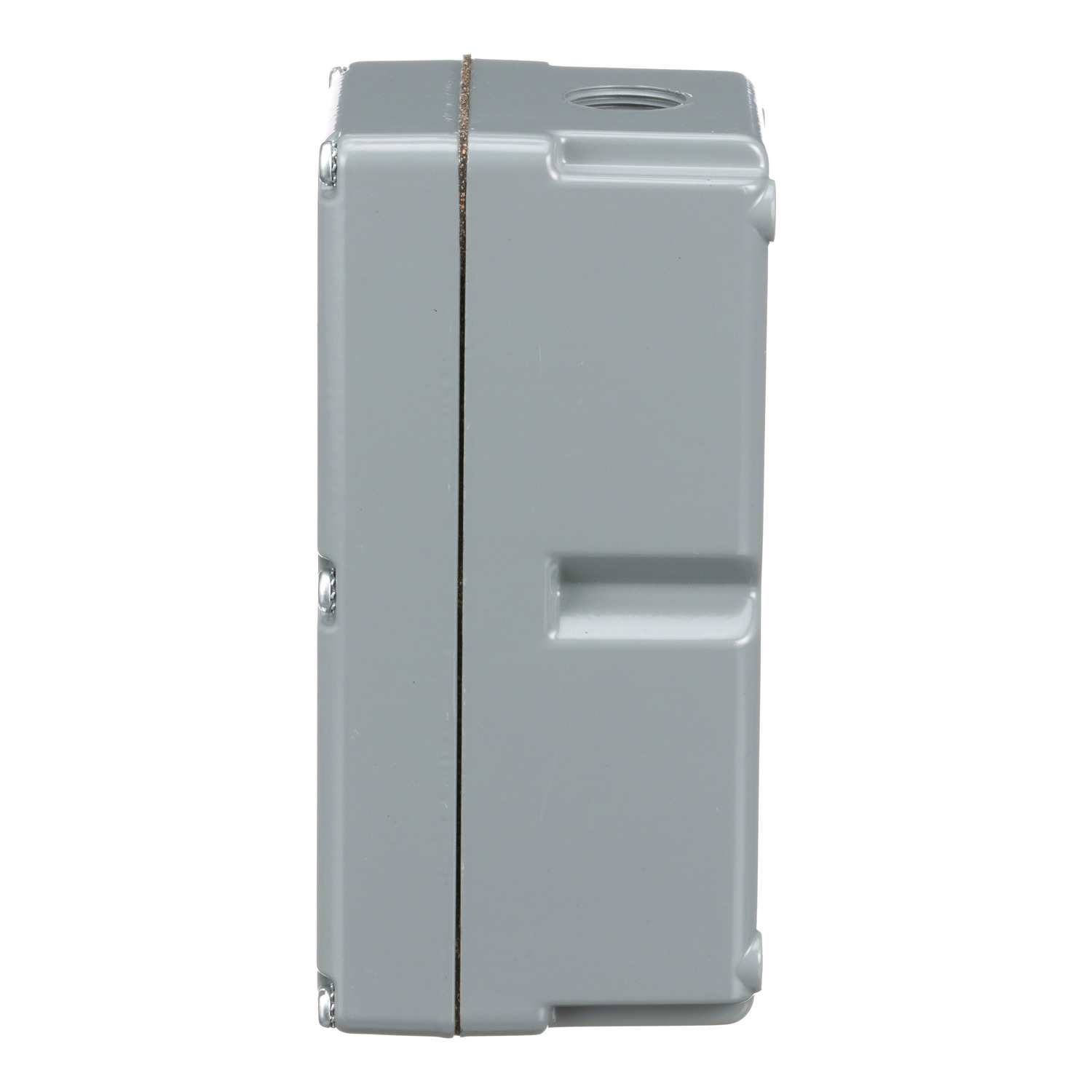

30mm Push Button, Types K or SK, empty push button enclosure, cast aluminium, three 30 mm holes, NEMA 4 and 13
9001KY3
Range of Product | Harmony 9001SK Harmony 9001K |
---|---|
Product or Component Type | Empty enclosure |
Device short name | 9001K |
Number of cut-out | 3 cut-outs |
Cable entry | 1 entry tapped for 3/4” cable gland |
product destination | For Ø 30 mm control and signalling units |
---|---|
Material | Aluminium |
Net Weight | 3.44 lb(US) (1.56 kg) |
protective treatment | TH |
---|---|
Ambient Air Temperature for Storage | -40.0000000000…158.0000000000 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -13.0000000000…158.0000000000 °F (-25…70 °C) |
Overvoltage category | II IEC 61140 |
NEMA degree of protection | NEMA 1 NEMA 12 NEMA 13 NEMA 3 NEMA 4 NEMA 6 |
Category | US10CS121426 |
---|---|
Discount Schedule | 0CS1 |
GTIN | 785901874508 |
Returnability | Yes |
Country of origin | MX |
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 4.100 in (10.414 cm) |
Package 1 Width | 4.0000000000 in (10.16 cm) |
Package 1 Length | 8.0000000000 in (20.32 cm) |
Package 1 Weight | 3.600 lb(US) (1.633 kg) |
Unit Type of Package 2 | S03 |
Number of Units in Package 2 | 6 |
Package 2 Height | 11.8 in (30 cm) |
Package 2 Width | 11.8 in (30 cm) |
Package 2 Length | 15.7 in (40 cm) |
Package 2 Weight | 23.100 lb(US) (10.478 kg) |
Warranty | 18 months |
---|
