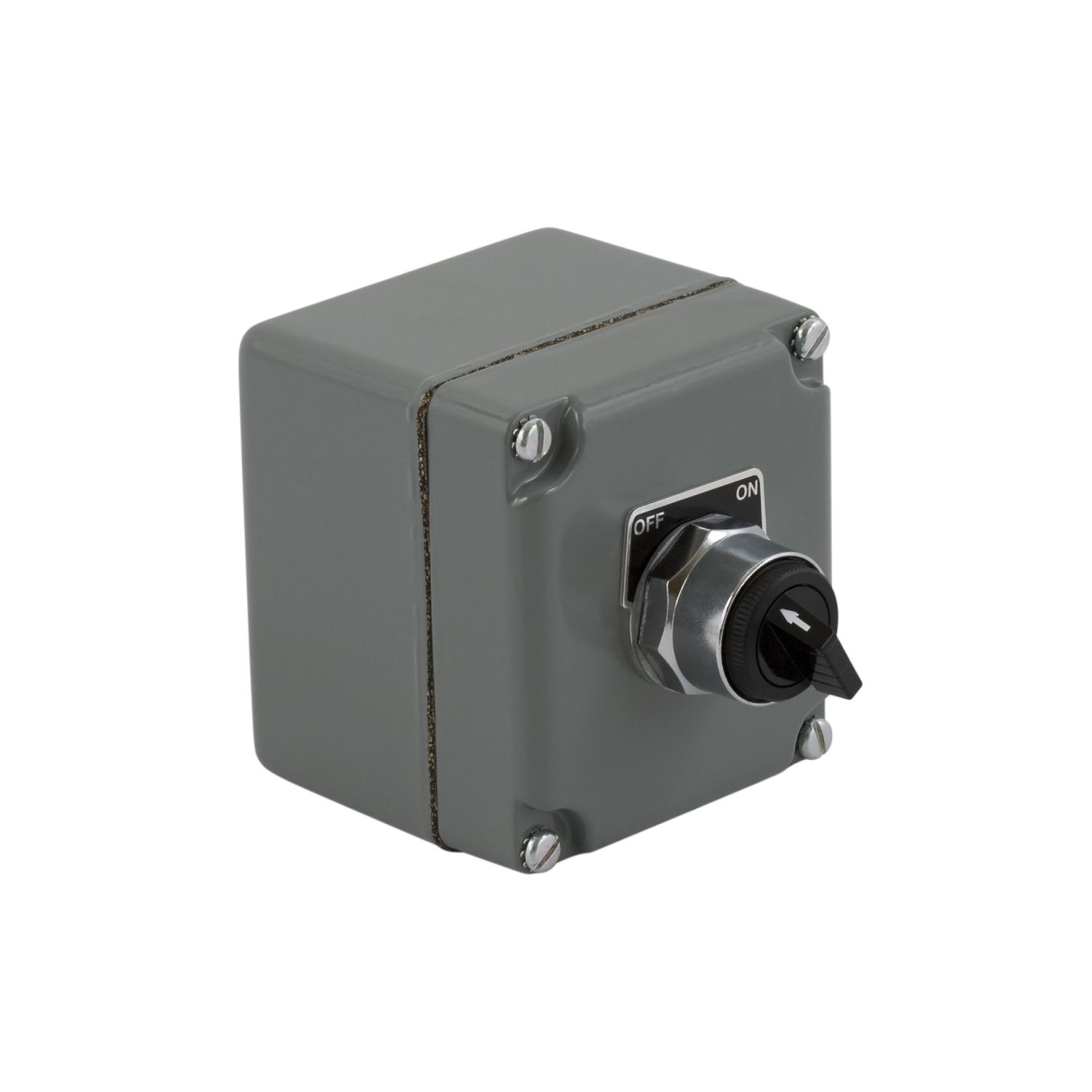

CONTROL STATION + OPERATORS
9001KYK11
| Range of Product | Harmony 9001KY |
|---|---|
| Product or Component Type | Control station |
| Device short name | 9001KY |
| Provided equipment | Label plate START |
| Electrical circuit type | Motor |
| Contact block name | KA1 |
| Product Specific Application | For hoisting and mechanical handling applications |
| Level or class | Class II Division 2 Group G Class III |
| Enclosure/cubicle description | Wall-mounted enclosure 1 cut-out Ø 30 mm |
|---|---|
| Enclosure material | Die cast zinc alloy Gray |
| Type of Installation | Indoor/outdoor |
| Control station composition | 1 push-button momentary 1 NO + 1 NC |
| mechanical interlocking | Without mechanical interlock |
| Connector Type | Screw clamp connector |
| Connections – terminals | Direct connection AWG 2) solid stranded Direct connection AWG 12) solid stranded Direct connection AWG 24) solid stranded |
| [Ue] rated operational voltage | 300 V |
| [Ie] rated operational current AC | 10 A |
| NEMA Degree of Protection | NEMA 1 NEMA 13 NEMA 3 NEMA 4 |
|---|---|
| Environmental characteristic | Dust and oil resistant Resistant against immersion in water |
| Product Certifications | UL Listed |
| Ambient Air Temperature for Operation | -13.0000000000…140.0000000000 °F (-25…60 °C) |
| Ambient Air Temperature for Storage | -40.0000000000…158.0000000000 °F (-40…70 °C) |
| Category | US10CS121426 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 785901513377 |
| Returnability | No |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.700 in (32.258 cm) |
| Package 1 Width | 5.0000000000 in (12.7 cm) |
| Package 1 Length | 32.258 in (81.935 cm) |
| Package 1 Weight | 2.899 lb(US) (1.315 kg) |
| Warranty | 18 months |
|---|
