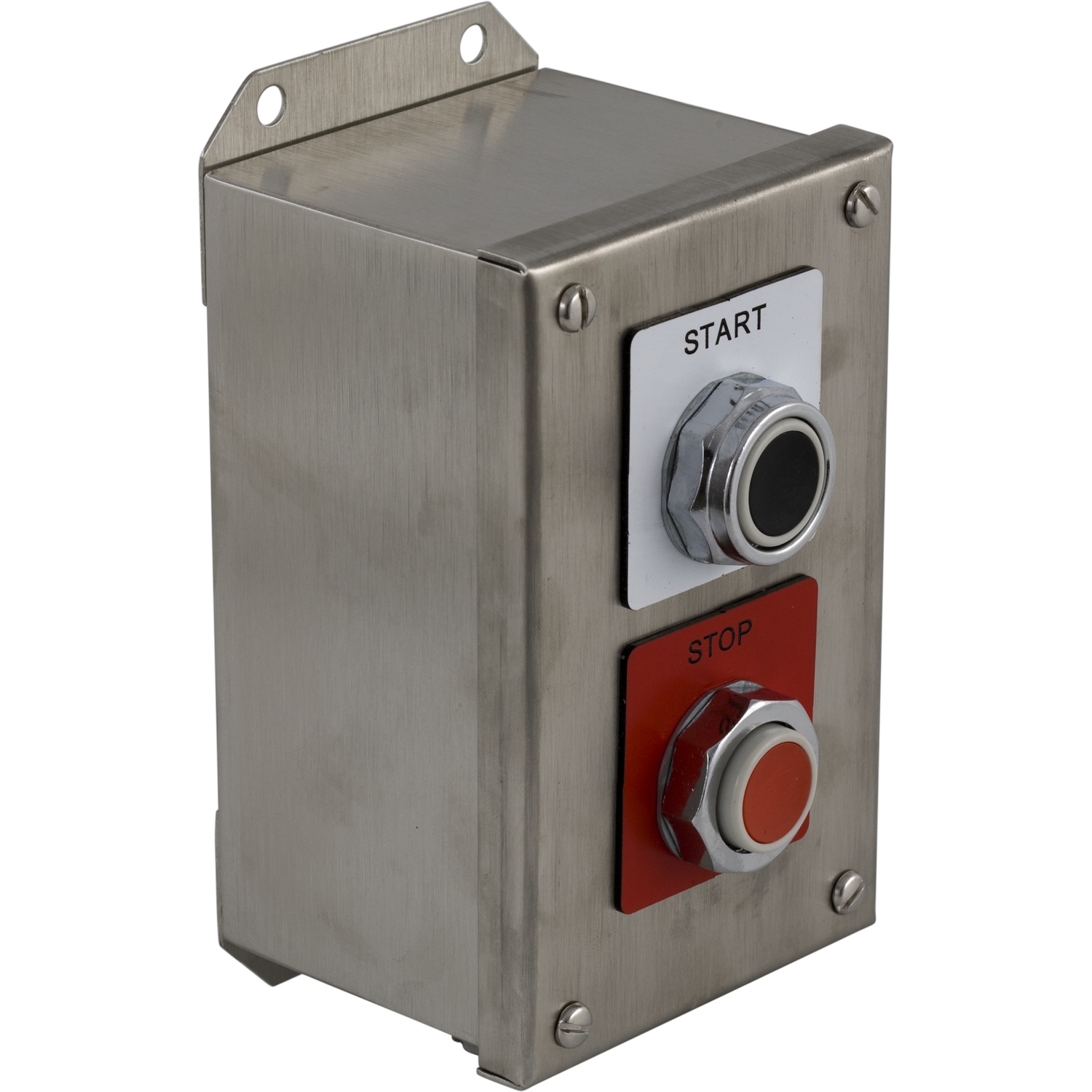

CONTROL STATION + OPERATORS
9001KYSS201
| Range of Product | Harmony 9001K |
|---|---|
| Product or Component Type | Complete control station |
| Device short name | KY |
| Provided equipment | Contact block Legend plate |
| Contact block name | KA1 |
| Enclosure/cubicle description | Surface mounting |
|---|---|
| Enclosure material | Stainless Steel |
| Type of Installation | Indoor/outdoor |
| Control station composition | 2 push-buttons 1 NO + 2 NC START-STOP |
| Connections – terminals | Screw-clamp terminals |
| [Ie] rated operational current AC | 10 A |
| NEMA Degree of Protection | NEMA 3/4/13 |
|---|
| Category | US10CS121426 |
|---|---|
| Discount Schedule | 0CS1 |
| GTIN | 785901040149 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.160 in (25.806 cm) |
| Package 1 Width | 4.0000000000 in (10.16 cm) |
| Package 1 Length | 25.806 in (65.548 cm) |
| Package 1 Weight | 3.620 lb(US) (1.642 kg) |
| Warranty | 18 months |
|---|
