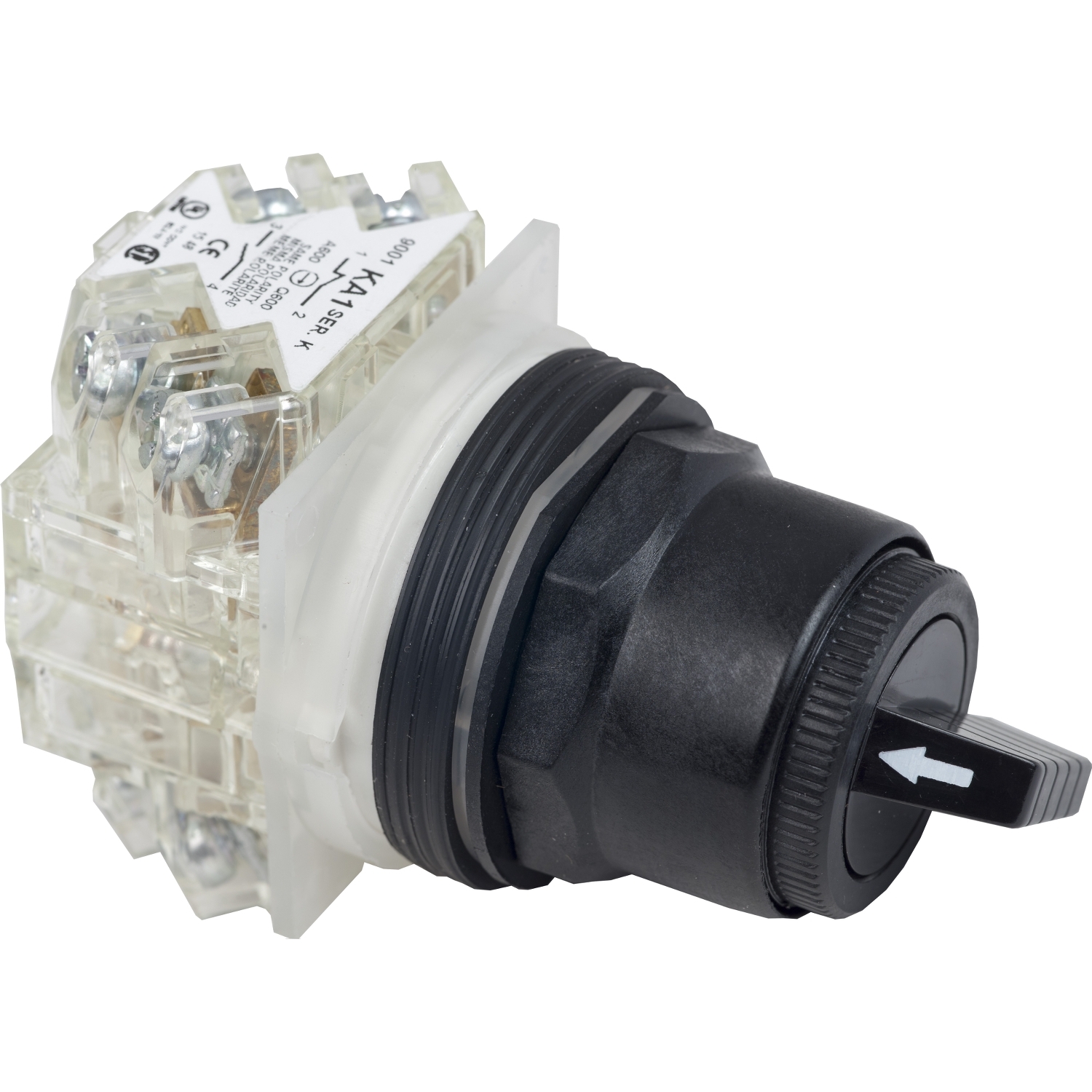

9001SKS11BH2, Selector switch, Harmony 9001SK, plastic, standard handle, black, 30mm, 2 positions, stay put, 2 C/O

MXN $1,252,799.00 - (IVA Incluido) + Envío

17 disponibles

This selector switch is part of the range of control and signaling units, Harmony 9001SK diameter 30mm plastic. It has a double insulated bezel. It is supplied with a black standard knob. Thanks to its double insulated bezel it is adapted for applications requiring a high resistance to corrosion. It is easily installed into a standard 30mm diameter panel cut-outs and its protection index is IP66. It features 2 positions maintained operator and is supplied with 2 x NO + 2 x NC contacts and screw clamp terminals. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Comprar Ahora
SKU: 9001SKS11BH2

Selector switch, Harmony 9001SK, plastic, standard handle, black, 30mm, 2 positions, stay put, 2 C/O

9001SKS11BH2

Main
Range of Product Harmony 9001SK
Product or Component Type Selector switch
Device short name 9001SK
Complementary
Bezel material Plastic
Mounting diameter 1.2 in (30 mm)
Operator position information 2 positions
Contacts type and composition 2 C/O
device presentation Complete product
Cap/operator or lens colour Black
Operator profile Standard handle
Type of operator Stay put
Size 30 mm
Cam profile 5
Environment
protective treatment TC
Ambient Air Temperature for Storage -40.0000000000…158.0000000000 °F (-40…70 °C)
Ambient Air Temperature for Operation -13.0000000000…158.0000000000 °F (-25…70 °C)
Electrical shock protection class Class II IEC 61140
IP degree of protection IP66 IEC 60529
NEMA degree of protection NEMA 1/2/3/3R/4/4X/6/12/13
Product Certifications CE
CSA LR24590 class 3211 03
UL listed file E42259 CCN NKCR
Ordering and shipping details
Category US10CS121429
Discount Schedule 0CS1
GTIN 785901043539
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1.900 in (4.826 cm)
Package 1 Width 2.100 in (5.334 cm)
Package 1 Length 3.700 in (9.398 cm)
Package 1 Weight 3.840 oz (108.862 g)
Contractual warranty
Warranty 18 months
Peso 0.109 kg
Dimensiones 5.3 × 9.4 × 4.8 cm
